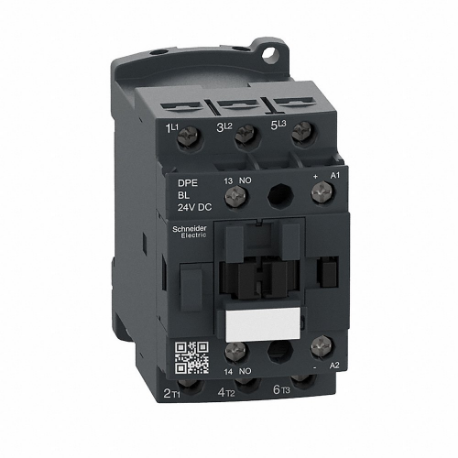

SCHNEIDER ELECTRIC DPE25BL Easy Tesys, 24 VDC Coil Volts, 25 A Full Load Amps-Inductive, 1No | CU2BLL

SCHNEIDER ELECTRIC DPE25BL Easy Tesys, 24 VDC Coil Volts, 25 A Full Load Amps-Inductive, 1No

Item: CU2BLL Model: DPE25BLCross Ref: 787P25
In Stock

Get it by Wednesday, Jun 11

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€74.34 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemIEC Magnetic Contactor
ApplicationMotor Control, Resistive Load
Aux. Contact Configuration1NO
Coil Volts24V DC
Depth3.39"
Embedded Surge SuppressorNo
FeaturesWithout Built-In Suppressor Module
Frequency50/60 Hz
Full Load Amps-inductive25A
Full Load Amps-resistive25A
Height3.03"
Horsepower @ Three Phase (600 Vac)15 hp
Horsepower @ Three Phase - 480v Ac10 hp
Hp @ 1 Phase - 120v1 hp
Hp @ 1 Phase - 240v3 hp
Hp @ 3 Phase - 208v5 hp
Hp @ 3 Phase - 240v5 hp
Hp @ 3 Phase - 480v10 hp
Hp @ 3 Phase - 575v15 hp
Impulse Withstand Voltage6 kV
Includes Auxiliary ContactsYes
Mounts OnPlate, Rail
Non-overlap Time1.5 ms
Number Of Auxillary Contacts1
Number Of Normally Open Main Contacts3
Number Of Poles3
Resistance PropertiesFire Resistant, Insulation Resistant
ReversibleNo
Terminal Connection TypeScrew Clamp Terminals
Tightening Torque1.7 N-m
Width1.77"
Full Load Current - Inductive25A
Full Load Current - Resistive25A
Horsepower @ Three Phase - 208v Ac5 hp
Horsepower @ Three Phase - 240v Ac5 hp
Horsepower @ Three Phase - 600v Ac15 hp
Integrated Surge SuppressionNo
Main Power Pole Contact Form3NO
Nema Enclosure RatingNo Enclosure
Overall Depth3.39"
Overall Height3.03"
Overall Width1.77"
StandardsCSA, CSA C22.2 NO 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL LISTED
Wire Termination TypeScrew Clamp

Shipping Info:

Ship weight (kg) 0.5823
Ship height (cm)7.7
Ship length (cm)8.61
Ship width (cm)4.5
Country of OriginID

Product Variants

ProductModelNumber Of PolesCoil VoltsHeightReversibleDepthHp @ 3 Phase - 240vHp @ 1 Phase - 240vEnclosure Nema RatingPrice
SCHNEIDER ELECTRIC LC1F630 IEC Magnetic Contactor 600VAC 630A | AJ2DNP 48N704 LC1F630-600V AC------€10,874.25
SCHNEIDER ELECTRIC LP1K1201BD IEC Magnetic Contactor 24V Coil 12A | AJ2DNQ 48N743 LP1K1201BD-24V------€161.51
SCHNEIDER ELECTRIC LP1K0601BD3 IEC Magnetic Contactor 24VDC Coil 6A | AJ2DNR 48N748 LP1K0601BD3324V DC58 mm-57 mm---€164.12
SCHNEIDER ELECTRIC LC1D50AF7 IEC Magnetic Contactor 110V Coil 50A | AJ2DNT 48N773 LC1D50AF73110V122 mm-120 mm15 hp7 1/2 hp-€462.13
SCHNEIDER ELECTRIC LC1D18E7 IEC Magnetic Contactor 48V Coil 18A | AJ2DNU 48N854 LC1D18E7348V77 mm-86 mm5 hp3 hp-€243.88
SCHNEIDER ELECTRIC LC1D18F7 IEC Magnetic Contactor 110V Coil 18A | AJ2DNV 48N855 LC1D18F7-110V------€234.95
SCHNEIDER ELECTRIC LC1D258F7 IEC Magnetic Contactor 110V Coil 25A | AJ2DNW 48N863 LC1D258F74110V4.13"No3.9"--No Enclosure€372.32
