EATON ECN1614AAB-R63/D | BJ3NYF

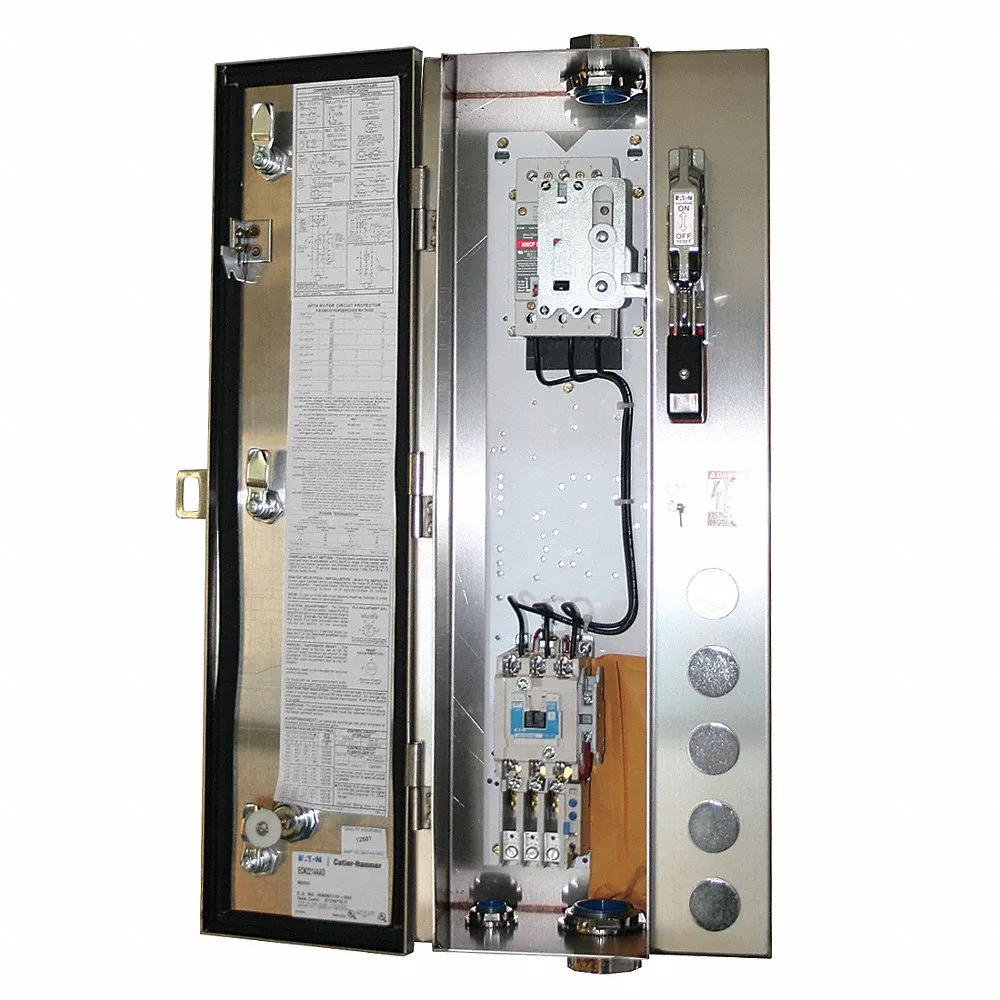

EATON ECN1614AAB-R63/D NEMA Combination Starter, Electronic, 110/120 VAC

Item: BJ3NYF Model: ECN1614AAB-R63/DCross Ref: 40Z720
In Stock

Get it by Tuesday, Jun 17

€3,808.15 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemNEMA Fusible Combination Starter
Auxiliary Contact Module Capacity4
Control TransformerNo
Control Transformer VoltageNot Applicable
Horsepower @ Single PhaseNot Rated
Horsepower @ Single Phase - 120v AcNot Rated
Horsepower @ Three Phase - 208v Ac7 1/2 hp
Horsepower @ Three Phase - 600v Ac10 hp
Hp @ 3 Phase - 240v7 1/2 hp
Hp @ 3 Phase - 480v10 hp
Includes Auxiliary ContactsYes
Includes Control TransformerNo
Max. Overload Relay Amps Setting45A
Minimum Overload Relay Current Setting9A
Mounting PostionHorizontal, Vertical
No. Of Auxillary Contacts1
No. Of Terminals3
Number Of Poles3
OperatorNo
Overall Depth30.7"
Overall Height11.1"
Overall Width12 1/5"
Overload Protection TypeElectronic
Phase3
Pilot LightNo
Resistance PropertiesImpact Resistant, Tamper Resistant
Short Circuit ProtectionCircuit Breaker
Terminal Connection TypeScrew Terminals
Thermal Unit CodeNot Applicable
Auxiliary Contact Form1NO
Electrical Operating Durability100000
Frequency50/60 Hz
Horsepower @ Single Phase - 240v AcNot Rated
Horsepower @ Three Phase - 240v Ac7 1/2 hp
Horsepower @ Three Phase - 480v Ac10 hp
Includes Pilot LightNo
Ip RatingIP20
Max Current (ac)27A
Maximum Overload Relay Current Setting45A
Maximum Voltage Rating600V AC
Mounting StyleThrough Panel
Nema Enclosure Rating4X
Nema Size1
Nominal Coil (secondary) Voltage120V AC
Number Of Terminals3
Operator TypeNo Operator
Reversing CapabilityNon-Reversing
SeriesFreedom Series
StandardsUL E1491
Starter StyleNEMA
Thermal Units RequiredNone (Not Applicable to Electronic Overloads)
Trip ClassClass 10, Class 20, Class 30
Ul Fuse ClassR
Wire Termination TypeScrew

Shipping Info:

Ship weight (kg) 21.6
Ship height (cm)28.19
Ship length (cm)77.98
Ship width (cm)30.99
Country of OriginUS

Product Variants

ProductModelShort Circuit ProtectionHp @ 3 Phase - 480vHp @ 3 Phase - 240vOverall HeightControl TransformerControl Transformer VoltageHeightPrice
EATON ECN1604AAC-R63/B | BJ3NRQ ECN1604AAC-R63/BFusible Disconnect5 hp3 hp11.1"NoNot Applicable-€3,119.49
EATON ECN1604AAC-R63/C | BJ3NRW ECN1604AAC-R63/CCircuit Breaker5 hp3 hp11.1"NoNot Applicable11.1"€3,282.26
EATON ECN1608AAC-R63/C | BJ3NTF ECN1608AAC-R63/CCircuit Breaker5 hp3 hp11.1"NoNot Applicable-€2,017.99
EATON ECN1614AAC-R63/D | BJ3NXT ECN1614AAC-R63/DCircuit Breaker10 hp7 1/2 hp11.1"NoNot Applicable11.1"€3,436.18
EATON ECN1608BAB-R63/B Fusible Combination Starter, 18A, 220/240V AC Coil Voltage | CJ2WUL ECN1608BAB-R63/B--------
RFQ
EATON ECN1604DAC-R63/C Fusible Combination Starter, 18A, 550/575V AC Coil Voltage | CJ2WVD ECN1604DAC-R63/C--------
RFQ
EATON ECN1608EAB-R63/B Fusible Combination Starter, 18A, 208V AC Coil Voltage | CJ2WVE ECN1608EAB-R63/B--------
RFQ
