DWYER INSTRUMENTS 477-0T-AV Air Manometer Kit | CH9NXY

DWYER INSTRUMENTS 477-0T-AV Air Velocity Kit, 0 to 20 Inch WC Range

Item: CH9NXY Model: 477-0T-AVCross Ref: 55EJ37
See variants (3)
In Stock
Check Availability

Get it by Tuesday, Jun 17

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€1,901.41 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemAir Velocity Kit
Accuracy- 0.5% to + 0.5%
Auto Power OffYes
Batteries RequiredYes
Battery Life1 yr.
Battery TypeAlkaline
Battery Voltage9V
Calibration Certificate IncludedNo
Case ColorGray
Case MaterialPolyethylene
Data HoldYes
Display Size4"
Housing Height5.89"
Housing Length2.812"
Housing MaterialAluminum
Humidity SensingNo
Low Battery IndicatorYes
Max. Operating Pressure5 psi
Operating Pressure Range0 in. wc to 10 in. wc
Overall Height6.53"
Overall Length0.906"
Overall Width2.81"
Pressure Range0 in. wc to 10 in. wc
Pressure UnitsCm Wc, Ft Wc, Hpa, In Hg, In Wc, Kpa, Mbar, Mm Hg, Mm Wc, Pa, Psi
Process Connection TypeHose Barb
Sensing Element TypePiezoelectric
Special FeaturesAir Velocity, Measures Differential Pressure, Volumetric Air Flow
Air Velocity Accuracy+/-0.5% of Full Scale from 60°F to 78°F, +/-1.5% of Full Scale from 32°F to 60°F, 78°F to 104°F
Air Velocity Range1266 FPM
AlarmYes
ApplicationAir, Compatible Gases
Batteries IncludedYes
Connections1/8" Hose Barb, 3/16" Hose Barb
Digital Display Features4 Digit Backlit LCD
Display UnitsCFM, cm wc, cu m/hr, cu m/sec, fpm, fps, ft. wc, hPa, in. Hg, in. wc, k/h, knot, kPa, m/h, m/s, mbar, mm Hg, mm wc, mph, oz/sq in., Pa, psi
Enclosure Rating0 in. wc

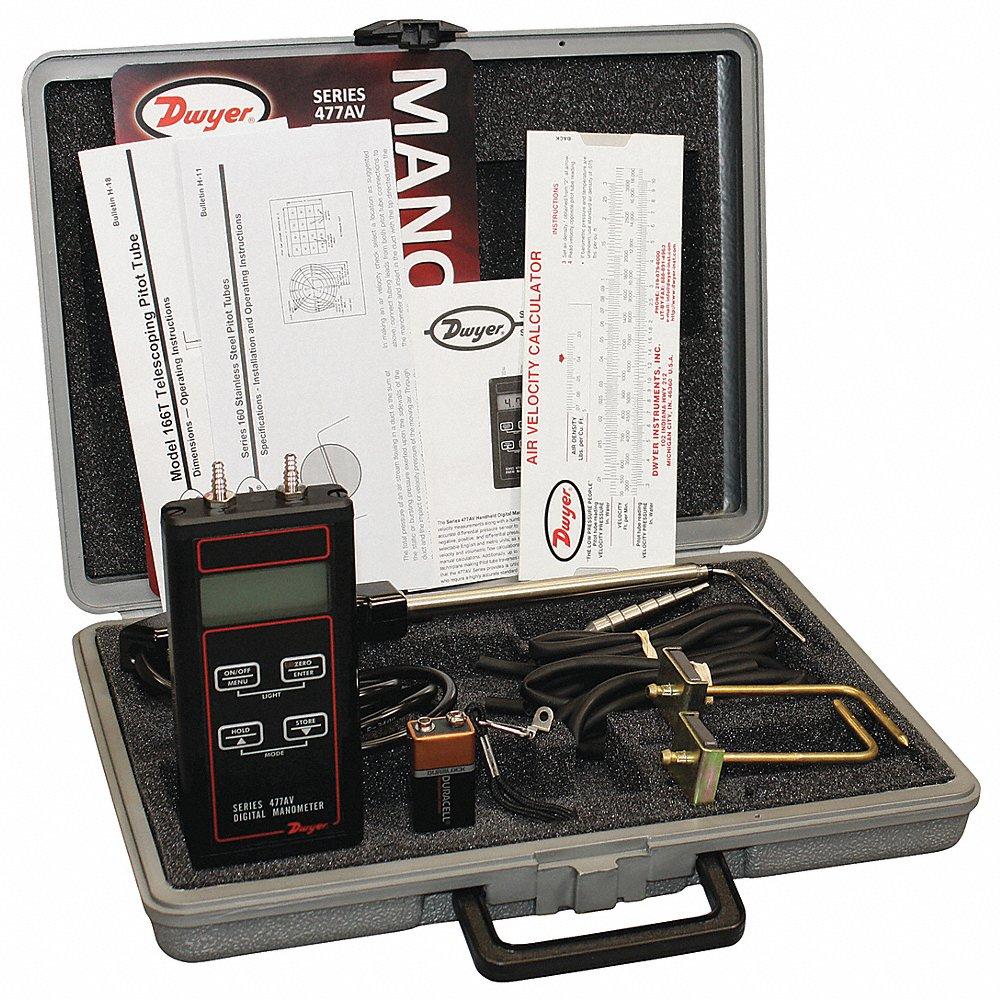

Includes(2) 4-1/2 ft. Lengths 3/16" ID Rubber Tubing, (2) No. A-303 Static Pressure Tips with Magnetic Mounting, Fitted Polyethylene Case, Model 166T Telescoping Pitot Tube, No. A-397 Step Drill, No. A-532 AV Slide Chart
Maximum Air Velocity1266 FPM
Maximum Operating Temperature140°F
Maximum Pressure10 in. wc
Minimum Operating Temperature0°F
Minimum Pressure0 in. wc
Nema Rating0 in. wc
Pressure Accuracy±0.5% Full Scale from 60 to 78°F, ±1.5% Full Scale from 32 to 60°F and 78 to 104°F
Pressure Resolution0.01 in. wc
Pressure Units Displayedcm wc, ft. wc, hPa, in. Hg, in. wc, kPa, mbar, mm Hg, mm wc, oz./sq. in., Pa, psi
Process Connection Size1/8", 3/16"
Series477AV Series
StandardsCE
Storage Temperature Range-4°F to 176°F
Weight10.2 oz.

Shipping Info:

Ship weight (kg) 3.15
Ship height (cm)16.59
Ship length (cm)2.3
Ship width (cm)7.14
Country of OriginUS

Product Variants

ProductModelPressure RangeAccuracyBattery TypeBattery VoltageCase MaterialDisplay SizePrice
DWYER INSTRUMENTS 477-000T-AV Air Manometer Kit | CH9NXV 477-000T-AV0 in. wc to 1 in. wc- 0.5% to + 0.5%Alkaline9VPolyethylene4"€1,565.48
DWYER INSTRUMENTS 477-00T-AV Air Manometer Kit | CH9NXW 477-00T-AV0 in. wc to 4 in. wc- 0.5% to + 0.5%Alkaline9VPolyethylene4"€1,480.38
DWYER INSTRUMENTS 477-1T-AV Air Manometer Kit | CH9NXX 477-1T-AV0 in. wc to 20 in. wc- 0.5% to + 0.5%Alkaline9VPolyethylene4"€1,538.05
