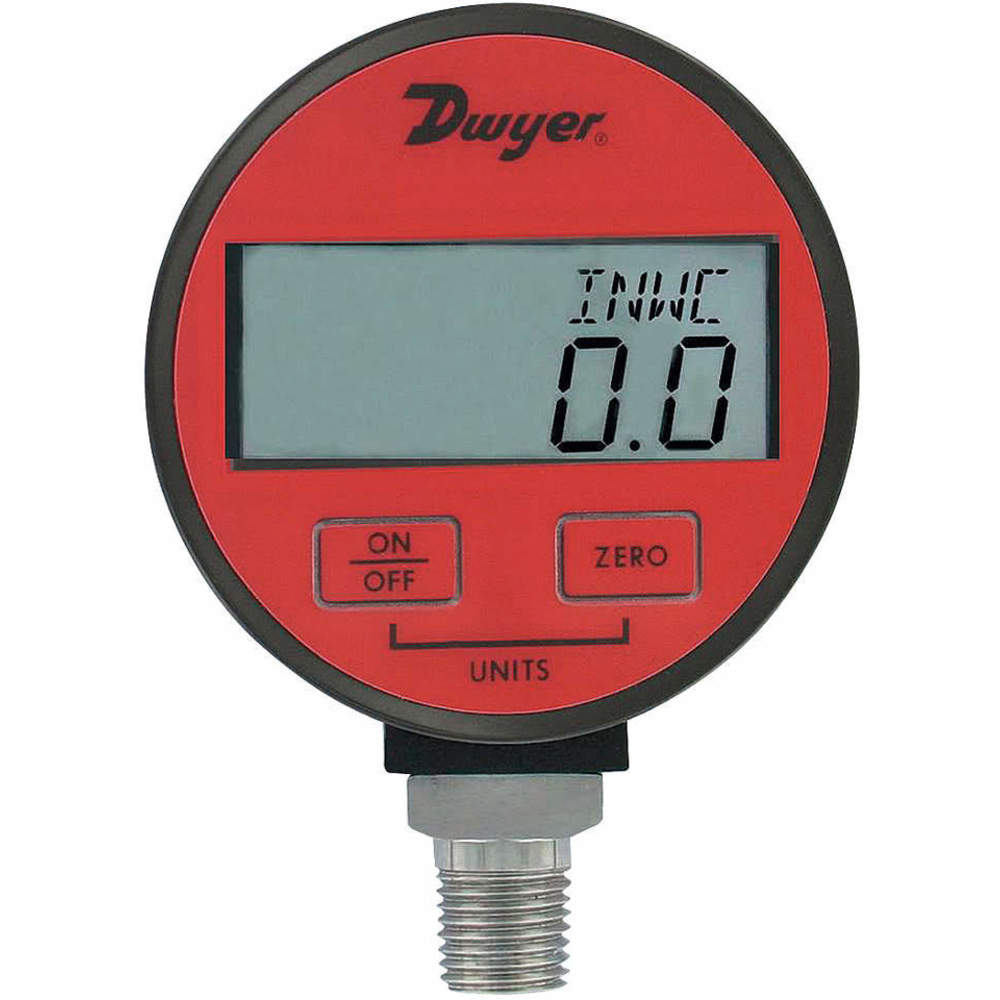

| Item | Digital Pressure Gauge |
| Accuracy | -1% to +1% |
| Adjustable Set Points | No |
| Auto Shutoff | 20 min. , Yes |
| Backlit Screen | No |
| Basic Gauge Case Material | Plastic |
| Battery Included | Yes |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Red |
| Case Depth | 1 13/25" |
| Case Dia. | 2.62" |
| Case Shape | Round |
| Connection Location | Bottom |
| Connection Size | 1/4" |
| Connection Type | NPT |
| Dial Size | 2.62" x 1.52" |
| Digit Height | 0.43" |
| Digital Gauge Display Units | Bar, Cm Wc, Ft Wc, In Hg, In Wc, Kg/Sq Cm, Kpa, Mbar, Mm Hg, Oz./Sq. In., Psig |
| Digital Pressure And Vacuum Gauge Type | Digital Vacuum Gauge |
| Display Resolution | 0.01 psi |
| Display Type | LCD |
| Display Units | Bar, Cm Wc, Ft Wc, In Hg, In Wc, Kg/Sq Cm, Kpa, Mbar, Mm Hg, Oz./Sq. In., Psig |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Primary Range Units | In Hg |
| Grade | Grade 316L |
| Hazardous Location Rating | Not Rated |
| Housing Material | ABS |
| Includes | Instructions |
| Includes Rubber Boot | No |
| Ip Rating, Nema Rating | Not Rated |
| Languages | English |
| Low-battery Indicator | Yes |
| Memory Storage | No |
| Mounting Hardware Included | No |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Number Of Digits | 4 |
| Operating Temp. Range | +30°F to +120°F |
| Panel-mountable | No |
| Peak Hold | No |
| Power Source | Battery |
| Powered By | 9V Battery |
| Pressure Range Type | Compound |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Range | 0 psi to 30 in. hg |
| Resolution | 0.01 psi |
| Sensor Material | Silicone |
| Weatherproof | No |
| Application | OEM Applications, Process Industries |
| Auto-shutoff | Yes |
| Auto-shutoff Time | 20 min. |
| Battery Type | 9V Battery |
| Case Diameter | 2.62" |
| Case Material | Plastic |
| Compatible Process Media | Air And Compatible Gases |
| Display Range | -1.013 Bar to 0 Bar, -1.033 to 0 kg/sq. cm, -101.4 to 0 kPa, -1013 to 0 mBar, -1034 to 0 cm wc., -235.2 to 0 oz/sq. in., -29.93 to 0 in. hg, -33.94 to 0 ft. wc., -407.3 to 0 in wc., -761 to 0 mm hg, 30 to 0 in. hg |
| Display Screen Type | LCD |
| Gauge Accuracy Grade | Not Graded |
| Gauge Application | For Dry Air & Gases |
| Gauge Case Material | ABS |
| Gauge Wetted Parts | Stainless Steel/Silicon |
| Includes Batteries | Yes |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ip/nema Rating | Not Rated |
| Low Battery Indicator | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Type | Stem Mount |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | -30 in. hg to 0 in. hg |
| Primary Display Range | -30 to 0 |
| Primary Display Units | in. hg |
| Process Connection | 1/4" NPT Male |
| Process Connection Location | Bottom |
| Process Connection Type | NPT |
| Process Temperature Range | 30°F to 120°F |
| Series | DPGA Series |
| Socket Material | 316L Stainless Steel |
| Standards | CE CERTIFIED, ROHS, RUSSIAN GOST CERTIFICATION |
| Temperature Error | 0.05%°F |
| Wetted Parts Material | 316L Stainless Steel, Silicon |
