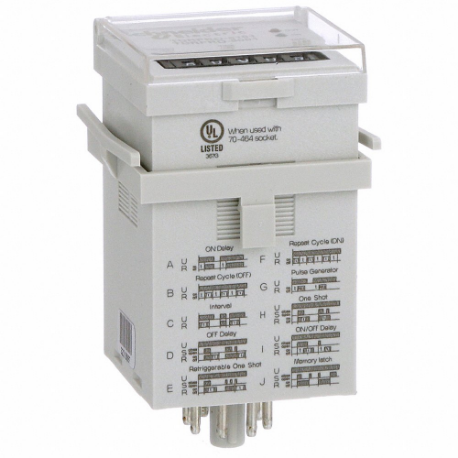

SCHNEIDER ELECTRIC TDRPRO-5101 Multi-Function Time Delay Relay, Panel Door Mounted, 240V Ac, 12 A, 8 Pins/Terminals | CU2EDD

SCHNEIDER ELECTRIC TDRPRO-5101 Multi-Function Time Delay Relay, Panel Door Mounted, 240V Ac, 12 A, 8 Pins/Terminals

Item: CU2EDD Model: TDRPRO-5101Cross Ref: 6CXD0
See variants (16)
In Stock
Check Availability

Get it by Tuesday, Jun 10

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€114.41 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemTime Delay Relay
Ac Contact Rating12A @ 12-240V
Adjustment MethodThumb Wheel
Amps Rating12A
Base ShapeOctal
Base TypeOctal
Base Type - Plug In RelayOctal
Body Depth1.9" , 4 1/2"
Body Height1.9" , 3.15"
Body Width1.89" , 1.9"
Brake Release Time25 ms
Coil Rating2.5 VA
Coil Volts240V AC
Contact Amp Rating12A
Contact FormSPDT
Contact MaterialSilver Alloy
Control TypeDial Front
Dc Contact Rating12A @ 12 to 240V
Delay FunctionInterval (Power On) Memory Hold (S Make) Off Delay (S Break) On Delay (Power On) On/Off Delay (S Make/Break) One Shotpulse Generator Repeat Cycle (Starting Off)Repeat Cycle (Starting On) Retriggerable One Shot
Delay Function GroupCycle/Flasher, Interval, One Shot
Electrical ConnectionSocket
Electrical Connection TypePin
Electrical Operating Durability100000
Environmental ProtectionSealed
Flat Pin WidthNot Applicable
FunctionOn Delay (Power On), Repeat Cycle (Starting Off), Interval (Power On), Off Delay (S Break), Retriggerable One Shot, Repeat Cycle (Starting On), Pulse Generator, One Shot, On/Off Delay (S Make/Break), Memory Hold (S Make)
Ip RatingIP40
Max. Operating Temp.131°F
Mechanical Operating Durability10000000
Min. Operating Temp.14°F
Min. Time Setting0.1 sec.
Min. Time Setting - Timer0.1 sec.
Minimum Time Setting0.1 sec.
MountingPlug In
Mounting - RelayPlug In
Mounting StyleThrough Panel
Mounting SupportSocket
No. Of Functions10
No. Of Pins8
No. Of Pins - Relay8
Number Of Delay Functions10
Number Of Pins/terminals8
Operating Time25 ms
Operating Time Accuracy-0.1% To +0.1%
Overall Depth4.73"
Overall Height3.38"
Pins8
Power Consumption2.5 VA
Product RangeLegacy
Product TypeTime Delay Relay
Relay Mounting StylePanel Door
Reset MethodTime Limit Reset
SealingSealed
Socket CodeA
Time Delay TypeMultifunction
Timing Relay FunctionalityInterval Delay, Off Delay, On Delay, One Shot, Other, Pulse Generator, Repeat Cycle
StandardsIEC 61810-1, ROHS COMPLIANT, UL LISTED

Shipping Info:

Ship weight (kg) 0.135
Ship height (cm)4.83
Ship length (cm)11.43
Ship width (cm)4.8
Country of OriginCZ

Product Variants

ProductModelRelay Mounting StyleNumber Of Delay FunctionsElectrical Connection TypeAmps RatingContact FormMin. Time SettingMax. Time SettingSocket CodePrice
SCHNEIDER ELECTRIC TDRPRO-5100 Multi-Function Time Delay Relay, Panel Door Mounted, 240V Ac, 12 A, 11 Pins/Terminals | CU2EDC TDRPRO-5100Panel Door5Pin12ADPDT0.1 sec.-B€151.92
SCHNEIDER ELECTRIC TDRPRO-5102 Multi-Function Time Delay Relay, Panel Door Mounted, 240V Ac, 12 A, 8 Pins/Terminals | CU2EDE TDRPRO-5102Panel Door3Pin12ADPDT0.1 sec.-A€109.71
SCHNEIDER ELECTRIC RE17RMJU Time Delay Relay, DIN-Rail Mounted, 12VAC, 8 A, 6 Pins/Terminals, 1 sec to 100 hr | CU2EDR RE17RMJUDin Rail5Screw8ASPDT1 sec.--€107.94
SCHNEIDER ELECTRIC RE22R2MMU Time Delay Relay, DIN-Rail Mounted, 24 to 240VAC/24V DC, 8 A, 4 Pins/Terminals | CU2EDT RE22R2MMUDin Rail5Screw8ADPDT0.1 sec.--€95.16
SCHNEIDER ELECTRIC RE22R1MKMR Time Delay Relay, DIN-Rail Mounted, 240VAC, 5 A, 6 Pins/Terminals, 0.05 sec to 5 min | CU2EDV RE22R1MKMRDin Rail2Screw5ASPDT0.05 sec.5 min.-€118.16
SCHNEIDER ELECTRIC RE22R2MMW Time Delay Relay, DIN-Rail Mounted, 240VAC, 8 A, 4 Pins/Terminals, 0.1 sec to 100 hr | CU2EDW RE22R2MMWDin Rail5Screw8ADPDT0.1 sec.--€101.51
SCHNEIDER ELECTRIC RE22R2DMR Time Delay Relay, DIN-Rail Mounted, 240VAC, 8 A, 6 Pins/Terminals, 0.05 sec to 300 hr | CU2EDY RE22R2DMRDin Rail2Screw8ADPDT0.05 sec.--€104.84
