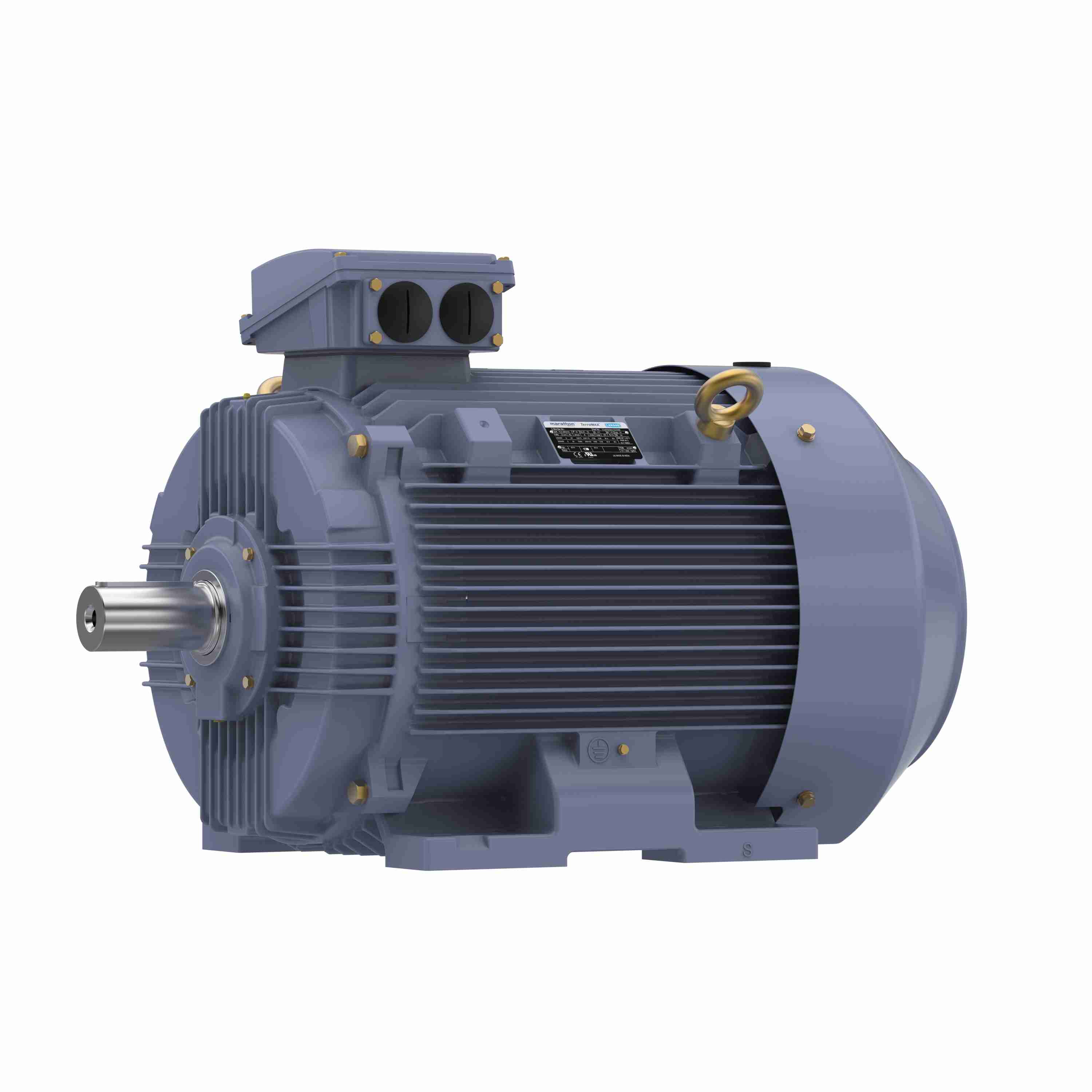

MARATHON MOTORS TCA0751AE211GAA009 General Purpose Motor, 100 hp, 3 Phase, 3580 Rpm, 230/460VAC, 280S Frame | CH6RTL 55AZ18

MARATHON MOTORS TCA0751AE211GAA009 R506A Cast Iron Motor, 100/75 HP, 3 Phase, 60/50 Hz, 230/460 and 200/400V, 3600 and 3000 RPM

Item: CH6RTL Model: TCA0751AE211GAA009Cross Ref: 55AZ18 / R506A
In Stock

Get it by Friday, Jun 13

€9,939.09 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemGeneral Purpose Motor
Ambient Temp.40°C
ApplicationGeneral Application
Bearing TypeBall
BearingsBall
Cc NumberCC003A
DutyContinuous
Duty CycleContinuous
Efficiency94.1%
Efficiency GroupPremium
Frame280S
Frame MaterialCast Iron
Frequency50/60 Hz
Full Load Amps222/111A
Full Load Amps @ 50hz190/95A
Hp100 hp
Insulation ClassClass F
Inverter RatedYes
Length Less Shaft920 mm
Motor ApplicationGeneral Application
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Shaft RotationClockwise/Counter Clockwise
Motor TypeThree Phase
Mounting TypeRigid Base
Nameplate Rpm3580 RPM
Nema DesignN
No. Of Speeds1
Number Of Speeds1
Overall Length1060 mm
Phase3
Service Factor1.15
Shaft Dia.65 mm
Shaft Length140 mm
Thermal ProtectionNone
Usable @ 200vNo
Usable @ 208vNo
Voltage230/460V AC
Hp @ 50hz100 hp
Hz50/60 Hz
Ins. ClassClass F
Manufacturers Warranty Length1 yr.
Max. Ambient Temp.40°C
Motor BearingsBall
Motor Design3-Phase
Motor Service Factor1.15
Motor Thermal ProtectionNone
Nominal Efficiency94.1%
StandardsCE, UL RECOGNIZED
Weight1624.8 lbs.

Shipping Info:

Ship weight (kg) 731.25
Ship height (cm)93.98
Ship length (cm)129.54
Ship width (cm)73.66
Country of OriginIN
