IRWIN 97606 Tap/die Set 66 Piece Carbon Steel | AB9QNZ 2ETL7

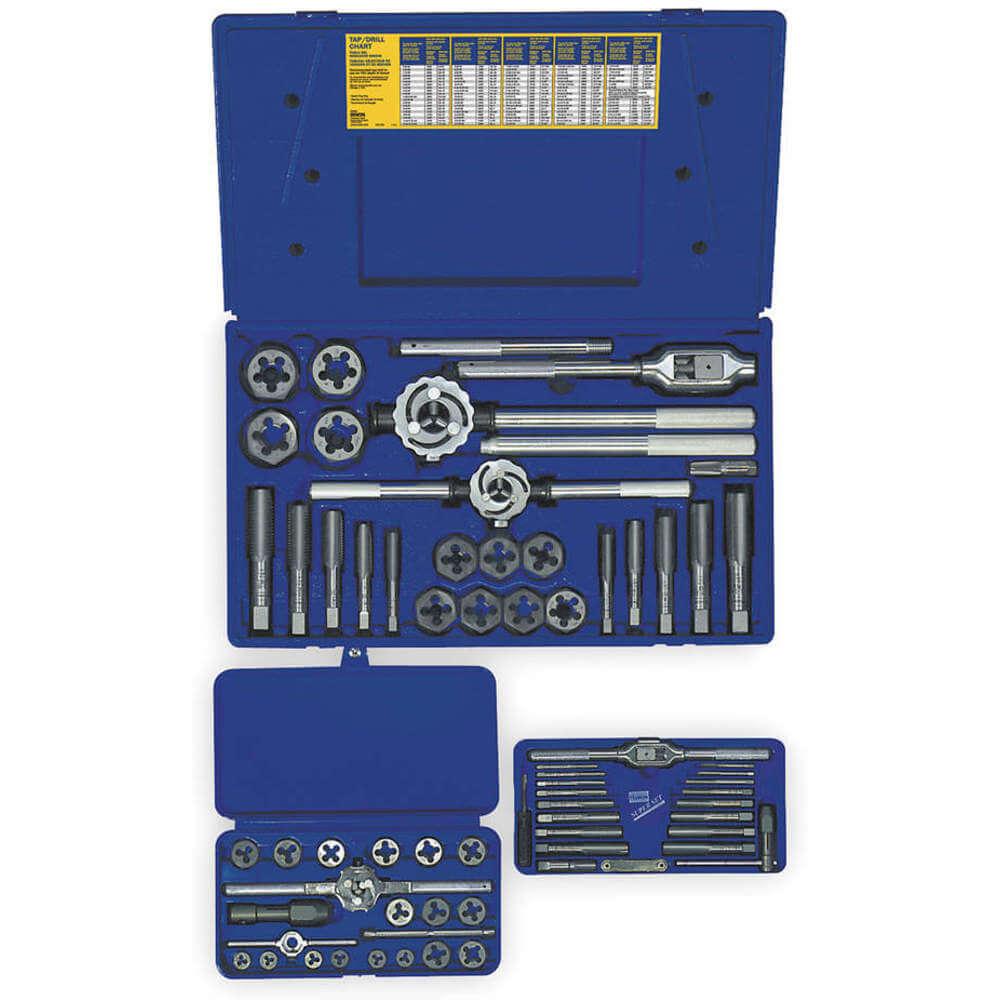

IRWIN INDUSTRIAL TOOLS 97606 Tap/die Set 66 Piece Carbon Steel

Item: AB9QNZ Model: 97606Cross Ref: 2ETL7
See variants (2)
In Stock
Check Availability

Get it by Tuesday, Jun 10

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€820.56 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemTap and Die Set
Cutting Sizes28
Die Hex Size5/8", 1", 1 7/16", 1 13/16"
Die Type5/8" Hex Solid, 1" Hex Solid, 1-7/16" Hex Solid, 1-13/16" Hex Solid
FinishPlain
MaterialHigh Carbon Steel
Number Of Pieces66
Sae Or MetricSAE
Size/range#4 to 1"
Sizes#4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 7/8"-9, 7/8"-14, 1"-8, 1"-14, 1/8"-27, 1/4"-18
Sizes Included4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, 5/8-11, 5/8-18, 3/4-10, 3/4-16, 7/8-9, 7/8-14, 1-8, 1-14, 1/8-27 NPT, 1/4-18 NPT
Thread TypeCoarse, Fine, NPT
TypeFractional
55% Thread Drill Size#12, #13, #21, #27, #3, #31, #32, #36, 1/2", 10.2 mm, 11.30 mm, 11.8 mm, 11/32", 13.25 mm, 13.25 mmm, 14.2 mm, 14.8 mm, 15/16", 17.2 mm, 17.9 mm, 2.45 mm, 2.75 mm, 20.9 mm, 29/32", 3.6 mm, 3/32", 4.25 mm, 5.7 mm, 51/64", 8.4 mm, 9/32", I, W
75% Thread Drill Size#21, #25, #29, #33, #36, #39, #7, 11.40 mm, 12.20 mm, 12.90 mm, 13.60 mm, 14.50 mm, 16.50 mm, 17.50 mm, 19.50 mm, 2.20 mm, 2.32 mm, 2.60 mm, 20.40 mm, 22.25 mm, 23.30 mm, 27/64", 3.40 mm, 4.45 mm, 4.60 mm, 5.45 mm, 5/16", 8.50 mm, 9.95 mm, F, I, U
Case TypePlastic
Die MaterialHigh Speed Steel
Die ShapeHex
Material - MachiningHigh Speed Steel
Measurement SystemFractional Inch
Primary Material ApplicationAll Materials
StandardsASME/ANSI B94.9-1987
Tap MaterialHigh Speed Steel
Thread DirectionRight Hand

Shipping Info:

Ship weight (kg) 9.3825
Ship height (cm)14.73
Ship length (cm)53.34
Ship width (cm)36.83
HS code8206000000
Country of OriginUS

Product Details:

IRWIN 97606 tap / die set is a cutting tool set used to create threads for nuts, bolts and screws. This set is an economical choice for both internal- and external-threading applications in maintenance operations.

Features:

  • This 66 piece tap / die set is made of high carbon steel for durability.
  • This set includes tools that make NC, NF and NPT threads.
  • It consists of high-speed steel tap wrenches with plug and taper chamfer variants.

Standards and Approvals:

  • ASME / ANSI

Frequently Asked Questions:

Q. How many taps are present in this kit?

A. This kit is equipped with 28 Hansen taps.

Q. How many dies are present in this kit?

A. This kit is equipped with 28 dies.

Q. In which direction does this kit create threads?

A. This kit creates threads in the normal direction (right-hand direction).

Q. What is the design of the drill bits available in this kit?

A. Drill bits in this kit feature a 4-flute design to ensure fast and easy chip clearance.

Product Variants

ProductModelNumber Of PiecesThread TypeSize/rangeSizesCutting SizesDie Hex SizeDie ShapeMaterialPrice
IRWIN 24605 Tap/die Set 12 Piece Carbon Steel | AB9QNU 2ETL2 2460512Coarse/Fine#6 to 1/4"#6-32, #8-32, #10-24, #10-32, 1/4"-205--High Carbon Steel€60.26
IRWIN 24606 Tap/die Set 41 Piece Carbon Steel | AB9QNV 2ETL3 2460641Coarse, Fine, NPT#4 to 1/2"#4-40, #6-32, #8-32, #10-24, #10-32, #12"-24, 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 1/8"-27171"HexHigh Carbon Steel€260.67
