HARTING 73101000012 Modular Rectangular Connector Variety Kit, Han-Eco Modular, 16 B | CR3RCN

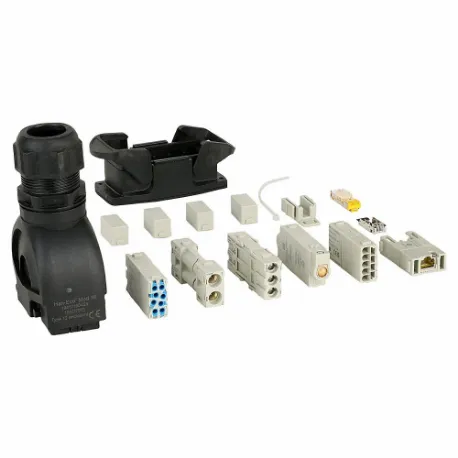

HARTING 73101000012 Modular Rectangular Connector Variety Kit, Han-Eco Modular, 16 B

Item: CR3RCN Model: 73101000012Cross Ref: 793WT5
Limited Availability

Get it by Wednesday, Jun 11

Request a Quote

Payment

Delivery

Product Specifications:

ItemKit
Body MaterialPolyamide Fiberglass Reinforced
Cable Entry DesignM40 Plastic Cable Gland
Cable Entry TypePlastic Cable Gland
Cable Gland MaterialPlastic
Cable Gland SizeM40
Connector StyleBulkhead Mount Base With Double Lever
Current Rating16/40/70A
Entry LocationTop
For Cable Diameter16 mm to 28 mm
For Maximum Cable Diameter28 mm
For Minimum Cable Diameter16 mm
Height166.3 mm
Hood OrientationStraight
Includes2 (70A Module), 3 (40A Module), 5 (E Module), 8 (EE Module), 8 (RJ45 Module), PE (PE Module)
Includes CoverNo
Insert MaterialPolycarbonate, Zinc Die Cast
Ip RatingIP65
Kit Includes(4) Dummy Modulefemale 40A Modulefemale 70A Modulefemale E Modulefemale Ee Modulefemale Pe Modulefemale RJ45 Modulehoodhousing 19 41 Male 40A Modulemale 70A Modulemale E Modulemale EE Modulemale PE Modulemale RJ45 Module
Length113 mm
Lock TypeDual Lever
Max. Operating Temp.125°C
Max. Wire Size14 AWG (E Module), 14 AWG (EE Module), 6 AWG (70A Module), 6 AWG (PE Module), 8 sq. mm (40A Module)
Mfr. SeriesHAN Eco Modular Series
Min. Operating Temp.-40°C
Minimum Mating Cycles500
Mounting TypeBulkhead
Nema RatingNEMA 12, NEMA 4, NEMA 4X
Number Of Entries1
OrientationStraight Hood
Pole FinishSilver Plated
Pole MaterialCopper Alloy
Seal MaterialNbr
Size DesignationHan 16 B
Voltage Rating1000/400/400/50/690V
Wire TerminationHan Quick Lock Screw
For Cable Diameter - Minimum16 mm
Locking TypeDual Lever
Nema Enclosure RatingNEMA 12, NEMA 4, NEMA 4X
Number Of Contacts2 (70A Module), 3 (40A Module), 5 (E Module), 8 (EE Module), 8 (RJ45 Module), PE (PE Module)
StandardsCE CERTIFIED, CSA CERTIFIED, DIN EN 175 301-801, DIN EN 61 984, UL LISTED

Shipping Info:

Ship weight (kg) 0.225
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
