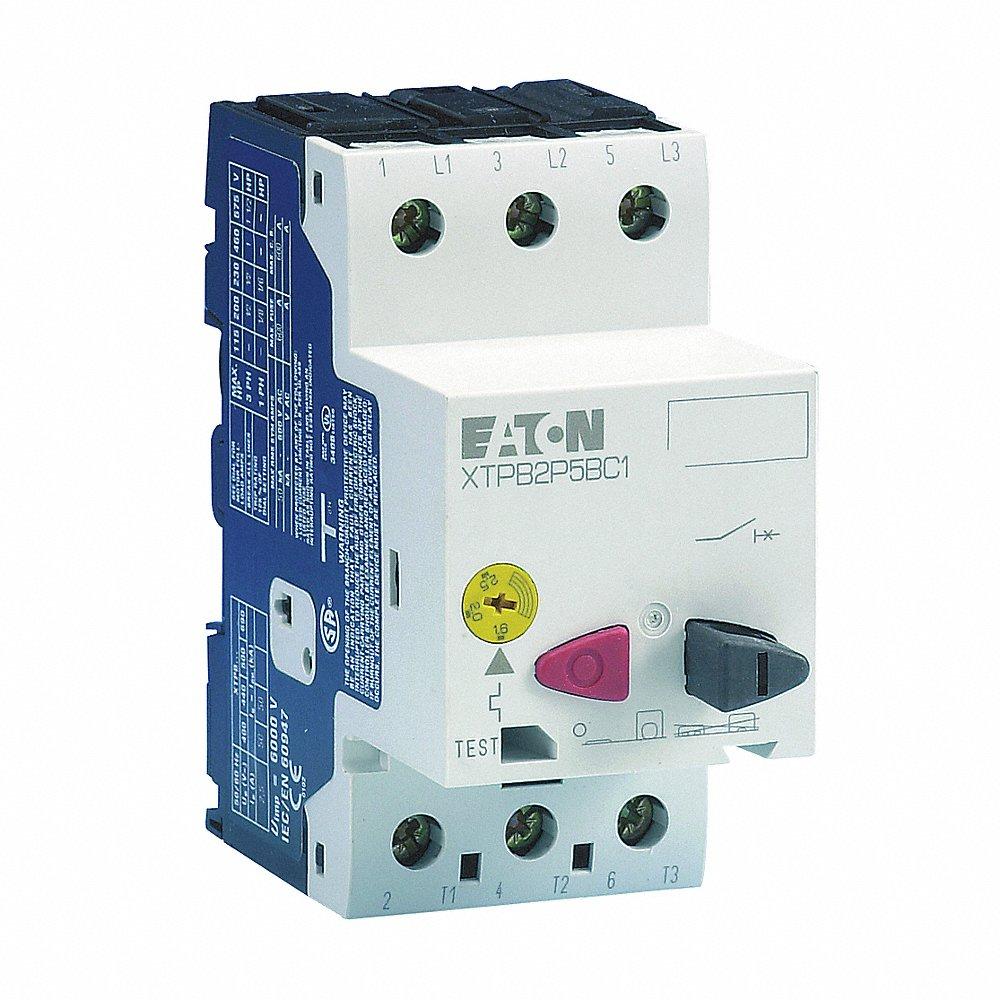

EATON XTPB2P5BC1 Manual Motor Protector, 1.60 to 2.50A, Push Button, 1/2 HP at 3 Phase, 240V | CJ2UFX

EATON XTPB2P5BC1 Manual Motor Protector, Non-Reversing, 3 Poles, 2.5 A, Thermal Protection, Push Button

Item: CJ2UFX Model: XTPB2P5BC1Cross Ref: 4WXH1
In Stock

Get it by Friday, Jun 13

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€354.62 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemManual Motor Protector
FeaturesPhase Loss Sensitivity
Frame SizeB
Horsepower @ Single Phase - 240v Ac1/6 hp
Horsepower @ Three Phase - 208v Ac1/2 hp
Horsepower @ Three Phase - 240v Ac1/2 hp
Horsepower @ Three Phase - 480v Ac1 hp
Horsepower @ Three Phase - 600v Ac1 1/2 hp
Includes Pilot LightNo
Max Current (ac)2.5A
Maximum Overload Relay Current Setting2.5A
Maximum Voltage Rating600V AC
Minimum Overload Relay Current Setting1.6A
Mounting StyleDIN Rail
Nema Enclosure RatingNo Enclosure
Number Of Poles3
OperatorPush Button
Overall Depth4"
Overall Height2"
Overall Width3 1/2"
Overload Protection TypeThermal
PhaseThree
Phase Loss SensitivityYes
Reversing CapabilityNon-Reversing
SeriesXTPB Series
StandardsATEX COMPLIANT, CE, CSA, UL 508 GROUP MOTOR TYPE E COMPLIANT, UL LISTED
Starter StyleIEC
Thermal Units RequiredNone (Starter Includes Integrated Thermal Units)
Trip Class10
Wire Termination TypeScrews

Shipping Info:

Ship weight (kg) 0.315
Ship height (cm)5.08
Ship length (cm)10.16
Ship width (cm)8.89
Country of OriginDE
