DAYTON

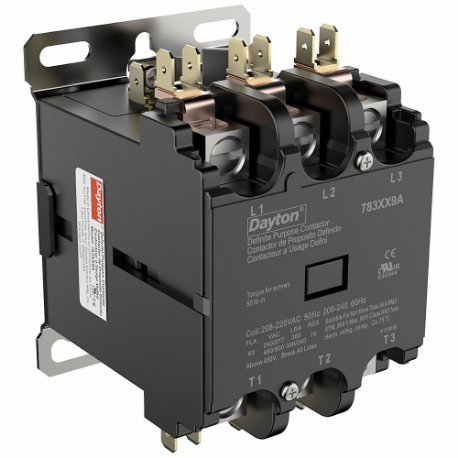

DAYTON 783XX9 Definite Purpose Magnetic Contactor, 3 Poles, 63 A Full Load Amps-Inductive, 208/240VAC

Item: CR2WUL Model: 783XX9

See variants (20)

In Stock

Check Availability

Get it by Thursday, Jun 12

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€91.91 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Contactor
Contact Material	Silver Cadmium Oxide
Depth	4 1/25"
Enclosure Nema Rating	No Enclosure
Fluorescent Lighting Amps Rating	Not Applicable
Frame Size	Not Applicable
Frequency	50/60 Hz
Full Load Inductive Amps	63A
Height	3.15"
Horsepower @ Single Phase	10 hp
Horsepower @ Single Phase - 120v Ac	5 hp
Horsepower @ Three Phase - 208v Ac	20 hp
Horsepower @ Three Phase - 600v Ac	30 hp
Hp @ 1 Phase - 120v	5 hp
Hp @ 1 Phase - 240v	7 1/2 hp
Hp @ 3 Phase - 208v	20 hp
Hp @ 3 Phase - 240v	20 hp , 25 hp
Hp @ 3 Phase - 480v	25 hp , 30 hp
Hp @ 3 Phase - 575v	25 hp
Includes	Not Applicable
Inductive Full Load Amps	63A
Input Control Type	Not Applicable
Ip Rating	Not Applicable
Led Lighting Current Rating	Not Applicable
Mounting Hole Dia.	Not Applicable
Mounting Hole Distance	3 1/4"
Mounting Hole Width	1.86"
Mounting Postion	Horizontal, Vertical
Mounting Style	Through Panel
Nema Enclosure Material	Not Applicable
No. Of Terminals	8
Number Of Normally Closed Main Contacts	0
Number Of Normally Open Main Contacts	3
Number Of Poles	3
Overall Depth	4 1/25"
Overall Height	3.15"
Overall Width	2 19/25"
Resistance Properties	Not Applicable
Resistive Full Load Amps	75A
Response Time	20 ms
Reversible	No
Status Indicator	Mechanical Flag
Terminal Connection Type	Box Lugs
Tungsten Lighting Current Rating	Not Applicable
Width	2 19/25"
Auxiliary Contact Module Capacity	2
Coil Voltage	208/240V AC
Contactor Frame Size	Standard
Electrical Operating Durability	200000
Full Load Current - Inductive	63A
Full Load Current - Resistive	75A
Horsepower @ Single Phase - 240v Ac	10 hp
Horsepower @ Three Phase - 240v Ac	25 hp
Horsepower @ Three Phase - 480v Ac	30 hp
Locked Rotor Load	240A @ 600V AC, 300A @ 480V AC, 360A @ 240/277V AC
Main Pole Contact Form	3NO
Maximum Operating Temperature	158°F
Maximum Voltage Rating	600V AC
Mechanical Operating Durability	500000
Minimum Operating Temperature	-40°F
Mounting Hole Distance - Height	3.25"
Mounting Hole Distance - Width	1.86"
Nema Enclosure Rating	No Enclosure
Nominal Coil Voltage @ 60hz	208-240V AC
Number Of Terminals	8
Phase	Three
Reversing Capability	Non-Reversing
Standards	CE, CRUUS
Wire Termination Type	Box Lug

Shipping Info:

Ship weight (kg)	0.6885
Ship height (cm)	8
Ship length (cm)	10.26
Ship width (cm)	7.01
Country of Origin	CN

Product Variants

Model	Hp @ 1 Phase - 240v	Hp @ 3 Phase - 240v	Hp @ 3 Phase - 480v	Depth	Hp @ 1 Phase - 120v	Hp @ 3 Phase - 208v	Inductive Full Load Amps	Resistive Full Load Amps	Price
783Y04	3 hp	5 hp	15 hp	3.74"	2 hp	5 hp	25A	35A	€34.73
783Y03	3 hp	5 hp	15 hp	3.74"	2 hp	5 hp	25A	35A	€38.58
783Y02	3 hp	5 hp	15 hp	3.74"	2 hp	5 hp	25A	35A	€38.58
783Y01	3 hp	7 1/2 hp	15 hp	3.74"	2 hp	7 1/2 hp	32A	40A	€39.31
783XZ9	3 hp	7 1/2 hp	15 hp	3.74"	2 hp	7 1/2 hp	32A	40A	€39.31
783XZ8	3 hp	7 1/2 hp	15 hp	3.74"	2 hp	7 1/2 hp	32A	40A	€39.31
783XZ7	5 hp	10 hp	15 hp	3.74"	3 hp	10 hp	40A	50A	€82.16
