WEG

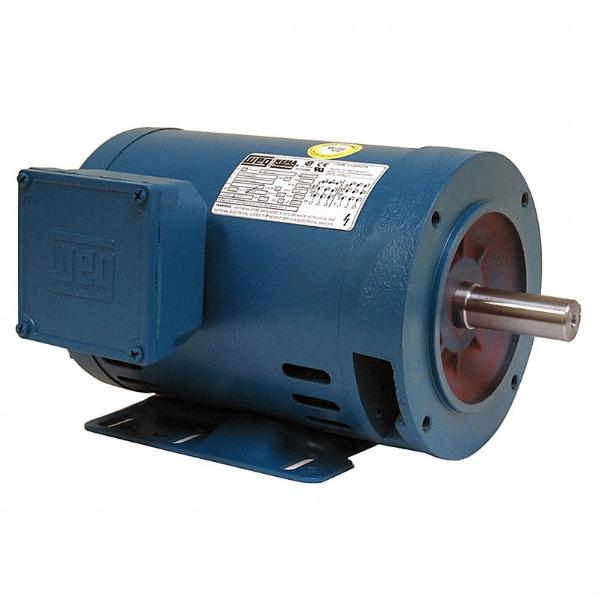

WEG 02018OT3E256TC-W40 General Purpose Motor, Open Dripproof, Rigid Base Mount, 20 HP, 1765 RPM, 230/460V AC | CL4YHA

WEG 02018OT3E256TC-W40 14494774 General Purpose Motor, Open Dripproof, Rigid Base Mount, 20 HP, 1765 RPM, 230/460V AC

Item: CL4YHA Model: 02018OT3E256TC-W40Cross Ref: 12N922 / 14494774

See variants (292)

Limited Availability

Check Availability

€2,056.24 /unit

Request a Quote

Payment

Delivery

Product Specifications:

Item	AC Motor
Altitude	1000 MASL
Ambient Temp.	-20°C to +40°C
Balancing Method	1/2" Key
Bearing Cap	Yes
Bolt Material	Carbon Steel
Break-down Torque	250%
Cold Locked Rotor Time	46 sec.
Connection Cables Quantity	12
Design	B
Drip Cover	Without
Duty Cycle	Continuous
Efficiency At 1 %	84%
Efficiency At 50 %	69%
Efficiency At 75 %	79%
Fan Cover Material	Without Fan Cover
Fan Material	Without Fan
Flange Type	C
Frame	254/6TC
Frame Material	Cast Iron
Frequency	50/60 Hz
Grounding Lugs	Single
Hot Locked Rotor Time	26 sec.
Impregnation Method	Dip And Bake Polyester
L. R. Amps	308/154A
Locked Rotor Torque	220%
Lrc	6.4X(Code G)
Main Terminal Box Hole Size	1 1/2"
Main Terminal Box Hole Type	NPT
Moment Of Inertia	3.13 lbs.-sq. ft.
Motor Enclosure Design	Open Dripproof
Motor Speed	1770 RPM
Mounting	Foot Mounted
No Load Amps	20/10A
No. Of Poles	4
Noise Level	62 dBA
Output	20 hp
Output Rating	20 hp
Overload Protector	Without Overload Protector
Painting	RAL5009 203A (ISO 12944-C2)
Power Factor At 1 %	93
Power Factor At 50 %	92.4
Power Factor At 75 %	93
Rated Current	48.2/24.1A
Rated Torque	59.3 lbs.-ft.
Rated Voltage	230/460V AC
Regreasing System	At Drive End And Non Drive End
Rotation	Clockwise/Counter Clockwise
Service Factor	1.25
Shaft Locking Device	Without
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Slip	1.67%
Starting Method	Direct On Line
Synchronous Speed	1800 RPM
Temp. Rise	80 K
Terminal Block	Without
Terminal Box	Left Position
Tropicalized Painting	Without
Voltage	230/460/380V AC
Cc Number	CC029A
Full Load Amps	48.2/24.1A
Hp	20 hp
Hz	60 Hz
Ins. Class	Class F
Length Less Shaft	18 13/16"
Manufacturers Warranty Length	3 yrs.
Max. Ambient Temp.	40°C
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Frame Material	Cast Iron
Motor Mounting Type	Rigid Base
Motor Service Factor	1.25
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Nameplate Rpm	1765 RPM
Nema Design	None
No. Of Speeds	1
Nominal Efficiency	93%
Overall Length	22 13/16"
Phase	Three
Rpm Range	1701-1800 RPM
Shaft Dia.	1 5/8"
Shaft Length	4"
Standards	CE, CSA, UL
Usable @ 200v	No
Usable @ 208v	Yes
Weight	303 lbs.

Shipping Info:

Ship weight (kg)	135
Ship length (cm)	58.67
Ship width (cm)	2.54

Product Variants

Model	Motor Enclosure Design	Frequency	Service Factor	Voltage	Phase	Nameplate Rpm	Hp	Full Load Amps	Price
10C897	Totally Enclosed Fan Cooled	50/60 Hz	1	208-230/460V AC	3	1725 RPM	1/2 hp	1.9/1A	€520.75
10C899	Totally Enclosed Fan Cooled	50/60 Hz	1	208-230/460V AC	3	1725 RPM	3/4 hp	2.8/1.5A	€622.13
10C901	Totally Enclosed Fan Cooled	50/60 Hz	1.15	208-230/460V AC	3	3450 RPM	1/2 hp	2/1A	€415.23
11W365	Totally Enclosed Fan Cooled	60 Hz	1.15	230/460V AC	3	1720 RPM	1/4 hp	1/0.5A	€425.82
11W368	Totally Enclosed Fan Cooled	60 Hz	1.15	230/460V AC	3	1140 RPM	1/3 hp	1.5/0.7A	€327.97
11W369	Totally Enclosed Fan Cooled	60 Hz	1.15	230/460V AC	3	1170 RPM	1 1/2 hp	4.4/2.2A	€1,080.68
1K057	Totally Enclosed Fan Cooled	60 Hz	1.15	115/230V AC	1	1725 RPM	1/6 hp	3.8/1.9A	€585.37
