TEMPCO CHF02340 Circulation Heater 35 Inch Length | AC3TDF 2VYE5

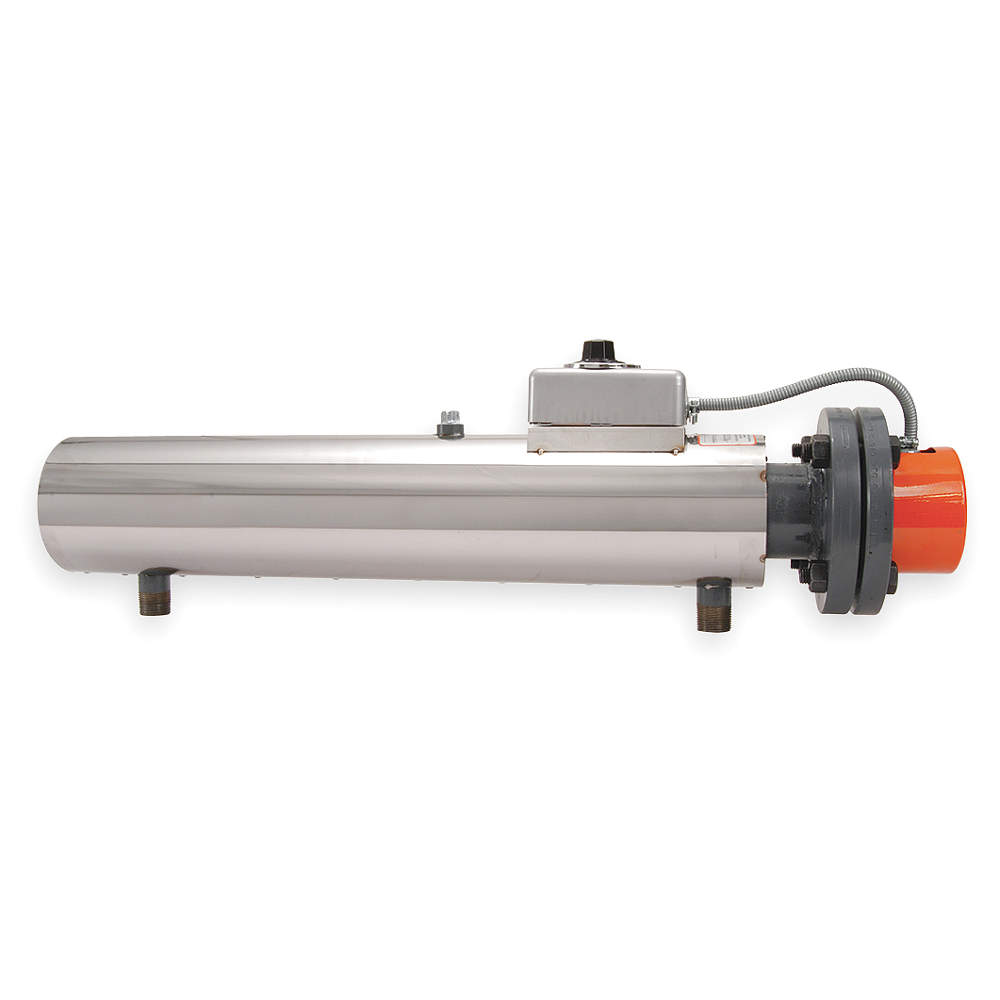

TEMPCO CHF02340 Circulation Heater 35 Inch Length

Item: AC3TDF Model: CHF02340Cross Ref: 2VYE5
See variants (11)
In Stock
Check Availability

Get it by Friday, Jun 13

€2,256.34 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemCirculation Heater
Flange MaterialSteel
Flange Size3"
IncludesTank Mounted Double Pole Thermostat
Overall Length35"
Phase3
Sheath MaterialStainless Steel
Special InformationReplacement Heater
Temp. Control Range+60°F to +250°F
Watt Density48 sq. in.
Wattage6000 W
Control Range60°F to 250°F
Enclosure TypeNEMA 1
For Use WithAir, Water
Min. Immersion Depth34 5/8"
Screw Plug MaterialStainless Steel
Voltage480V AC

Shipping Info:

Ship weight (kg) 29.25
Ship height (cm)35.56
Ship length (cm)88.9
Ship width (cm)35.56
HS code8516100080
Country of OriginUS

Product Details:

Tempco CHF02340 circulation heater is installed in industrial containers and tanks to heat oil, water, solvents or gas.

Features:

  • It features a high-temperature stainless steel sheath for structural rigidity and corrosion resistance.
  • This circulation heater comes with a NEMA 1 enclosure for protection against dust and indirect splashing.
  • It includes a tank-mounted double pole thermostat for precise temperature control within the tank by maintaining the desired heat settings.
  • This heater has a control range of 60 to 250 degrees F.

Frequently Asked Questions:

Q. What maintenance is required for Tempco CHF02340 circulation heater?

A. Its maintenance involves cleaning the heating elements and checking the electrical connections for integrity. It's also important to ensure that the fluid being heated is free of contaminants to avoid clogging or damaging the heater.

Q. Is Tempco CHF02340 circulation heater energy-efficient?

A. Yes, it is designed with high-watt density heating elements that provide rapid heating with minimal energy wastage. Proper insulation and accurate temperature controls further enhance energy efficiency.

Product Variants

ProductModelPhaseWatt DensityOverall LengthSheath MaterialWattageControl RangeFlange SizeTemp. Control RangePrice
TEMPCO CHF02304 Circulation Booster Heater 500w | AC3TCU 2VYC9 CHF02304123 sq. in.22"Steel-+150°F to +560°F-+150°F to +560°F€1,350.58
TEMPCO CHF02306 Circulation Booster Heater 750w | AC3TCW 2VYD2 CHF02306123 sq. in.22"Steel750 W+150°F to +560°F-+150°F to +560°F€1,339.78
TEMPCO CHF02155 Circulation Booster Heater 1500w | AC3TCZ 2VYD6 CHF02155134 sq. in.18"Copper1500 W+60°F to +180°F-+60°F to +180°F€1,899.00
TEMPCO CHF02156 Circulation Booster Heater 18 Inch Length | AC3TDB 2VYD8 CHF02156145 sq. in.18"Copper2000 W+60°F to +180°F-+60°F to +180°F€1,918.00
TEMPCO CHF02158 Circulation Booster Heater 3000w | AC3TDC 2VYE1 CHF02158149 sq. in.22"Copper3000 W+60°F to +180°F-+60°F to +180°F€2,059.75
TEMPCO CHF02339 Circulation Heater 35 Inch Length 240v | AC3TDD 2VYE3 CHF02339348 sq. in.35"Stainless Steel6000 W+60°F to +250°F3"+60°F to +250°F€2,032.40
TEMPCO CHF02341 Circulation Heater 45 Inch Length | AC3TDH 2VYE7 CHF02341348 sq. in.45"Stainless Steel12000 W-3"+60°F to +250°F€2,364.29
