SIEMENS 52BM9W2F Non-Illuminated Push Button, 30 mm Size, Momentary Push, Red/4X, Metal | CU2VLA

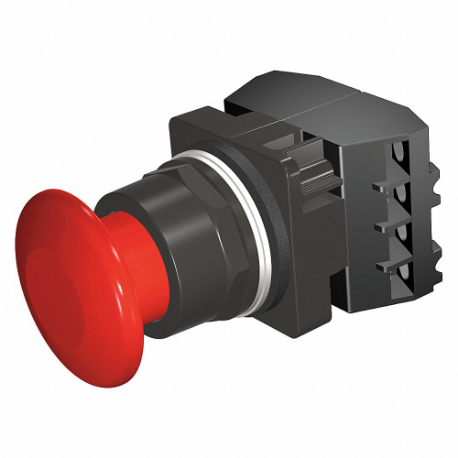

SIEMENS 52BM9W2F Non-Illuminated Push Button, 30 mm Size, Momentary Push, Red/4X, Metal

Item: CU2VLA Model: 52BM9W2FCross Ref: 32GG54
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€185.79 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemNon-Illuminated Push Button
Action TypeMomentary Push
Basic MaterialMetal
ColorRed
Contact Form2NO
Contact Rating10A @ 600V AC
Head MaterialPlastic
LegendNo Legend
MaterialMetal
Nema Contact Rating DesignationA600/P600
Nema RatingNEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Operators1
Terminal ConnectionPressure Plate
Type Of Operator44 mm Mushroom Head
Ac Contact Rating10A @ 600V
ActionMomentary
Bezel MaterialEpoxy Coated Metal
Dc Contact RatingNot Rated
Display Qty1
FeaturesBifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Head/lens ColorRed
Ip RatingIP10, IP11, IP14, IP52, IP54, IP56, IP66
Manufacturer Warranty Length1 yr.
Mechanical Operating Durability5 x 10^6
Mushroom Head Diameter44.45 mm
Nema Enclosure RatingNEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Number Of Indicator Lights0
Operating Temperature - Maximum158°F
Operating Temperature - Minimum31°F
Operator IlluminationNon Illuminated
Operator MaterialEpoxy Coated Metal
Operator Voltage Rating - Maximum600V AC
Overall Height4.49"
Overall Width2 3/25"
Panel Mounting Hole Diameter30 mm
Product TypePush Button Operators
Push Button StyleMushroom Head
Resistance PropertiesCorrosion Resistant
Series52 Series
StandardsCSA, REACH, UL LISTED

Shipping Info:

Ship weight (kg) 0.2115
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelType Of OperatorContact FormAction TypeTerminal ConnectionNumber Of OperatorsContact RatingNema Contact Rating DesignationBasic MaterialPrice
SIEMENS 3SU1150-1HA20-1CG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1Nc, 1/12/2/3/3R/4/4X | CU2RTF 3SU1150-1HA20-1CG040 mm Mushroom Head1NC-Screw Clamp110A @ 600V AC 1A @ 600V DCA600/R300Zinc Alloy€97.68
SIEMENS 3SU1100-1HA20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1No/1Nc | CU2RTG 3SU1100-1HA20-1FG040 mm Mushroom Head1NO/1NC-Screw Clamp110A @ 600V AC 1A @ 600V DCA600/R300Polyamide€70.47
SIEMENS 3SU1150-1HB20-1CG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Twist, Red, 1Nc | CU2RTH 3SU1150-1HB20-1CG040 mm Mushroom Head1NCMaintained Push / TwistScrew Clamp110A @ 600V AC 1A @ 600V DCA600/R300Zinc Alloy€102.16
SIEMENS 3SU1150-1HB20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Twist, Red, 1No/1Nc | CU2RTJ 3SU1150-1HB20-1FG040 mm Mushroom Head1NO/1NCMaintained Push / TwistScrew Clamp110A @ 600V AC 1A @ 600V DCA600/R300Zinc Alloy€74.94
SIEMENS 52PP2W2AP Emergency Stop Push Button, 30 mm Size, Maintained Push/Maintained Pull, Red, 1No/1Nc | CU2RTK 52PP2W2AP45 mm Push-Pull Knob1NO/1NC-Pressure Plate110A @ 600V AC 5A @ 600V DCA600/P600Metal€231.37
SIEMENS 3SU1150-1HA20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1No/1Nc, Plastic | CU2RTL 3SU1150-1HA20-1FG040 mm Mushroom Head1NO/1NC-Screw Clamp110A @ 600V AC 1A @ 600V DCA600/R300Zinc Alloy€74.94
SIEMENS 3SU1100-0AB10-1FA0 Non-Illuminated Push Button, 22 mm Size, Momentary, Black | CU2VGM 3SU1100-0AB10-1FA0Flush Button1NO/1NCMomentaryScrew Clamp110A @ 600V AC 1A @ 600V DCA600/R300Polyamide€65.31
