SIEMENS 3RT20182AP01 Power Contactor, 230 V AC Coil Volts, 16 A Full Load Amps-Inductive, 1No | CU2TKB

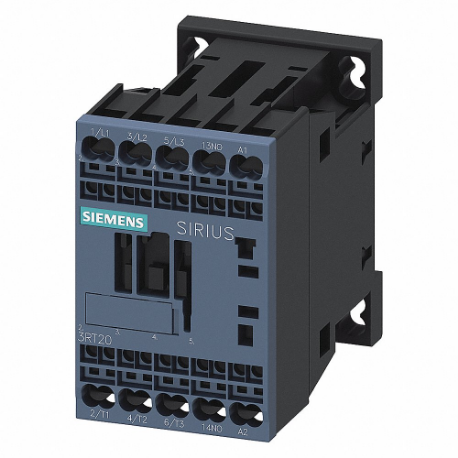

SIEMENS 3RT20182AP01 Power Contactor, 230 V AC Coil Volts, 16 A Full Load Amps-Inductive, 1No

Item: CU2TKB Model: 3RT20182AP01Cross Ref: 56JZ56
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€160.19 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemContactor
Aux. Contact Configuration1NO
Coil Volts230V AC
Depth2 23/25" , 73 mm
Embedded Surge SuppressorNo
Frequency50/60 Hz
Full Load Amps-inductive16A
Full Load Amps-resistive22A
Height3 2/25" , 70 mm
Horsepower @ Three Phase (600 Vac)10 hp
Horsepower @ Three Phase - 480v Ac10 hp
Hp @ 1 Phase - 120v1 hp
Hp @ 1 Phase - 240v2 hp
Hp @ 3 Phase - 208v3 hp
Hp @ 3 Phase - 240v5 hp
Hp @ 3 Phase - 480v10 hp
Hp @ 3 Phase - 575v10 hp
Includes Auxiliary ContactsYes
Mounting Hole Dia.1/5"
Mounting Hole Distance1.97"
Mounting Hole Distance - Width1.38"
Mounting PositionVertical
Number Of Auxillary Contacts1
Number Of Normally Open Main Contacts3
Number Of Poles3
Terminal Connection TypeSpring Loaded Terminals
Width1.97" , 45 mm
Auxiliary Contacts Included1NO
Coil Voltage230V AC
Contactor StyleIEC
Frame SizeS00
Full Load Current - Inductive16A
Full Load Current - Resistive22A
Horsepower @ Single Phase - 120v Ac1 hp
Horsepower @ Single Phase - 240v Ac2 hp
Horsepower @ Three Phase - 208v Ac3 hp
Horsepower @ Three Phase - 240v Ac5 hp
Horsepower @ Three Phase - 600v Ac10 hp
Integrated Surge SuppressionNo
Ip RatingIP20
Main Power Pole Contact Form3NO
Maximum Operating Temperature140°F
Maximum Voltage Rating690V AC
Mechanical Operating Durability30000000
Minimum Operating Temperature-13°F
Mounting PostionVertical
Nema Enclosure RatingNo Enclosure
Nominal Coil Voltage @ 60hz240V AC
Overall Depth2.92"
Overall Height3 2/25"
Overall Width1.97"
PhaseThree
Reversing CapabilityNon-Reversing
SeriesSIRIUS 3RT20
StandardsREACH ART 33, WEEE (2012/19/EU)
Wire Termination TypeSpring Loaded

Shipping Info:

Ship weight (kg) 0.252
Ship height (cm)7.82
Ship length (cm)7.42
Ship width (cm)5
Country of OriginDE

Product Variants

ProductModelNumber Of PolesReversing CapabilityAuxiliary Contacts IncludedIntegrated Surge SuppressionFrame SizeHeightHp @ 1 Phase - 240vHp @ 3 Phase - 240vPrice
SIEMENS 3RT20182AF02 Contactor, 110 VAC Coil Volts, 16 A Full Load Amps-Inductive, 1Nc | CU2RYY 3RT20182AF023----70 mm2 hp5 hp€158.91
SIEMENS 3RT20181AF01 Contactor, 110 VAC Coil Volts, 16 A Full Load Amps-Inductive, 1No | CU2RYZ 3RT20181AF013----3 2/25"2 hp5 hp€168.45
SIEMENS 3RT20182AF01 Contactor, 110 VAC Coil Volts, 16 A Full Load Amps-Inductive, 1No | CU2RZA 3RT20182AF013----70 mm2 hp5 hp€158.71
SIEMENS 3RT20271AG20 Contactor, 110 VAC Coil Volts, 32 A Full Load Amps-Inductive, 1No/1Nc | CU2RZB 3RT20271AG203----85 mm5 hp10 hp€322.78
SIEMENS 3RT20271AF00 Contactor, 110 VAC Coil Volts, 32 A Full Load Amps-Inductive, 1No/1Nc | CU2RZC 3RT20271AF003----85 mm5 hp10 hp€331.42
SIEMENS 3RT20181AK610UA0 Contactor, 110/120 VAC Coil Volts, 18 A Full Load Amps-Inductive, 1No | CU2RZD 3RT20181AK610UA03----2 2/5"2 hp3 hp€247.21
SIEMENS 3RT20272AK60 Contactor, 110/120 VAC Coil Volts, 32 A Full Load Amps-Inductive, 1No/1Nc | CU2RZE 3RT20272AK603----102 mm5 hp10 hp€350.37
