SEALMASTER CRPS-PN22 | BE2TYL

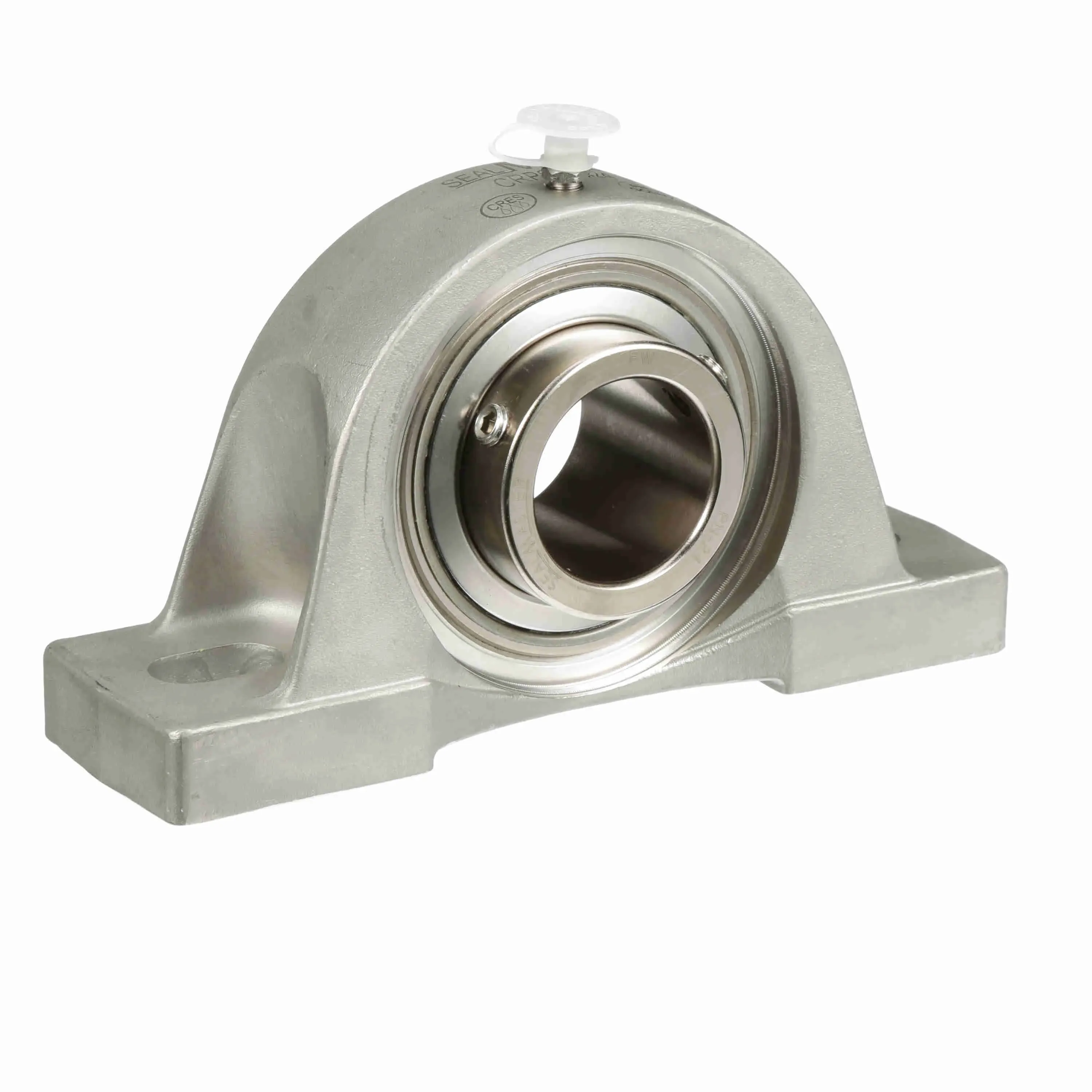

SEALMASTER CRPS-PN22 Pillow Block Ball Bearing Unit, 2-Bolt Base, 1-3/8 Inch Bore

Item: BE2TYL Model: CRPS-PN22Cross Ref: 713915
In Stock

Get it by Friday, Jun 13

€347.05 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Base Length6 14/25"
Base To Center Height1 7/8"
Base Width1 22/25"
Bearing Insert FinishPhosphorus Nickel Coated
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bolt Size1/2"
Bolt Spacing5"
Bolt Spacing Max5.31"
Bolt Spacing Min4.69"
Bore Dia.1 3/8"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Centerline To Outermost Bearing Face1"
Dynamic Load Capacity5782 lbs.
End CapYes
Fixed Vs. ExpansionFixed
Foot Height0.63"
Grease Fitting Thread Size1/4"-28
Housing BaseSolid
Housing ColorSilver
Housing ConstructionOne Piece
Housing MaterialStainless Steel
Housing StylePillow Block
Housing TypePillow Block, Two Bolt
Htc8483.20.8040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter1.851"
InsertPN-22
Ip RatingIP69K
Length Through Bore1.685"
Lubrication TypeCalcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Max. Operating Temperature220°F
Max. Speed2000 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
OptionsCorrosion Resistant
Outer Ring Land ProfileStandard
Overall Height3 3/4"
Overall Length5 1/2"
Overall Width1 22/25"
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeMulti-Lip Contact Seal
Shaft Locking TypeSet Screw
Size Code2-17
Static Load Rating3493 lbs.
Vibration Frequency Fundamental Train0.0066 cPS
Vibration Frequency Inner Ring Defect0.0905 cPS
Vibration Frequency Outer Ring Defect0.0595 cPS
Vibration Frequency Roller Spin0.0386 cPS

Shipping Info:

Ship weight (kg) 2.025
Ship height (cm)5.23
Ship length (cm)11.13
Ship width (cm)17.3
