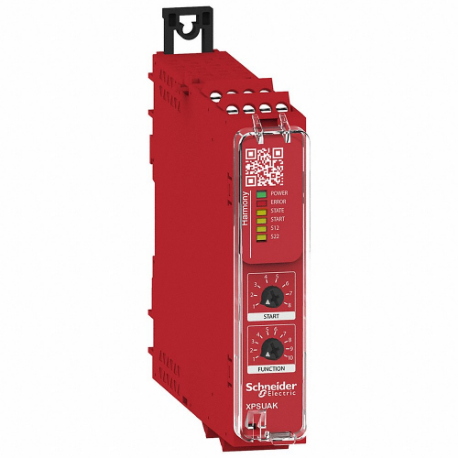

SCHNEIDER ELECTRIC XPSUAK12AP Force, DIN-Rail Relay Mounting, 24 VAC/DC, 2 Inputs, Screw | CU2DKV

SCHNEIDER ELECTRIC XPSUAK12AP Force, DIN-Rail Relay Mounting, 24 VAC/DC, 2 Inputs, Screw

Item: CU2DKV Model: XPSUAK12APCross Ref: 787KV8
In Stock

Get it by Wednesday, Jun 11

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€333.64 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemRelay
Ac Contact Rating1A @ 15V (NC), 3A @ 15V (No), 3A @ 1V (NC), 5A @ 1V (No)
ApplicationEmergency Stops
Body Depth4 18/25"
Body Depth - Relay4 18/25"
Body Height3.94"
Body Width0.89"
Conventional Free Air Thermal Amps8A
Dc Contact Rating1A @ 13V (Nc), 3A @ 13V (No), 3A @ 1V (Nc), 5A @ 1V (No)
Delay TypeAdjustable
Depth120 mm
Electrical ConnectionScrew , Screw Terminal, Terminal Block Removable
Environmental ProtectionDust, Splash Resistant
For Use WithEmergency Stop, Guard Switch Magnetic Switch, NPN Sensors, PNP Sensors, Proximity Safety Switch, RFID Safety Switch, Safety Light Curtain Or Sensing Mat/Edges
Frequency50/60 Hz
Height100 mm
Input Power Consumption (burden)2 W
Input Protection TypeElectronic, Internal
Input Voltage24V AC/DC
Ip RatingIP20, IP40, IP54
Max. Operating Temp.131°F
Maximum Line Resistance500 ohms
Min. Operating Temp.-13°F
Number Of Input Channels2
Overall Depth3.9"
Overall Height - Relay3.94"
Power Consumption2 W
Product TypeSafety Module
Relay Mounting StyleDin Rail
Safety Reliability DataDCAVG >= 99% Conforming To ISO 13849-1, HFT = 1 Conforming To IEC 61508-1, HFT = 1 Conforming To IEC 62061, MTTFD > 30 yrs. Conforming To ISO 13849-1, PFHD = 1.13E-09 Conforming To IEC 61508-1, PFHD = 1.13E-09 Conforming To IEC 62061, PFHD = 1.13E-09 Conforming To ISO 13849-1, SFF > 99% Conforming To IEC 61508-1, SFF > 99% Conforming To IEC 62061, TYPE = B Conforming To IEC 61508-1
Time Delay0.5 sec., 2 sec., 4 sec.
Width22.5 mm
Electrical Connection TypeScrew
StandardsCCC, CULUS LISTED, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV CERTIFIED

Shipping Info:

Ship weight (kg) 0.2718
Ship height (cm)10.01
Ship length (cm)11.99
Ship width (cm)2.26
Country of OriginID

Product Variants

ProductModelAc Contact RatingDc Contact RatingPower ConsumptionBody HeightBody WidthInput VoltageMax. Operating Temp.Delay TypePrice
SCHNEIDER ELECTRIC XPSUAK32AP Force, DIN-Rail Relay Mounting, 16 Pins/Terminals, 48 to 240 VAC/DC, 2 Inputs | CU2DFD XPSUAK32AP8A @ 250VNot Available3 W3.94"0.89"48-240V AC/DC131°FFixed€358.96
SCHNEIDER ELECTRIC XPSUAF33AP Force, DIN-Rail Relay Mounting, 16 Pins/Terminals, 48 to 240 VAC/DC, 2 Inputs | CU2DFE XPSUAF33AP8A @ 250VNot Available3 W3.94"0.89"48-240V AC/DC185°FFixed€680.45
SCHNEIDER ELECTRIC XPSUAF13AP Force, DIN-Rail Relay Mounting, 16 Pins/Terminals, 24 VAC/DC, 2 Inputs, Screw | CU2DKU XPSUAF13AP8A @ 250VNot Available2 W3.94"0.89"24V AC/DC185°FFixed€344.33
SCHNEIDER ELECTRIC XPSUS12AP Force, DIN-Rail Relay Mounting, 24 VAC/DC, 2 Inputs, Screw, 50/60 Hz | CU2DKW XPSUS12AP1A @ 15V (NC), 3A @ 15V (No), 3A @ 1V (NC), 5A @ 1V (No)1A @ 13V (Nc), 3A @ 13V (No), 3A @ 1V (Nc), 5A @ 1V (No)2 W3.94"0.89"24V AC/DC185°FAdjustable€353.89
SCHNEIDER ELECTRIC XPSUAT13A3AP Force, DIN-Rail Relay Mounting, 24 VAC/DC, 3 Inputs, Screw | CU2DKX XPSUAT13A3AP1A @ 15V (NC), 3A @ 15V (No), 3A @ 1V (NC), 5A @ 1V (No)1A @ 13V (Nc), 3A @ 13V (No), 3A @ 1V (Nc), 5A @ 1V (No)3 W3.94"1.77"24V AC/DC185°FAdjustable€586.89
SCHNEIDER ELECTRIC XPSUDN13AP Force, DIN-Rail Relay Mounting, 24 VAC/DC, Screw | CU2DKY XPSUDN13AP1A @ 15V (NC), 3A @ 15V (No), 3A @ 1V (NC), 5A @ 1V (No)1A @ 13V (Nc), 3A @ 13V (No), 3A @ 1V (Nc), 5A @ 1V (No)4.5 W3.94"1.77"24V AC/DC185°FAdjustable€470.32
