SCHNEIDER ELECTRIC XB6ECF1B2P Push Button, Push Button, White, 24V DC, Led, 2 Co, Square Flush Button | CU2DAC

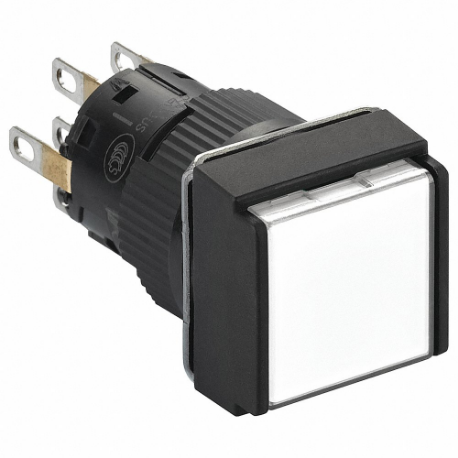

SCHNEIDER ELECTRIC XB6ECF1B2P Push Button, White, 24V DC, Led, 2 Co, Square Flush Button

Item: CU2DAC Model: XB6ECF1B2PCross Ref: 55WP39
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€27.39 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPush Button
Basic MaterialPlastic
Bezel MaterialPlastic
ColorWhite
Contact Form2 CO
Lamp Module Voltage24V DC
Lamp TypeLED
Lamp Voltage24V DC
LegendNo Legend
Legend/background ColorNo Legend
Nema Contact Rating DesignationAC-12/DC-12
Number Of Operators1
Terminal ConnectionQuick Connect
Type Of OperatorSquare Flush Button
Ac Contact Rating0.5A @ 240V, 1A @ 120V
ActionMaintained
Dc Contact Rating0.15 A @ 125 V, 0.2 A @ 125 V, 0.7 A @ 24 V, 1 A @ 24 V
Display Qty1
Head MaterialPlastic
Head/lens ColorWhite
Ip RatingIP65
Lamp Bulb TypeLED
Lamp Module TypeFull Voltage
Lamp Voltage - Maximum24V DC
Maintained Action ReleaseTwist
Manufacturer Warranty Length18 Months
Mechanical Operating Durability2.5 x 10^5
Nema Enclosure RatingNEMA 1, NEMA 12
Number Of Indicator Lights0
Operating Temperature - Maximum131°F
Operating Temperature - Minimum14°F
Operator IlluminationIlluminated
Operator MaterialPlastic
Operator Voltage Rating - Maximum24V DC
Overall Depth1.57"
Overall Height0.71"
Overall Width0.71"
Panel Mounting Hole Diameter16 mm
Product TypePush Button Operators
Push Button StyleFlush
SeriesXB6E Series
StandardsCCC, CSA C22.2 NO.14, CURUS, IEC 60947-1, IEC 60947-5-1, JIS C4520, JIS C852, REACH, ROHS, UL 508, WEEE

Shipping Info:

Ship weight (kg) 0.0117
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginCN
