SCHNEIDER ELECTRIC 9001SK2L35GH13 Illuminated Push Button 30mm 1no/1nc Green | AG7DNX 5KCH6

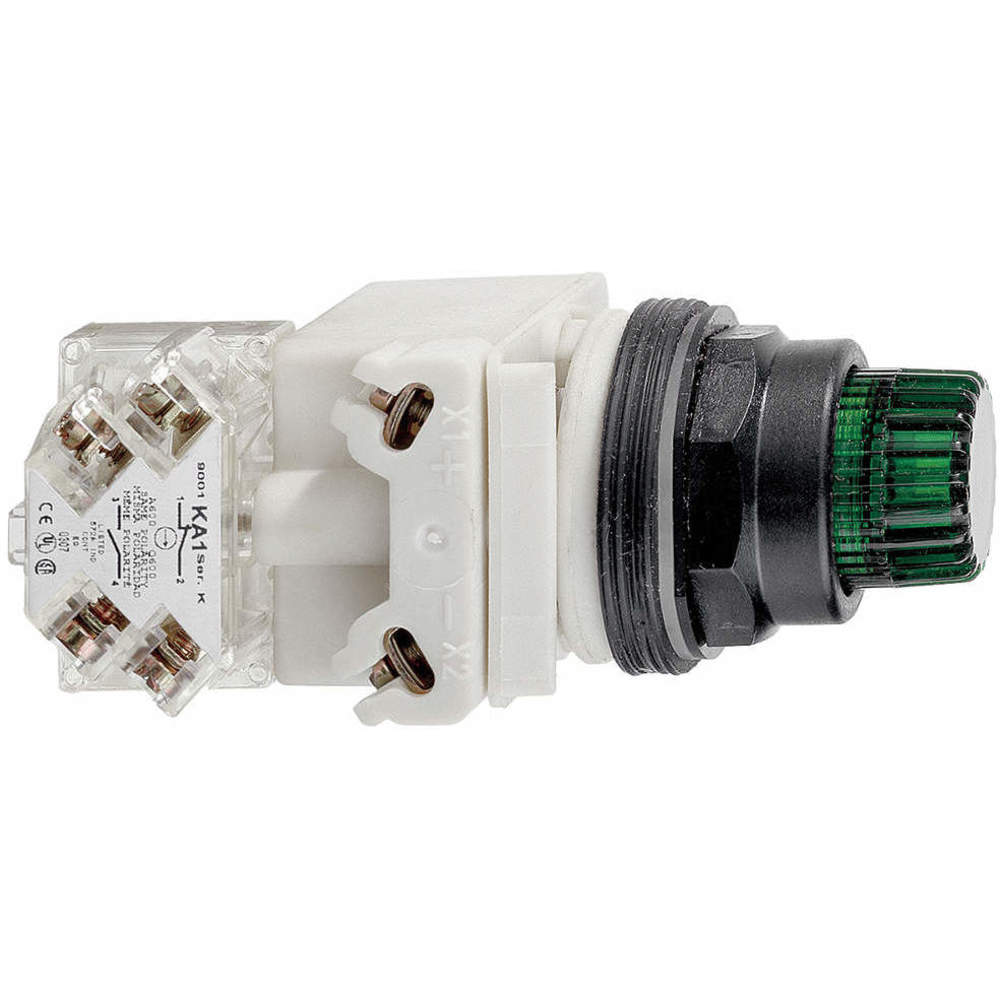

SCHNEIDER ELECTRIC 9001SK2L35GH13 Illuminated Push Button 30mm 1no/1nc Green

Item: AG7DNX Model: 9001SK2L35GH13Cross Ref: 5KCH6
In Stock

Get it by Wednesday, Jun 11

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€350.65 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemIlluminated Push Button
Action TypeMomentary
Basic MaterialPlastic
Bezel MaterialCorrosion Resistant Thermoplastic
ColorGreen
Contact Rating10A @ 600V AC
Head MaterialPlastic
Lamp Module TypeFull Voltage
Lamp Module Voltage24V AC/DC
Lamp TypeIncandescent
Lamp Voltage24V AC/DC
Nema Contact Rating DesignationA600/Q600
Nema RatingNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6
Number Of Operators1
Terminal ConnectionPressure Plate
Type Of OperatorNo Guard, Round
Ac Contact Rating1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
ActionMomentary
Contact FormSPDT
Head/lens ColorGreen
Lamp Bulb TypeIncandescent
Manufacturer Warranty Length18 Months
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Operator IlluminationIlluminated
Operator MaterialPlastic
Overall Depth2.8"
Overall Height1.65"
Overall Width2.13"
Panel Mounting Hole Diameter30 mm
Product TypePush Button Operators
Push Button StyleFlush
StandardsCSA C22.2 NO.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, ROHS, UL 508, WEEE

Shipping Info:

Ship weight (kg) 0.1755
Ship height (cm)7.62
Ship length (cm)13.97
Ship width (cm)13.72
HS code8536509031
Country of OriginMX

Product Variants

ProductModelLamp Module TypeLamp VoltageLamp Module VoltageLamp TypeColorAction TypeTerminal ConnectionNumber Of OperatorsPrice
SCHNEIDER ELECTRIC 9001SKR9P1GH13 Illuminated Push Button 30mm 1no/1nc Green | AF9JLA 2NML2 9001SKR9P1GH13Transformer6V AC120V ACIncandescentGreenPush/PullPressure Plate1€410.89
SCHNEIDER ELECTRIC 9001SKR9P1RH13 Illuminated Push Button 30mm 1no/1nc Red | AF9JLC 2NML4 9001SKR9P1RH13Transformer6V AC120V ACIncandescentRedPush/PullPressure Plate1€410.89
SCHNEIDER ELECTRIC 9001SK1L1GH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QVN 45C572 9001SK1L1GH13Transformer6V AC120V ACIncandescentGreenMomentaryPressure Plate1€310.61
SCHNEIDER ELECTRIC 9001SK1L1RH13 Illuminated Push Button 30mm 1no/1nc Red | AG6QVP 45C573 9001SK1L1RH13Transformer6V AC120V ACIncandescentRedMomentaryPressure Plate1€310.61
SCHNEIDER ELECTRIC 9001SK1L35GH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QVU 45C578 9001SK1L35GH13Full Voltage24V AC/DC24V AC/DCLEDGreenMomentaryPressure Plate1€280.82
SCHNEIDER ELECTRIC 9001SK1L35RH13 Illuminated Push Button 30mm 1no/1nc Red | AG6QVY 45C583 9001SK1L35RH13Full Voltage24V AC/DC24V AC/DCIncandescentRedMomentaryPressure Plate1€272.90
SCHNEIDER ELECTRIC 9001SK1L38LGGH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QWC 45C587 9001SK1L38LGGH13Full Voltage120V AC120V ACLEDGreenMomentaryPressure Plate1€316.46
