SCHNEIDER ELECTRIC 9001SKR9P1RH13 Illuminated Push Button 30mm 1no/1nc Red | AF9JLC 2NML4

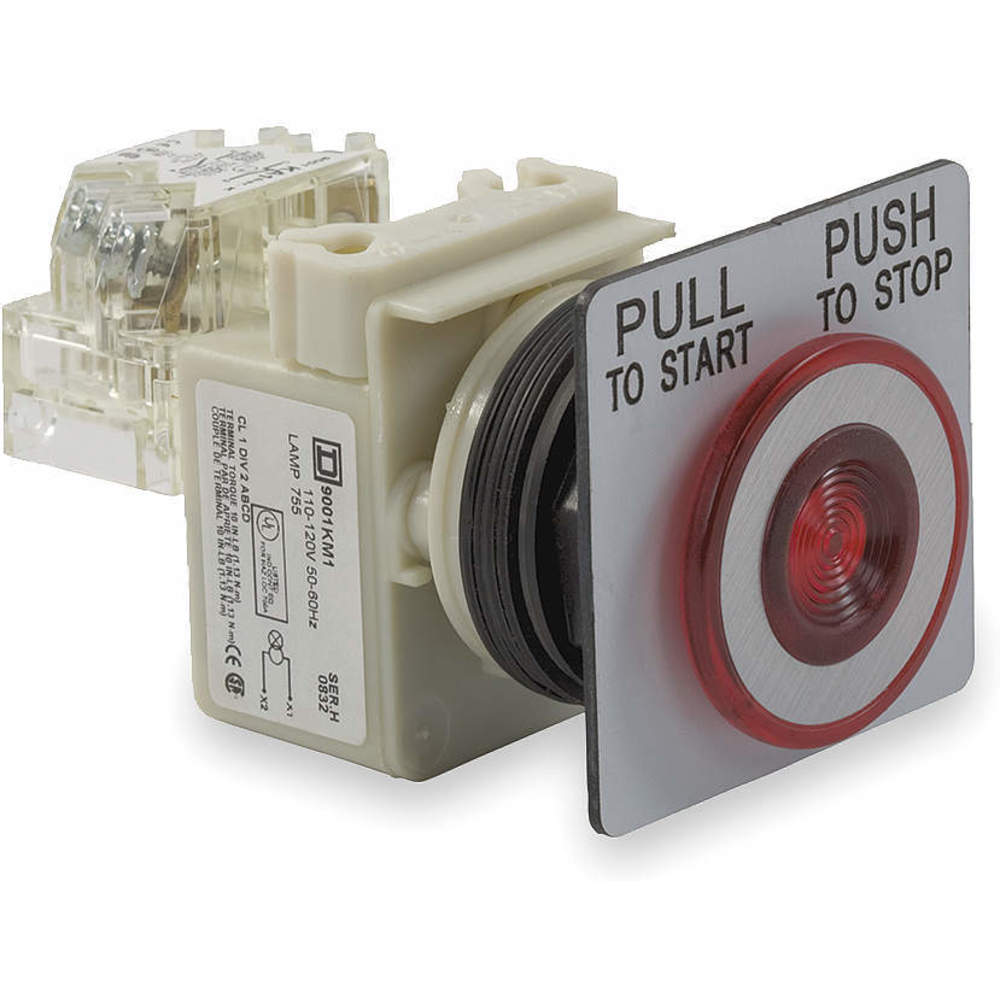

SCHNEIDER ELECTRIC 9001SKR9P1RH13 Illuminated Push Button 30mm 1no/1nc Red

Item: AF9JLC Model: 9001SKR9P1RH13Cross Ref: 2NML4
In Stock

Get it by Tuesday, Jun 10

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€436.56 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemIlluminated Push Button
Action TypePush/Pull
Basic MaterialPlastic
Bezel MaterialCorrosion Resistant Thermoplastic
Cap/operator Or Lens ColourRed
ColorRed
Contact Rating10A @ 600V AC
Conventional Free Air Thermal Current10A
Device PresentationComplete Product
Head MaterialPlastic
Lamp Module TypeTransformer
Lamp Module Voltage120V AC
Lamp TypeIncandescent
Lamp Voltage6V AC
Mounting Diameter30 mm
Nema Contact Rating DesignationA600/Q600
Nema RatingNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6
Number Of Operators1
Shape Of Screw HeadCross Slotted
Shape Of Signaling Unit HeadRound
Terminal ConnectionPressure Plate
Type Of OperatorMushroom Head
Ac Contact Rating1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
ActionMaintained
Contact FormSPDT
Head/lens ColorRed
Lamp Bulb TypeIncandescent
Legend Background ColorWhite
Legend ColorBlack
Manufacturer Warranty Length18 Months
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Operator IlluminationIlluminated
Operator MaterialPlastic
Panel Mounting Hole Diameter30 mm
Product TypePush Button Operators
Push Button StyleMushroom Head
StandardsCSA C22.2 NO.14, EN/IEC 60947-5-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 60536, IEC 60947-1, IEC 60947-5-4, JIS C4520, JIS C852, NF C 20-010, REACH, UL 508, WEEE

Shipping Info:

Ship weight (kg) 0.2025
Ship height (cm)6.35
Ship length (cm)11.43
Ship width (cm)5.33
HS code8536509031
Country of OriginMX

Product Variants

ProductModelLamp Module TypeLamp VoltageLamp Module VoltageLamp TypeColorAction TypeTerminal ConnectionNumber Of OperatorsPrice
SCHNEIDER ELECTRIC 9001SKR9P1GH13 Illuminated Push Button 30mm 1no/1nc Green | AF9JLA 2NML2 9001SKR9P1GH13Transformer6V AC120V ACIncandescentGreenPush/PullPressure Plate1€410.89
SCHNEIDER ELECTRIC 9001SK1L1GH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QVN 45C572 9001SK1L1GH13Transformer6V AC120V ACIncandescentGreenMomentaryPressure Plate1€310.61
SCHNEIDER ELECTRIC 9001SK1L1RH13 Illuminated Push Button 30mm 1no/1nc Red | AG6QVP 45C573 9001SK1L1RH13Transformer6V AC120V ACIncandescentRedMomentaryPressure Plate1€310.61
SCHNEIDER ELECTRIC 9001SK1L35GH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QVU 45C578 9001SK1L35GH13Full Voltage24V AC/DC24V AC/DCLEDGreenMomentaryPressure Plate1€280.82
SCHNEIDER ELECTRIC 9001SK1L35RH13 Illuminated Push Button 30mm 1no/1nc Red | AG6QVY 45C583 9001SK1L35RH13Full Voltage24V AC/DC24V AC/DCIncandescentRedMomentaryPressure Plate1€272.90
SCHNEIDER ELECTRIC 9001SK1L38LGGH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QWC 45C587 9001SK1L38LGGH13Full Voltage120V AC120V ACLEDGreenMomentaryPressure Plate1€316.46
SCHNEIDER ELECTRIC 9001SK2L1GH13 Illuminated Push Button 30mm 1no/1nc Green | AG7DNT 5KCH2 9001SK2L1GH13Transformer6V AC120V ACIncandescentGreenMomentaryPressure Plate1€294.67
