PARKER 103-0750062-NT-50 Tubing, Fep, Natural, 5/8 Inch Id, 3/4 Inch OD, 50 Ft Length, Shore D 55 | CT7KUL

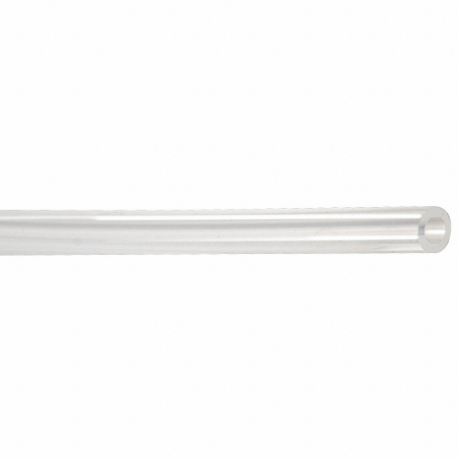

PARKER 103-0750062-NT-50 Tubing, Fep, Natural, 5/8 Inch Id, 3/4 Inch OD, 50 Ft Length, Shore D 55

Item: CT7KUL Model: 103-0750062-NT-50Cross Ref: 53XL44
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€1,200.08 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemTubing
ApplicationBeverage, Chemical, Food, Water , Beverages, Chemicals, Food, Water
AutoclavableYes
Bend Radius6"
Burst Pressure340 psi
ClaritySemi Clear
ColorBeige , Natural , Translucent
Compatible ChemicalsAcetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride
FeaturesChemically Inert, Low Coefficient Of Friction, Non-Wetting, Self-Extinguishing, Weldable
Fitting CompatibilityCompression, Push To Connect , Compression, Push-To-Connect
FlexibilityFlexible
Food And Beverage CompatibilityBeer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils And Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar
HardnessShore D 55
Inside Dia.5/8"
Jacket ColorNo Jacket
Jacket MaterialNo Jacket
Length50 ft.
MaterialFEP , Fluorinated Ethylene Propylene
Material Trade NameNot Applicable
Material Trade NumberNot Applicable
Max. Operating Temp.400°F
Max. Pressure85 psi
Maximum Vacuum Pressure28 in. hg
Min. Operating Temp.-100°F
Outside Dia.3/4"
Peristaltic Pump CompatibleNo
Petroleum Product CompatibilityKerosene, Mineral Oil
Pex TypeNot Applicable
ReinforcementNon Reinforced , Not Reinforced
Resistance PropertiesChemical Resistant, Corrosion Resistant, Heat Resistant
Stripe ColorNo Stripe
System Of MeasurementInch
Tube Bend Radius6"
Tube FormStraight
Vacuum RatedYes
Wall Thickness0.62"
Chemical CompatibilityAcetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride
Inside Diameter5/8"
Maximum Operating Pressure85 psi @ 73°F
Maximum Operating Temperature400°F
Minimum Operating Temperature-100°F
Outside Diameter3/4"
Overall Length50 ft.
Standards21 CFR 177.1550, ASTM D2116, UL 94 V-0 COMPLIANT, USP CLASS VI
Weight Per Foot0.125 lbs.-ft.

Shipping Info:

Ship weight (kg) 3.15
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelOutside Dia.Inside Dia.Wall ThicknessColorClarityReinforcementFitting CompatibilityBurst PressurePrice
PARKER 103-0563031-NT-100 Tubing, Fep, Clear, 1/2 Inch Id, 9/16 Inch OD, 100 Ft Length, Shore D 55 | CT7KRR 103-0563031-NT-1000.562"1/2"0.031"ClearClear-Compression320 psi€771.10
PARKER 103-0375062-NT-25 Tubing, Fep, Clear, 1/4 Inch Id, 3/8 Inch OD, 25 Ft Length, Shore D 55 | CT7KRT 103-0375062-NT-253/8"1/4"0.062"ClearClear-Compression1160 psi€280.39
PARKER 103-0500062-NT-100 Tubing, Fep, Clear, 3/8 Inch Id, 1/2 Inch OD, 100 Ft Length, Shore D 55 | CT7KRU 103-0500062-NT-1001/2"3/8"0.062"ClearClear-Compression840 psi€1,578.43
PARKER 103-0500062-NT-25 Tubing, Fep, Clear, 3/8 Inch Id, 1/2 Inch OD, 25 Ft Length, Shore D 55 | CT7KRV 103-0500062-NT-251/2"3/8"0.062"ClearClear-Compression840 psi€387.16
PARKER 103-0375031-NT-100 Tubing, Fep, Clear, 5/16 Inch Id, 3/8 Inch OD, 100 Ft Length, Shore D 55 | CT7KRW 103-0375031-NT-1003/8"0.312"0.031"ClearClear-Compression520 psi€639.32
PARKER 103-0438062-NT-100 Tubing, Fep, Clear, 5/16 Inch Id, 7/16 Inch OD, 100 Ft Length, Shore D 55 | CT7KRX 103-0438062-NT-1000.438"0.312"0.062"ClearClear-Compression1000 psi€1,290.73
PARKER 103-0500031-NT-100 Tubing, Fep, Clear, 7/16 Inch Id, 1/2 Inch OD, 100 Ft Length, Shore D 55 | CT7KRY 103-0500031-NT-1001/2"0.438"0.031"ClearClear-Compression360 psi€682.54
