MILLER ELECTRIC

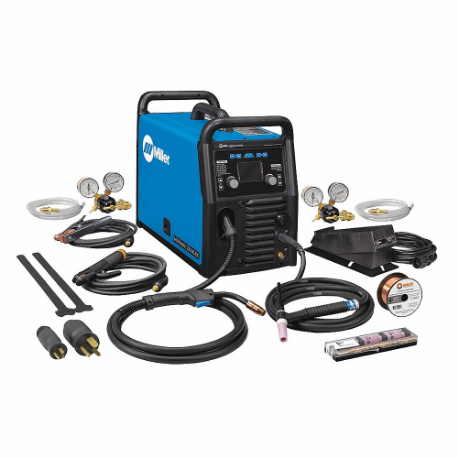

MILLER ELECTRIC 907757 Multiprocess Welder, Multimatic 220 Ac/Dc, Ac/Dc, Mig/Stick/Tig Pack

Item: CT3GEG Model: 907757Cross Ref: 494D92

See variants (11)

In Stock

Check Availability

Get it by Tuesday, Jun 17

€6,304.17 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Multiprocess Welder
Color	Blue
Enhanced Process	Pulsed TIG
For Material Type	Aluminum, Stainless Steel, Steel
For Wire Type	Flux-Cored, Solid
Includes	(2) Contact Tips For 0.03 In Wire(2) Flow Gauge/Regulators & Hoses For Argon Or Argon/Carbon Dioxide Mix10 Ft Mdx-100 Mig Gun10 Ft Work Cable & Clamp With 25 Mm Dinse-Style Connector12.5 Ft Weldcraft A-150 (Wp-17) Tig Torch With 25 Mm Dinse-Style Connectorak2C Tig Consumables Kitelectrode Holder With 13 Ft Cable & 25 Mm Dinse-Style Connectorhobart Spool Of 0.03 In Solid Mig Wirequick Select Drive Roll For 0.024 In Or 0.03/0.035 In Solid Wire & 0.03/0.035 In Flux-Cored Wirerfcs-14 Hd Foot Control With 20 Ft Cord
Input Current	31.3 A @ 240V AC (Single-Phase)
Input Frequency	50/60 Hz
Input Voltage	110/115/120/220/230/240V AC
Maximum Amperage (mig)	230A
Maximum Amperage (stick)	200A
Maximum Amperage (tig)	210A
Maximum Wire Feed Speed	600 in./min.
Minimum Amperage (mig)	30A
Minimum Amperage (stick)	30A
Minimum Wire Dia.	0.03", 0.03"
Minimum Wire Feed Speed	60 in./min.
Model	907757
Open Circuit Voltage	46V DC
Overall Depth	21 1/2"
Overall Height	17 1/2"
Overall Width	11 1/4"
Phase	1.0
Plug Type	NEMA 5-15P, NEMA 6-50P
Polarity	AC/DC Adapter
Power Cord Included	Yes
Power Cord Length	6.5 ft.
Process	Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Promotion Restriction	Not Eligible For Promotion
Pulse Frequency	0 pulses/sec. to 150 pulses/sec.
Rated Output @ Duty Cycle (mig)	105 A @ 19.2 V, 60%170 A @ 21.5 V, 40%200 A @ 24 V, 20%
Rated Output @ Duty Cycle (stick)	200A @ 28.4V, 15%, 90A @ 23.6V, 40%
Rated Output @ Duty Cycle (tig)	130A @ 15.2V, 40%, 210A @ 18.4V, 20%
Remote Connection Type	14-Pin (Miller)
Tig Arc Control Feature	Adjustable AC Balance, Adjustable AC Frequency
Tig Arc Start Feature	High Frequency Start, Lift Arc Start
Welding Power Source Type	CC/CV
Wire Dia.	0.035"
Wire Type	Flux Cored, Solid Wire
For Maximum Material Thickness	3/8" (Steel)
For Minimum Material Thickness	24 ga. (Steel)
Maximum Input Current	31.3A @ 240V AC (Single Phase)
Maximum Wire Diameter	0.035" (Flux Cored), 0.035" (Solid)
Minimum Amperage (tig)	20A
Minimum Wire Diameter	0.03" (Flux-Cored), 0.03" (Solid Wire)
Weight	56 lbs.
Welder Series	Multimatic 220 AC/DC Series

Shipping Info:

Ship weight (kg)	42.3
Ship height (cm)	44.45
Ship length (cm)	54.61
Ship width (cm)	28.58
Country of Origin	US

Product Variants

Model	Phase	For Wire Type	Plug Type	Wire Dia.	Process	Input Frequency	Polarity	Maximum Amperage (tig)	Price
951684	1	-	-	-	-	-	-	-	€5,459.78
907161	-	Aluminum, Flux-Cored, Solid	Bare Leads	2/5"	-	-	-	-	€9,015.37
951847	1	Aluminum, Flux-Cored, Solid	NEMA 6-50P	-	-	-	-	-	€5,945.90
907693	1.0	Flux Cored, Solid	NEMA 5-15P, NEMA 6-50P	0.035"	Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)	50/60 Hz	DC	210A	€3,030.40
951846	1.0	Aluminum Flux, Cored Solid	6-50P	0.035"	Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)	50/60 Hz	DC	210A	€4,697.87
907728	1.0	Aluminum, Flux-Cored, Solid	Bare Leads	0.045"	Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)	50/60 Hz	DC	275A	€6,421.84
951768	1.0	Aluminum, Flux-Cored, Solid	Bare Leads	0.045"	Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)	50/60 Hz	DC	275A	€8,255.75
