LEESON

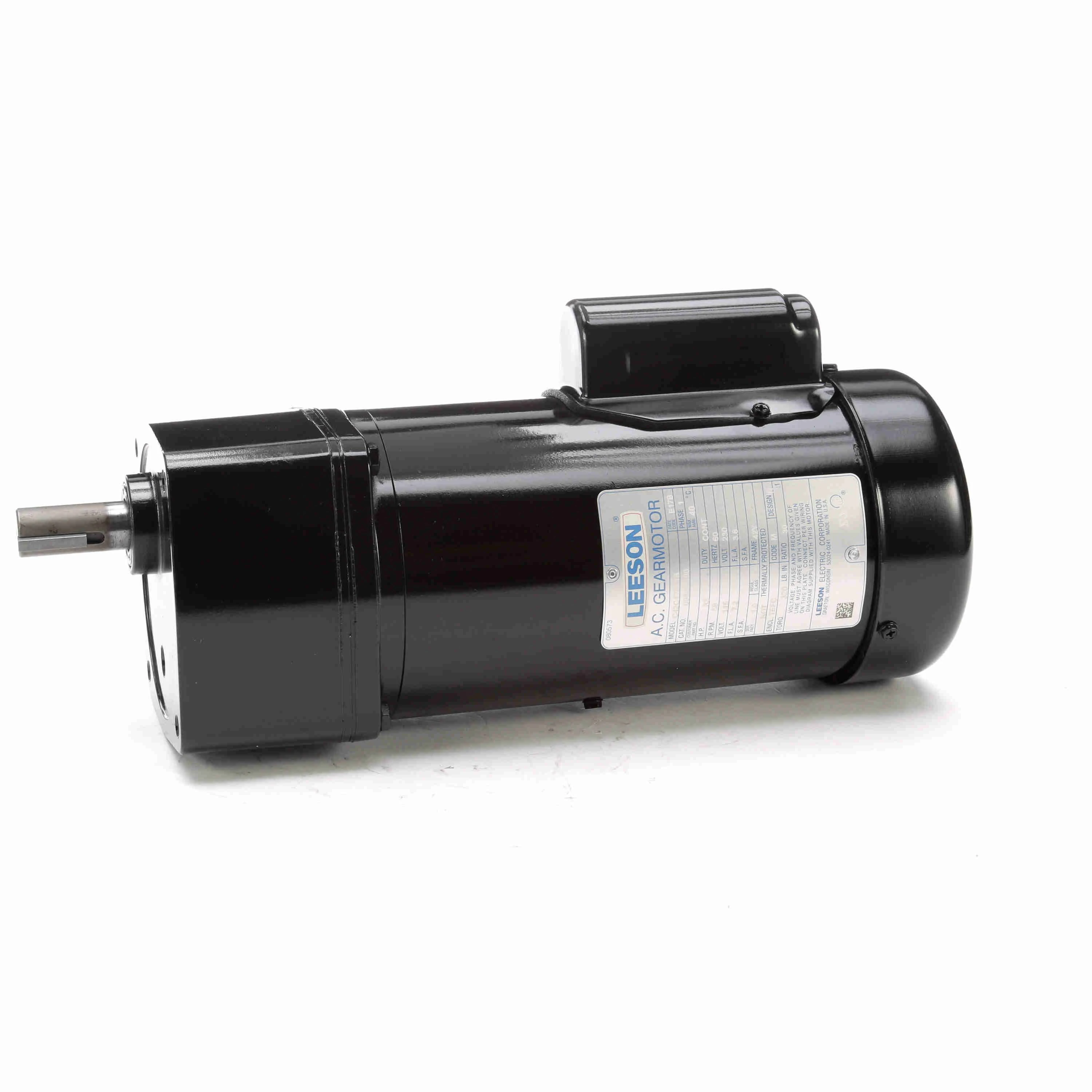

LEESON 096049.00 C42C17FZ4B Parallel Shaft Gearmotor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 58 RPM

Item: CR8PLZ Model: 096049.00Cross Ref: 794AL1 / C42C17FZ4B

See variants (7)

In Stock

Check Availability

Get it by Friday, Jun 13

€1,176.42 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	AC Gearmotor
Bearing Type	Needle
Brake Type	None
Capacitor Required	Yes
Duty Rating	Continuous
Enclosure Type	Totally Enclosed Fan Cooled
Features	All Gearing Designed And Rated To Agma Class 9 Standards, All Needle Bearing Journals Are Precision Ground After Heat Treating To Provide Maximum Fit And Finish, All Rated For 60/50 Hz Operation Except Hi-Torque Single-Phase Which Are 60 Hz Only, And To Withstand Momentary Shock Overload Of 200%, But Motor Below The Reducer Should Be Avoided To Prevent Leakage Of Lubricant Into The Motor Should The Motor Shaft Seal Fail, Gears And Bearings Are Splash Lubricated With Permanent, Hardened For Maximum Load Capability, Heavy Duty Industrial Oil Seals Keep Lubricant In And Dirt Out, Heavy-Duty Gear Oil, High Carbon Alloy Output Shaft Provides Maximum Strength And Rigidity, Optional Conduit Box Available, Overhung Load Capacities Shown Are At Center Of Output Shaft, Oversized Output Bearings For Greater Overhung Load Capacity And Long Life, Precision Machined Gearing, Rugged Die Cast Aluminum Gear Housing For Maximum Gear And Bearing Support, Run Capacitor Supplied At No Additional Cost For Single Phase Designs, The
Frequency	60 Hz
Full Load Amps	7.2/3.6A
Gear Ratio	30:1
Housing Material	Die Cast Aluminum
Includes	Conduit Box
Includes Capacitor	Yes
Includes Junction/conduit Box	Yes
Input Hp	33/100 hp
Keyway Depth	0.188"
Keyway Length	1"
Keyway Type	Square
Keyway Width	1"
Length Less Shaft	12.57"
Lubrication	Heavy Duty Gear Oil
Max. Ambient Temp.	104°F
Max. Torque	320 lbs.-in.
Maximum Output Speed	58 RPM
Motor Frame Designation	42Y
Mounting Orientation	Horizontalvertical With Shaft Down
Mounting Type	Horizontal, Vertical Shaft Down
Nameplate Rpm	58 RPM
Nameplate Rpm Range	51-75 RPM
Number Of Output Shafts	1
Operating Voltage	115/230V AC
Output Shaft Dia.	3/4"
Output Shaft Length	1 5/8"
Overall Length	14.57"
Overall Width	6 24/25"
Overhung Load Capacity	300 lbs.-ft.
Rotation	CW/CCW
Seals	Heavy Duty Industrial
Service Factor	1
Shaft Orientation	Parallel
Starting Torque	320 lbs.-in.
Thermal Protection	None
Type	Capacitor Start
Voltage	115/230V AC
Full Load Current	7.2/3.6A
Input Horsepower	0.33 hp
Maximum Ambient Temperature	104°F
Maximum Torque	320 lbs.-in.
Motor Duty Class	Continuous
Motor Enclosure	Totally Enclosed Fan Cooled
Motor Insulation Class	Class F
Motor Type	Capacitor-Start
Mount Type	Horizontal or Vertical Shaft Down
Nameplate Speed	58 RPM
Output Shaft Diameter	3/4"
Phase	Single
Seal Type	Heavy Duty Industrial
Standards	CSA, UL

Shipping Info:

Ship weight (kg)	12.15
Ship height (cm)	27.64
Ship length (cm)	49.53
Ship width (cm)	26.52
Country of Origin	US

Product Variants

Model	Shaft Orientation	Nameplate Rpm Range	Max. Torque	Operating Voltage	Gear Ratio	Overhung Load Capacity	Base To Center Of Shaft	Direction Of Output	Price
M1125002.00	Inline	16-30 RPM	100 lbs.-in.	90V AC	60:1	155 lbs.-ft.	3"	Left Hand	€760.96
107008.00	Parallel	151-200 RPM	125 lbs.-in.	115/208-230V AC	11:1	500 lbs.-ft.	2.94"	-	€1,411.56
M1145138.00	Parallel	16-30 RPM	391 lbs.-in.	115/230V AC	103:1	399 lbs.-ft.	3 1/2"	-	€1,202.64
M1145142.00	Right Angle	76-100 RPM	75 lbs.-in.	115V AC	20:1	235 lbs.-ft.	1.67"	Right Hand	€1,309.08
M1135044.00	Right Angle	101-150 RPM	90 lbs.-in.	90V AC	20:1	-	-	-	€971.57
M1135040.00	Right Angle	201-250 RPM	25 lbs.-in.	90V AC	10:1	-	-	-	€893.90
M1125082.00	Right Angle	51-75 RPM	40 lbs.-in.	115/230V AC	30:1	185 lbs.-ft.	1 12/25"	Reversible	€864.55
