IFM O2I512 Multicode Reader, Wide Angle, Red Light, Ethernet, Pnp/Npn | CR4LQL

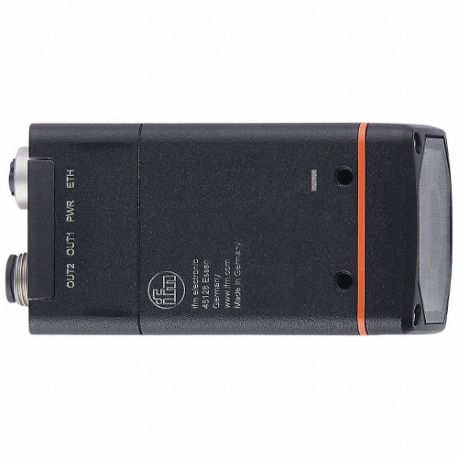

IFM O2I512 Multicode Reader, Wide Angle, Red Light, Ethernet, Pnp/Npn

Item: CR4LQL Model: O2I512Cross Ref: 801TF0
In Stock

Get it by Wednesday, Jun 11

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€2,743.74 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemReader
Communication InterfaceEthernet
Current Consumption600 mA
Depth45 mm
Dimensions86 mm x 45 mm x 45 mm
Electrical DesignPNP/NPN
FeaturesIntegrated Memory Stick, Several Codes And Text Lines Simultaneously
Field Of View184 mm x 138 mm @ 300 mm, 25 mm x 19 mm @ 35 mm, 304 mm x 228 mm @ 500 mm, 604 mm x 453 mm @ 1000 mm
Housing FinishDiecast Zinc Powder Coat
Image Resolution1280 px x 960 px
Legible FontsDocument, Dot Print, Industrial, OCR A, OCR B, Pharma, Semi, Universal
Length86 mm
Lens TypeWide Angle
Light TypeRed Light
Max. Ambient Temp.50°C
Maximum Reading Rate40 Hz
Min. Ambient Temp.-10°C
Minimum Operating Distance35 mm
Number Of Digital Inputs1
Number Of Digital Outputs2
Operating Voltage18-30V DC
Overall Width45 mm
Parameter SettingTeach Button, Via PC With IFM Vision Assistant
Protection FeaturesIP65, Overload Protection, Protection Class III, Reverse Polarity Protection, Short Circuit Protection
ProtocolProfinet, TCP/IP
Transmission Rate10 Mbps, 100 Mbps
Wavelength617 N-m
Housing MaterialDiecast Zinc Powder Coated
Overall Depth45 mm
Overall Length86 mm
StandardsCE, COMPLIES WITH 21 CFR 1040, EAC, EMC EN 61000-6-4, EN 60068-2-27, EN 60068-2-6, EN 61000-6-2, EN 61010-2-201, EN 62471, EN/IEC 60825-1:2007, EN/IEC60825-1:2014, UKCA
Type Of LightRed Light

Shipping Info:

Ship weight (kg) 0.5958
Ship height (cm)4.5
Ship length (cm)8.6
Ship width (cm)4.5
Country of OriginDE

Product Variants

ProductModelCurrent ConsumptionLight TypeMax. Ambient Temp.Operating VoltageOverall WidthWavelengthLens TypeMinimum Operating DistancePrice
IFM O2D924 Bar Light Illumination Unit, Bar, 10 mm x 150 mm Field, M12 Connector, 24VDC | CR4LQA O2D924460 mARed Light55°C24V DC13 mm617 N-m--€906.05
IFM O2D926 Bar Light Illumination Unit, Bar, 10 mm x 150 mm Field, M12 Connector, 24VDC | CR4LQB O2D926265 mAWhite Light55°C24V DC13 mm---€906.05
IFM O2D925 Bar Light Illumination Unit, Bar, 10 mm x 150 mm Field, M12 Connector, 24VDC | CR4LQC O2D925415 mAInfrared Light55°C24V DC13 mm875 N-m--€906.05
IFM O2D922 Bar Light Illumination Unit, Bar, 10 mm x 75 mm Field, M12 Connector, 24VDC | CR4LQD O2D922185 mAInfrared Light55°C24V DC13 mm875 N-m--€726.48
IFM O2D921 Bar Light Illumination Unit, Bar, 10 mm x 75 mm Field, M12 Connector, 24VDC | CR4LQE O2D921225 mARed Light55°C24V DC13 mm617 N-m--€726.48
IFM O2I501 Multicode Reader, Std, Infrared Light, Ethernet, Pnp/Npn | CR4LQF O2I501400 mAInfrared Light50°C18-30V DC45 mm850 N-mStandard85 mm€2,320.30
IFM O2I511 Multicode Reader, Std, Infrared Light, Ethernet, Pnp/Npn | CR4LQG O2I511600 mAInfrared Light50°C18-30V DC45 mm850 N-mStandard85 mm€2,511.96
