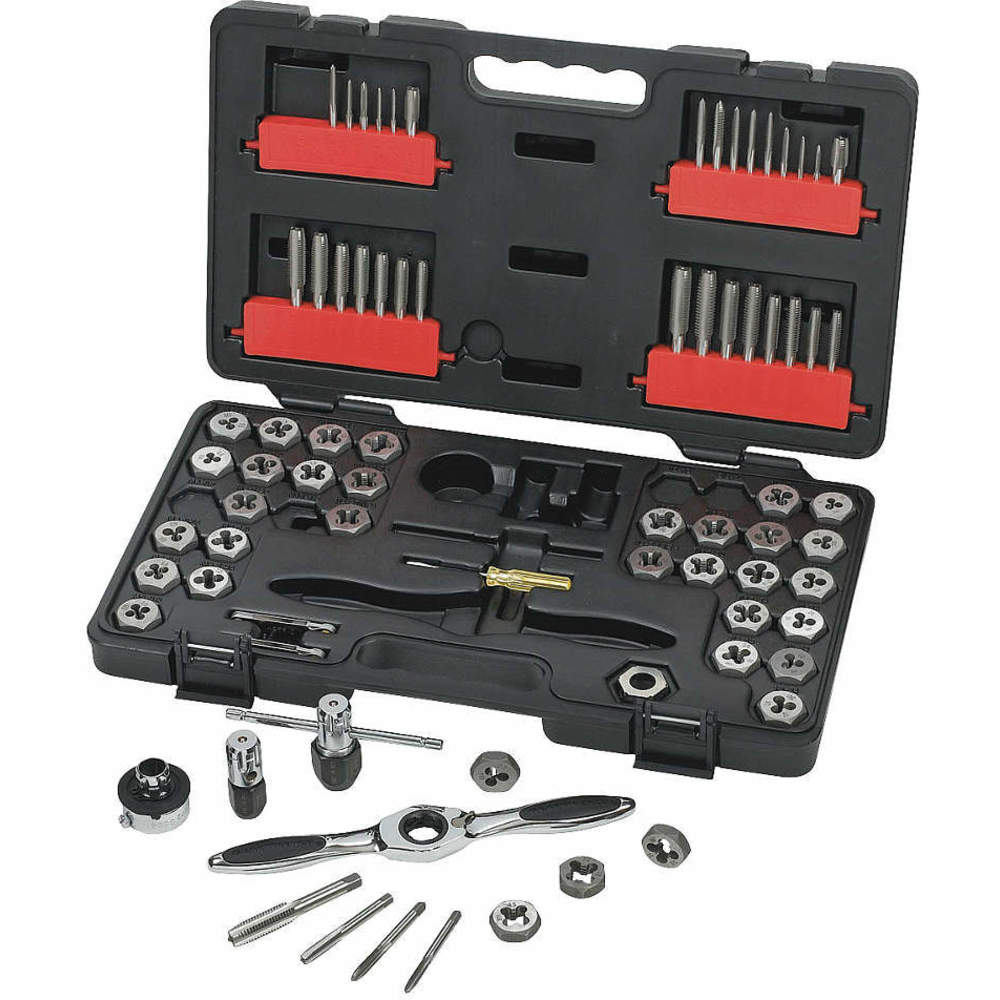

| Item | Tap and Die Set |
| Case Type | Plastic |
| Cutting Sizes | 34 |
| Die Material | High Speed Steel |
| Die Shape | Hex |
| Features | Auto-Locking, Eliminate Hand-Over-Hand Turning, Spring-Loaded Cap, Twist Lock Guide System Reduces The In Walk Back In |
| Finish | Uncoated |
| Includes | Ratcheting T-Handle Tap Wrench, Small And Medium Tap Adapters, Die Adapter, Sliding-T For Adapters, Thread Gauge, #5 Screwdriver, Plastic Case |
| Material | Carbon Steel |
| No. Of Pieces | 77 |
| Number Of Dies In Set | 34 |
| Number Of Pieces | 75 |
| Number Of Taps | 34 |
| Sae Or Metric | Metric, SAE |
| Size/range | #4 to 1/2", M3 to M12 |
| System Of Measurement | Fractional Inch, Metric |
| Tap Chamfer | Plug, Taper |
| Tap Type | Plug, Taper |
| Thread Direction | Right Hand |
| Thread Type | Metric, Coarse, Fine |
| Type | Fractional, Metric, Ratcheting |
| 55% Thread Drill Size | #13, #21, #3, #31, #32, #37, 10.2 mm, 10.9 mm, 11.30 mm, 11.80 mm, 11/32", 27/64", 3.5 mm, 3.6 mm, 3/32", 4.25 mm, 4.4 mm, 5.25 mm, 5.7 mm, 7.1 mm, 8.4 mm, 8.9 mm, 9.1 mm, 9/32", D, I, W |
| 65% Thread Drill Size | #23, #34, #38, #5, 10 mm, 10.50 mm, 11 mm, 11.60 mm, 11/32", 13/64", 17/64", 2.30 mm, 27/64", 3 mm, 3.40 mm, 3.50 mm, 4.15 mm, 4.30 mm, 4.60 mm, 7/32", 8.90 mm, C, I, J, P, R, V |
| 75% Thread Drill Size | #21, #25, #36, #7, 10.30 mm, 10.50 mm, 11.40 mm, 11/32", 2.20 mm, 2.50 mm, 2.90 mm, 27/64", 3.30 mm, 3.40 mm, 4.20 mm, 4.45 mm, 5.00 mm, 5.45 mm, 5/16", 6.00 mm, 8.50 mm, 9.95 mm, F, H, I, U |
| Die Finish | Bright (Uncoated) |
| Die Material Grade | Carbon Steel |
| Die Thread Sizes Included | M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1, M7 x 1, M8 x 1.25, M9 x 1.25, M10 x 1.25, M10 x 1.5, M11 x 1.5, M12 x 1.5, M12 x 1.75, #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1/2"- 13 NC, 1/2"- 20 NF, 1/4"- 20, 1/4"- 28, 1/8"- 27 NPT, 1/8"- 28 BSP, 3/8"- 16 NC, 3/8"- 24 NF, 5/16"- 18 NC, 5/16"- 24 NF, 7/16"- 14 NC, 7/16"- 20 NF, M3 x 0.6, M4 x 0.75, M5 x 0.9, M9 x 1 |
| Die Type | 5/8" And 1" Hex |
| Drill Bit Size | #16, #21, #26, #29, #3, #36, #43, #7, 10.20 mm, 2.50 mm, 2.90 mm, 25/64", 27/64", 29/64", 3.30 mm, 3.70 mm, 4.20 mm, 5.00 mm, 5/16", 6.00 mm, 6.70 mm, 8.50 mm, 8.70 mm, F, I, Q, U |
| Max. Die Thread Size | M12 x 1.75 |
| Max. Tap Thread Size | 12 x 1.75 |
| Measurement System | Fractional Inch, Metric |
| Min. Bore Dia. | 3 mm x 0.5 NC |
| Min. Tap Thread Size | M3 x 0.5 |
| Standards | ASME/ANSI B94.9-1999 |
| Tap Finish | Bright (Uncoated) |
| Tap Material | High Speed Steel |
| Tap Sizes Included | #10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1/2"-13 NC, 1/2"-20 NF, 1/4"-20, 1/4"-28, 1/8"-27 NPT, 1/8"-28 BSP, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 7/16"-14 NC, 7/16"-20 NF, M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M3 x 0.50, M3 x 0.60, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25 |
| Thread Pitch | 0.5 mm, 0.6 mm, 0.7 mm, 0.75 mm, 0.8 mm, 0.9 mm, 1 mm, 1.25 mm, 1.5 mm, 1.75 mm |
| Thread Sizes Included | 1/4"-20, 1/4"-28, M3 x 0.50, M4 x 0.70, M5 x 0.80, M6 x 1.00, M7 x 1.00, M8 x 1.25, M9 x 1.25, M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, #10 - 24 NC, #10 - 32 NF, #12 - 24 NC, #4 - 40 NC, #6 - 32 NC, #8 - 32 NC, 1/2"- 13 NC, 1/2"- 20 NF, 1/8"- 27 NPT, 1/8"- 28 BSP, 3/8"- 16 NC, 3/8"- 24 NF, 5/16"- 18 NC, 5/16"- 24 NF, 7/16"- 14 NC, 7/16"- 20 NF, M3 x 0.60, M4 x 0.75, M5 x 0.90, M9 x 1.00 |
| Thread Standard | Metric, NPT |
| Threads Per Inch | 13, 14, 16, 18, 20, 24, 27, 28, 32, 40 |
