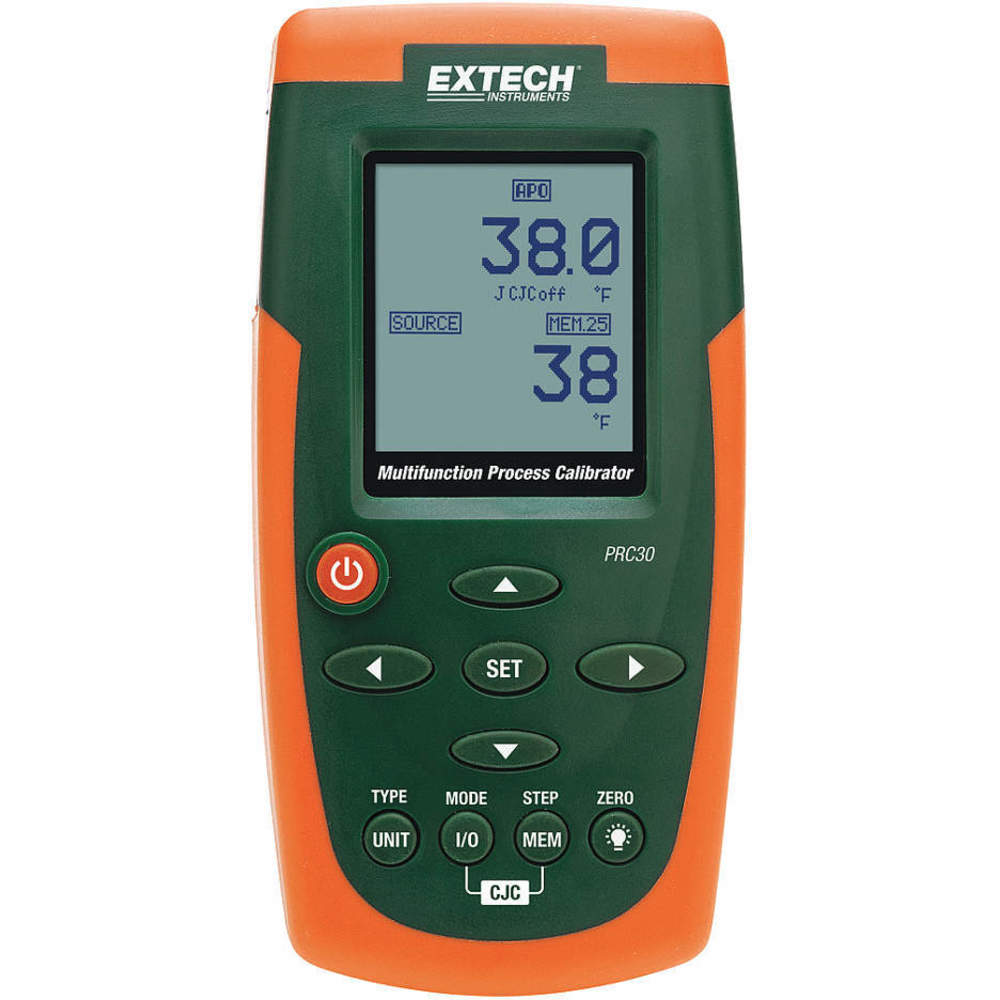

EXTECH PRC30 Process Calibrator Multifunction 20v | AC8EDV 39M990

EXTECH PRC30 Process Calibrator Multifunction 20v

Item: AC8EDV Model: PRC30Cross Ref: 39M990
See variants (6)
In Stock
Check Availability

Get it by Monday, Jun 16

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€978.45 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemHandheld Temperature Calibrator
Current Measurement Range0-50 mA
Display TypeLCD
Loop Supply Voltage24V DC
Powered ByBatteries Or 100 To 240V Universal AC Adapter
Source Voltage20V
TypeMultifunction
Accuracy - Measure+/-0.01% +1 Digit, +/-0.05% +2°F/1°C
Accuracy - Source±0.01% +1 Digit, ±0.05% +2°F/1°C
Auto Power OffYes
Calibration DetailsData at 0°C, 100°C, 500°C, 750°C, 1000°C
Data HoldNo
Display Functions°C/°F Switchable, Datalogging
For Thermocouple TypeType C, Type E, Type J, Type K, Type N, Type R, Type S, Type T
Includes100 to 240V Universal AC Adapter, Batteries, Calibration Cable, Carrying Case, Instructions
Includes Nist-traceable CertificateNo
Manufacturer Warranty Length1 yr.
Measurement FunctionsCurrent, Temperature, Voltage
Millivolt Accuracy+/-0.01% +1 Digit
Millivolt Range-5-55 mV
Number Of Digits4
Probe Connection TypeMini Thermocouple Connector, Standard Banana I/O Ports
Sensor Maximum Temperature C1000°C (Type J), 1300°C (Type N), 1370°C (Type K), 1750°C (Type C), 1750°C (Type R), 1750°C (Type S), 400°C (Type T), 750°C (Type E)
Sensor Maximum Temperature F1382°F (Type E), 1832°F (Type J), 2498°F (Type K), 2732°F (Type N), 3182°F (Type C), 3182°F (Type R), 3182°F (Type S), 752°F (Type T)
Sensor Minimum Temperature C-120°C (Type T), -50°C (Type E), -50°C (Type J), -50°C (Type K), -50°C (Type N), 0°C (Type C), 0°C (Type R), 0°C (Type S)
Sensor Minimum Temperature F-184°F (Type T),-58°F (Type E),-58°F (Type J),-58°F (Type K),-58°F (Type N), 32°F (Type C), 32°F (Type R), 32°F (Type S)
Sensor Temperature Range-184°F to 752°F/-120°C to 400°C (Type T), -58°F to 1382°F/-50°C to 750°C (Type E), -58°F to 1832°F/-50°C to 1000°C (Type J), -58°F to 2498°F/-50°C to 1370°C (Type K), -58°F to 2732°F/-50°C to 1300°C (Type N), 32°F to 3182°F/0°C to 1750°C (Type C), 32°F to 3182°F/0°C to 1750°C (Type R), 32°F to 3182°F/0°C to 1750°C (Type S)
Sensor TypeThermocouple
Temperature Accuracy+/-0.05% +2°F/1°C
Temperature Range-58°F to +2498°F
Thermocouple Temperature Range C-50°C to 1750°C
Thermocouple Temperature Range F-58°F to 2498°F

Shipping Info:

Ship weight (kg) 2.0655
Ship height (cm)11.94
Ship length (cm)38.1
Ship width (cm)32.51
HS code9027804590
Country of OriginTW

Product Details:

    • Source Current (24 mA)
    • Thermocouple Temperature Range (-58 to 2498 Degrees F)

Product Variants

ProductModelTypeSource VoltageLoop Supply VoltageCurrent Measurement RangeCalibration CertificateVoltage Measurement RangeDisplay TypePrice
EXTECH PRC10 Process Calibrator Current 24 Ma | AC8EDN 39M984 PRC10Current-24V0-50 mA--LCD€627.12
EXTECH PRC15 Process Calibrator Current/voltage 20v | AC8EDQ 39M986 PRC15Current And Voltage20V-0-50 mA--LCD€606.54
EXTECH PRC15-NIST Process Calibrator Current/volt Nist 20v | AC8EDR 39M987 PRC15-NISTCurrent And Voltage20V-0-50 mAIncluded-LCD€766.71
EXTECH PRC20 Process Calibrator Thermocouple 55 Mv | AC8EDT 39M988 PRC20Thermocouple55 mV----10 mV to +60 mVLCD€747.65
EXTECH PRC20-NIST Process Calibrator Thermocouple Nist | AC8EDU 39M989 PRC20-NISTThermocouple55 mV--Included-10 mV to +60 mVLCD€934.78
EXTECH PRC30-NIST Process Calibrator Multifunction Nist | AC8EDW 39M991 PRC30-NISTMultifunction20V24V DC0-50 mAIncluded-LCD€1,038.37
