EATON S811+T30N3S | BH6UWU

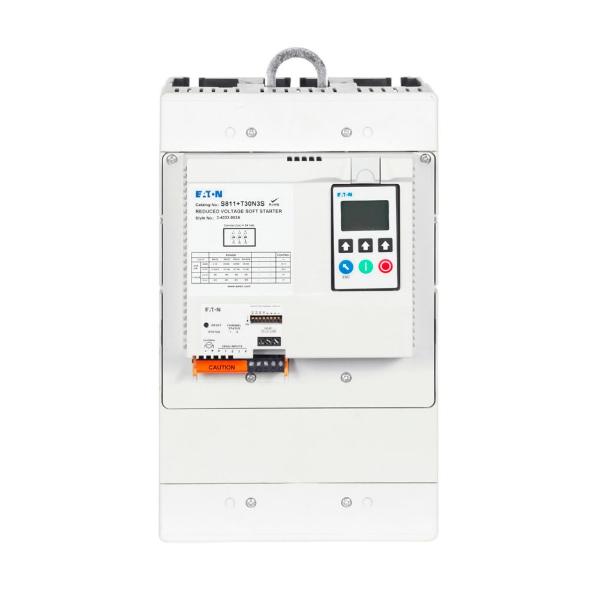

EATON S811+T30N3S Soft Start, 600 VAC, 304 A Output Current, With Bypass, 75HP, 3 Phase, 208 VAC

Item: BH6UWU Model: S811+T30N3SCross Ref: 20LE66
See variants (15)
In Stock
Check Availability

Get it by Tuesday, Jun 17

€13,828.45 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemMotor Starter
Amperage Rating304A
CommunicationModbus RTU
Dc Current - Max120V DC
Depth6.47"
For Use WithThree-Phase Motors
Frame SizeFrame T
Frequency Rating47-63 Hz
Height12.71"
Module InterfaceDigital Interface Module
Nema RatingNema 0
NotesAll Units Require A 24V DC Power Supply Found On Catalog Page V6-T1-85, Or Equivalent., S811+T_, S811+U_ And S811+V_ Units Require Lug Kits, S811+U50_ Unit Does Not Have IEC Certification.
Number Of Poles3
Operating Temperature - Max50°C
Operating Temperature - Min-30°C
Operating Voltage200-600V
Power Supply24V
TypeSoft Starter
WarrantyEaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.
Width7.65"
Wire Size#4 AWG to 500 kcmil
ApplicationConstant And Variable Torque
Communication PortModbus RTU
Control Voltage24V DC
Enclosure RatingNEMA 1
Frequency50/60 Hz
Function TypeStart Or Stop
Hp @ 3 Phase - 208v Ac75 hp
Hp @ 3 Phase - 230v Ac100 hp
Hp @ 3 Phase - 240v Ac100 hp
Hp @ 3 Phase - 460v Ac200 hp
Hp @ 3 Phase - 480v Ac200 hp
Hp @ 3 Phase - 575v Ac250 hp
Input And Output Types(3) 6A Relay Outputs, (9) Function Based Digital Inputs/Outputs, Analog Input
Input Voltage600V AC
Output Current304A
Output Power75 hp @ 3 Phase, 200V AC, 100 hp @ 3 Phase, 240V AC, 200 hp @ 3 Phase, 480V AC, 250 hp @ 3 Phase, 575V AC
Output Voltage600V AC
Overall Depth6.46"
Overall Height12.72"
Overall Width7.72"
PhaseThree
ProtectsMotor Overload, Jam, Stall, Pole Over Temperature, Phase Loss, Phase Imbalance, Ability to Alarm Without Tripping for Critical Situations, Ability for Advance Communications for Critical Load Monitoring
Ramp Time0 sec. to 180 sec.
StandardsCSA 22.2-14-1995, GB14048, IEC/EN 60947-4-2, UL 508
Start TypeExclusive Patented Intelligent Technology, Reduced Voltage Starting, Available with Kick Start, Torque Control or current Limit
Starting Torque0% to 83%
Stop Time0 sec. to 60 sec.
With Bypass / No BypassWith Bypass

Shipping Info:

Ship weight (kg) 20.25
Ship height (cm)32.28
Ship length (cm)16.43
Ship width (cm)19.43
Country of OriginUS

Product Variants

ProductModelHp @ 3 Phase - 208vHp @ 3 Phase - 240vHp @ 3 Phase - 575vHeightDepthRamp TimeStop TimeNema RatingPrice
EATON S811+R10N3S | BH6UWD S811+R10N3S---7 23/25"6 16/25"--Nema 0€7,395.71
EATON S811+N37N3S | BH6UWF S811+N37N3S---11 1/2"11"---€3,122.47
EATON S811+R13N3S | BH6UWJ S811+R13N3S---7 23/25"6 16/25"--Nema 0€9,009.58
EATON S811+T18N3S | BH6UWK S811+T18N3S---12.71"6.47"--Nema 0€9,927.06
EATON S811+N66N3S | BH6UWL S811+N66N3S---7.37"6.45"--Nema 0€4,799.72
EATON S811+T30V3S | BH6UWP S811+T30V3S---11.1"18 4/5"---€10,642.61
EATON S811+U50N3S | BH6UWQ S811+U50N3S---12 1/2"19"--Nema 0€15,616.25
