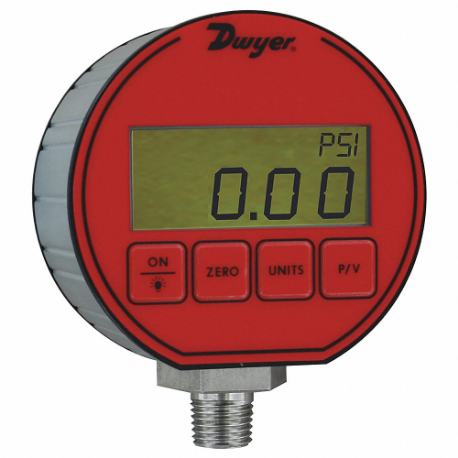

| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Adjustable Set Points | No |
| Ambient Operating Temperature Range | 0°F to +130°F |
| Application | OEM Applications, Process Industries, Replacement Gauge |
| Auto Shutoff | 60 min. , Yes |
| Auto-shutoff Time | 60 min. |
| Backlit Screen | Yes |
| Battery Included | Yes |
| Battery Type | AAA |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Red |
| Case Depth | 1.9" |
| Case Dia. | 3" |
| Case Material | Polycarbonate |
| Case Shape | Round |
| Compatible Process Media | Compatible Liquids And Combustible Gas |
| Connection Location | Bottom |
| Digit Height | 0.425" |
| Digital Gauge Display Units | Bar, In Hg, Kg/Sq Cm, Kpa, Psi |
| Display | Digital |
| Display Range | 0 psi to 1000 psi, 0 in. hg to 2036 in. hg, 0 ft. wc. to 2307 ft. wc., 0 kPa to 6895 kPa, 0 Bar to 68.98 Bar, 0 kg/sq. cm to 70.3 kg/sq. cm |
| Display Type | LCD |
| Display Units | Bar, In Hg, Kg/Sq Cm, Kpa, Psi , Bar, In Hg, Kpa, Psi |
| Features | Automatic Shutoff, Low Battery Indicator, Zero Adjustment |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3" |
| Gauge Primary Range Units | Psi |
| Includes | Alkaline Batteries |
| Includes Rubber Boot | No |
| Ip Rating, Nema Rating | NEMA 4X |
| Keypad Material | Polycarbonate |
| Language | English |
| Languages | English |
| Low-battery Indicator | Yes |
| Memory Storage | No |
| Mfr. Series | DPG |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 3" |
| Non-sparking | No |
| Number Of Batteries | 2 |
| Number Of Digits | 4 |
| Number Of Display Digits | 4 |
| Panel-mountable | No |
| Peak Hold | Yes |
| Power Source | Battery |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range Type | Pressure |
| Pressure Rating | 0 psi to 1000 psi |
| Primary Display Range | 0 to 1000 |
| Primary Units | psi |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Process Temperature Range | 0°F to +130°F |
| Range | 1000 psi |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Socket Material | Stainless Steel |
| Weatherproof | No |
| Wetted Materials | Stainless Steel |
| Wetted Parts Material | Stainless Steel |
| Wetted Parts Material Grade | Grade 316L |
| Auto-shutoff | Yes |
| Battery Run Time | 2000 hrs. |
| Case Diameter | 3" |
| Display Screen Type | LCD |
| Gauge Accuracy Grade | Not Graded |
| Gauge Application | For Liquids & Gases |
| Gauge Case Material | Polycarbonate |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Class I, Division 1, Groups A, B, C, D |
| Includes Batteries | Yes |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ip/nema Rating | NEMA 4X |
| Low Battery Indicator | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Pressure Range | 0 psi to 1000 psi |
| Primary Display Units | psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Location | Bottom |
| Process Connection Type | NPT |
| Series | DPG Series |
| Standards | CE CERTIFIED, FM APPROVED, ROHS |
