DWYER INSTRUMENTS 1950-20-2F Pressure And Vacuum Switch | CP3YVZ

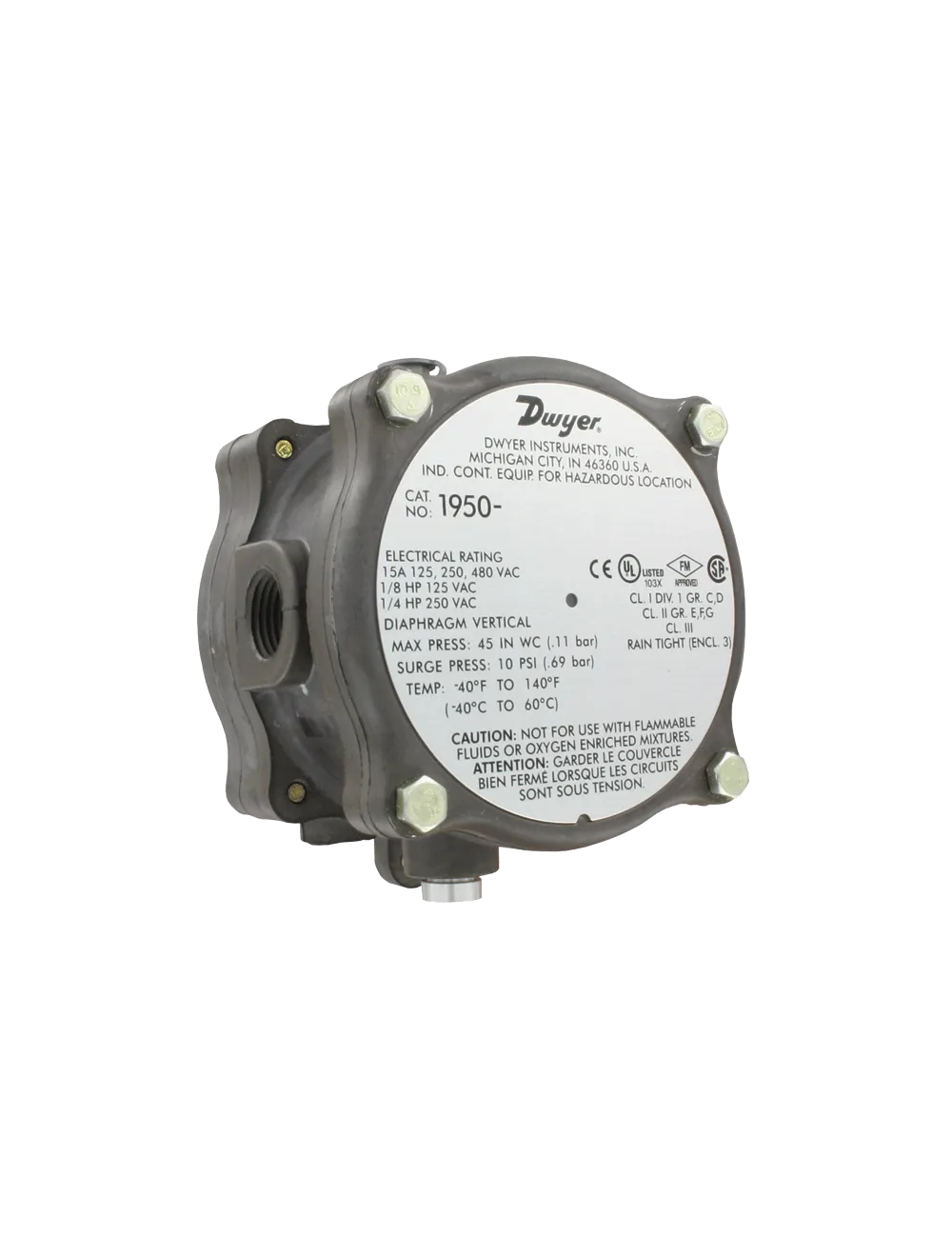

DWYER INSTRUMENTS 1950-20-2F Pressure And Vacuum Switch

Item: CP3YVZ Model: 1950-20-2FCross Ref: 25F038
In Stock

Get it by Monday, Jun 16

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€506.50 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemVacuum Switch
Electrical Connection3 Screw Type, Common, Normally Open, Normally Closed
Enclosure RatingNEMA 3, NEMA 7, NEMA 9
Ip RatingIP54
Mounting OrientationDiaphragm In Vertical Position
Operating Temp. Range-40°F to +140°F
Power Requirement15A At 120-480V AC
Pressure Range4 in. wc to 20 in. wc
ApplicationHVAC
Contact FormSPDT
Electrical Connection TypeScrew Terminals
Electrical Rating1/4 HP @ 250 V AC, 60 Hz, 1/8 HP @ 125 V AC, 15 A @ 125/250/480 V AC, 60 Hz Resistive
For Pressure TypeDifferential
Housing MaterialAluminum
Housing TypeNEMA-3 Enclosure
IncludesDrain Plug, O-Ring Seal Cover
Mounting Hole Center To Center Distance4 7/8"
Mounting Hole Diameter1/4"
Overall Depth3 1/2"
Overall Width5 7/16"
Pressure Set Point4 in. wc to 20 in. wc
Product TypeDifferential Pressure Switch
Sample Line Connection1/8" NPT
Sample Line Connection Size1/8"
Sample Line Connector TypeNPT
StandardsCE, CSA, FM, ROHS, UL LISTED
Switching Differential4 in. wc to 20 in. wc
Type Of Set PointAdjustable

Shipping Info:

Ship weight (kg) 1.4557
Ship height (cm)8.89
Ship length (cm)8.89
Ship width (cm)13.81
Country of OriginUS

Product Variants

ProductModelOperating RangeConnection TypeApprox Deadband Max. Set PointApprox Deadband Min. Set PointIp RatingEnclosure RatingOperating Temp. RangeConnection SizePrice
DWYER INSTRUMENTS 1950-0-2F Pressure Switch 15 | 4A250 1950-0-2F0.15 in. wc to 0.5 in. wcFNPT0.150.1IP54NEMA 3, NEMA 7, NEMA 9-40°F to +140°F1/8"€410.67
DWYER INSTRUMENTS 1950-10-2F Differential Pressure Switch 3 - 11 Inch | AH2CXF 25F036 1950-10-2F3" to 11"NPT0.50.4IP54NEMA 3, NEMA 7, NEMA 9-40°F to +140°F1/8"€414.51
DWYER INSTRUMENTS 1950-5-2F Differential Pressure Switch 1.4 - 5.5 Inch | AH2CXG 25F039 1950-5-2F1 2/5" to 5 1/2"NPT0.40.3IP54NEMA 3, NEMA 7, NEMA 9-40°F to +140°F1/8"€414.68
DWYER INSTRUMENTS 1950P-2-2F Differential Pressure Switch 0.5 - 2 psid | AH2CXH 25F047 1950P-2-2F0.5 psi to 2 psiNPT0.30.3IP54NEMA 3, NEMA 7, NEMA 9-40°F to +140°F1/8"€475.60
DWYER INSTRUMENTS 1950P-15-2F Differential Pressure Switch 3-15 PSId | CP3YDU 1950P-15-2F3 psi to 15 psi---IP54NEMA 3, NEMA 7, NEMA 9-40°F to +140°F-€473.13
DWYER INSTRUMENTS 1950-00-2F Pressure Switch | CP3YPG 1950-00-2F----IP54NEMA 3, NEMA 7, NEMA 9-40°F to +140°F-€406.29
