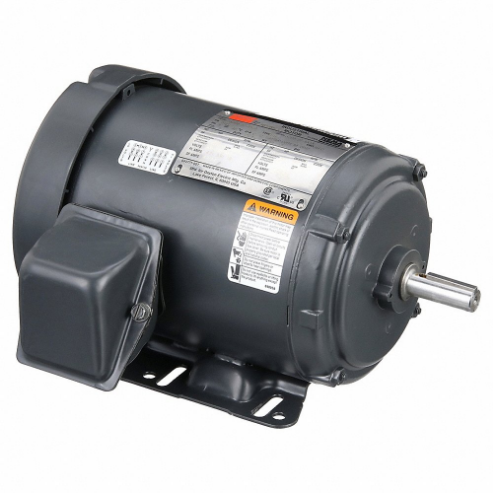

DAYTON 48ZJ86 General Purpose Motor, 1-1/2 HP, 3-Phase, 3465 Nameplate RPM | CD2YTX 48ZJ86

DAYTON 48ZJ86 General Purpose Motor, 1-1/2 HP, 3-Phase, 3465 Nameplate RPM

Item: CD2YTX Model: 48ZJ86
In Stock

Get it by Thursday, Jun 12

€510.15 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemGeneral Purpose Motor
Ambient Temp.104°F
Base TypeRigid Base
Bearing TypeBall
Cc NumberCC060A
Duty CycleContinuous
Efficiency84%
Efficiency GroupPremium
Frame56H
Frame MaterialSteel
Frequency50/60 Hz
Full Load Amps3.9/1.9A
Hp1 1/2 hp
IncludesShaft Key
Insulation ClassClass B
Inverter RatedYes
Motor ApplicationGeneral Application
Motor DesignThree Phase
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Mounting PositionAll Angle
Motor Shaft DesignKeyed
Motor Shaft RotationClockwise/Counter Clockwise
Motor TypeThree Phase
Mounting TypeRigid Base
Nameplate Rpm3465 RPM
No. Of Speeds1
Overall Length12 5/8"
Phase3
Rpm Range3001-3600 RPM
Service Factor1.15
Shaft Dia.5/8"
Shaft Length1 7/8"
Thermal ProtectionNone
Voltage208-230/460V AC
Hz50/60 Hz
Ins. ClassClass B
Length Less Shaft10 11/16"
Manufacturers Warranty Length1 yr.
Max. Ambient Temp.40°C
Motor BearingsBall
Motor Frame MaterialRolled Steel
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Thermal ProtectionNone
Nominal Efficiency84%
StandardsCSA (258501), UL (E47479)

Shipping Info:

Ship weight (kg) 14.2425
Ship height (cm)10.16
Ship length (cm)32.08
Ship width (cm)10.16
Country of OriginMX
