DAYTON 32J571 Variable Frequency Drive 1hp 115/208-230v | AC6BDD

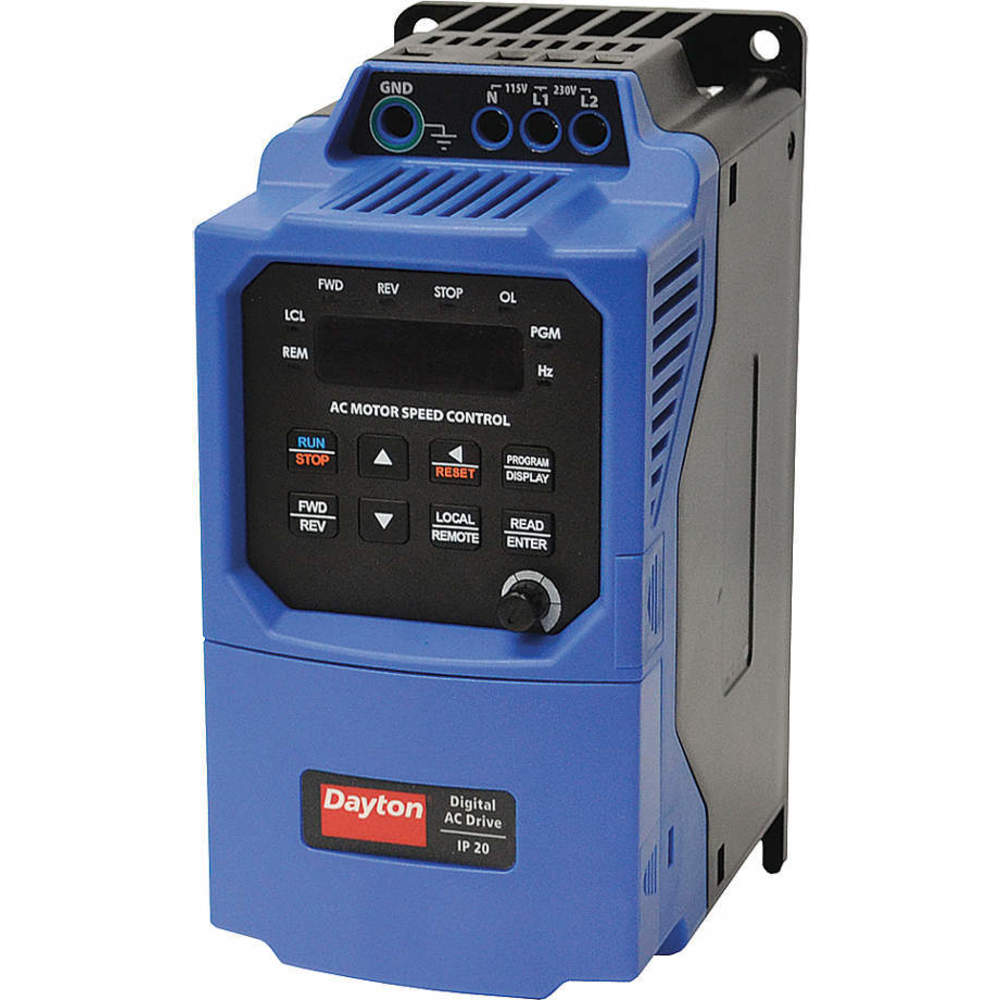

DAYTON 32J571 Variable Frequency Drive 1hp 115/208-230v

Item: AC6BDD Model: 32J571
In Stock

Get it by Friday, Jun 13

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€386.05 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemVariable Frequency Drive
Adjustable Acceleration Time0.1 sec. to 180 sec.
Adjustable Deceleration Time0.3 sec. to 180 sec.
Control TypeKeypad , Keypad, Digital Display
Depth5.1"
Digital ReadoutYes
Display TypeDigital
DisplaysBus Voltage, Custom Units, Hertz, Motor Current, Motor Frequency, Motor Voltage, RPM, Set Frequency , Digital Display
Dynamic BrakingInjection Braking , Yes
EnclosureOpen
Enclosure TypeOpen
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Height7 1/4"
Input Phase1
Input Voltage115/208-230V AC
Key Pad LockoutEnclosure Padlock , Yes
Max. Hp1 hp
Max. Output Amps4A
Maximum Output Power1 hp
Output Frequency0-240 Hz
Output Phase Ac3
Output TypeDigital
Overall Depth5 1/8"
Overall Height7 1/4"
Overall Width3 3/8"
ProtectionElectronic Inrush Current Limit (EICL), Ride Through, Regeneration Protection, Overload, Current Limit, Short Circuit, Overvoltage, Undervoltage, Nuisance Tripping, Phase Loss, Mov Input Transient Suppression
Start/stop ControlManual
Starting Torque200%
Torque @ 1 Hz100%
Width3 2/5"
With Bypass / No BypassNo Bypass
With Line Contactor / No Line ContactorNo Line Contactor
ApplicationActuators, Air Cleaners, Amusement Rides, And Sprayers, Ball Pitching Machines, Blowers, Boat Lifts, Bowling Alley Lane Cleaners, CNC, Conveyors, Door And Gate Openers, Drilling, Duct Cleaners, Dumbwaiters, Elevators And Hoists, Exercise Equipment, Fabric Processing, Fans, Feeders, Film Processing, Floor Cleaning, Food Processing, Garment Cutting, Grinding And Polishing, Hoppers, Horse Walkers, HV AC, Indexers, Irrigation, Laminating, Lift Station Pumps, Machine Tools, Medical, Milling, Mixers,
ColorBlue
Control MethodKeypad
Enclosure RatingIP20
Input Frequency50/60 Hz
Input Phase Ac1
Maximum Output Current4A
Output Frequency Range0-240 Hz
Output Voltage230V AC
StandardsUL, CSA, CE

Shipping Info:

Ship weight (kg) 1.485
Ship height (cm)18.42
Ship length (cm)13.02
Ship width (cm)8.57
HS code8504404000
Country of OriginUS

Product Details:

    • Output Phase AC (3)

Product Variants

ProductModelInput PhaseInput VoltageOutput VoltageEnclosure RatingOutput PowerBypass IncludedEnclosure TypeOutput TypePrice
DAYTON 13E632 Variable Frequency Drive 1hp 115/208-230v | AA4UMR 13E6321115/208-230V AC------€464.42
DAYTON 13E633 Variable Frequency Drive 1hp 115/208-230v | AA4UMT 13E6331115/208-230V AC------€491.97
DAYTON 13E634 Variable Frequency Drive 2hp 115/208-230v | AA4UMU 13E6341115/208-230V AC------€666.35
DAYTON 13E635 Variable Frequency Drive 2hp 115/208-230v | AA4UMV 13E6351115/208-230V AC------€692.69
DAYTON 13E636 Variable Frequency Drive 3 Hp 208-230v | AA4UMW 13E6361-------€705.23
DAYTON 13E637 Variable Frequency Drive 3 Hp 208-230v | AA4UMX 13E6371-------€731.59
DAYTON 13E638 Variable Frequency Drive 3 Hp 208-230v | AA4UMY 13E6381, 3-------€703.20
