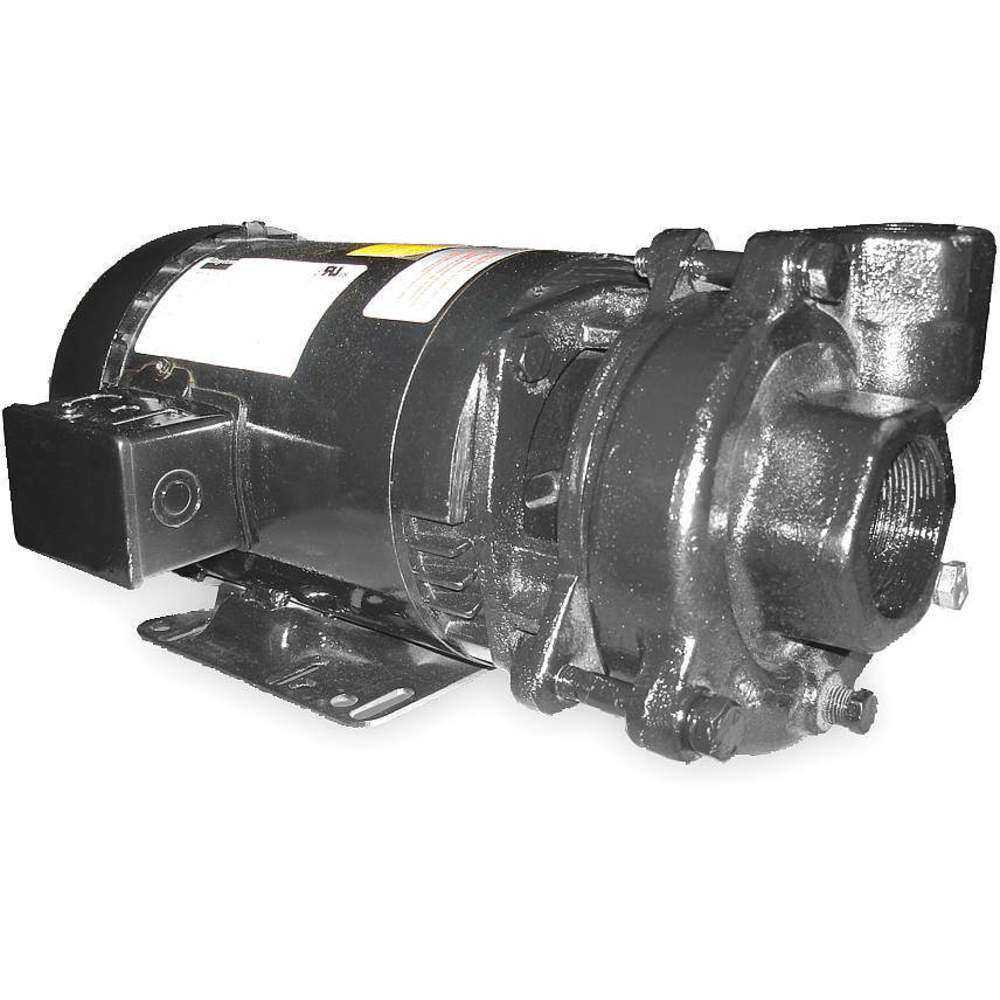

| Item | Centrifugal Pump |
| Amps | 7.6/3.8A |
| Bearing Type | Ball |
| Best Efficiency Flow | 95 GPM |
| Best Efficiency Flow Range @ Head | 60 to 144 GPM @ 75 to 35 ft. |
| Best Efficiency Flow Rate @ Head | 119 GPM @ 57 ft. |
| Best Efficiency Head | 57 ft. |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 2" |
| Drain Plug | Side And Bottom |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressure Circulation |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | 170 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 120 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | 166 GPM |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | 162 GPM |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | 146 GPM |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | 130 GPM |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | 110 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | 82 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | 35 GPM |
| Flow Rate @ 80 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 90 Ft Of Head (maximum) | Not Applicable |
| For Media Type | Non-Flammable Liquids |
| For Use With Potable Systems | No |
| Frame | 56J |
| Grade | Grade 304 |
| Height | 7" |
| Housing Material | Cast Iron |
| Hp | 3 hp |
| Hp - Pumps | 3 hp |
| Impeller Material | Cast Iron |
| Impeller Type | Semi Open , Semi Open Non Clogging |
| Includes | Manual |
| Inlet Pressure | 200 psi |
| Length | 17 1/2" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 74 ft. |
| Max. Flow Rate | 170 GPM |
| Max. Flow Rate @ 10 Ft. | 170 GPM |
| Max. Flow Rate @ 140 Ft. | 166 GPM |
| Max. Flow Rate @ 15 Ft. | 166 GPM |
| Max. Flow Rate @ 20 Ft. | 162 GPM |
| Max. Flow Rate @ 25 Ft. | 154 GPM |
| Max. Flow Rate @ 30 Ft. | 146 GPM |
| Max. Flow Rate @ 40 Ft. | 130 GPM |
| Max. Flow Rate @ 50 Ft. | 110 GPM |
| Max. Flow Rate @ 60 Ft. | 82 GPM |
| Max. Flow Rate @ 70 Ft. | 35 GPM |
| Max. Flow Rate @ Head | 170 GPM @ 10 ft. |
| Max. Head | 74 ft. |
| Max. Liquid Temp. | 200°F |
| Max. Operating Pressure | 32 psi |
| Max. Solid Dia. | 1/2" |
| Max. Specific Gravity | 1 |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 35 GPM |
| Min. Flow Rate @ Head | 35 GPM @ 70 ft. |
| Min. Head | 10 ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Overall Height | 7" |
| Overall Length | 17 1/2" |
| Overall Width | 8" |
| Phase | 3 |
| Port Rotation | Four Position |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Screw Finish | Zinc Plated |
| Screw Material | Steel |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Buna N |
| Seal Type | Mechanical |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Size | 5/8" |
| Shut Off Pressure | 32 psi |
| Shut Off Pressure (maximum) | 32 psi |
| Solid Diameter (maximum) | 1/2" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | Centrifugal |
| Voltage | 230/460V AC |
| Volute Material | Cast Iron |
| Wetted Material | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Wetted Materials | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Width | 8" |
| Connection Type | NPT |
| Flow Rate (minimum) | 35 GPM |
| Maximum Flow Rate @ 10 Feet Of Head | 170 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 162 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 146 GPM |
| Maximum Flow Rate @ 70 Feet Of Head | 35 GPM |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Standards | CULUS LISTED |
