CLE-LINE C24741  | CX7LBP

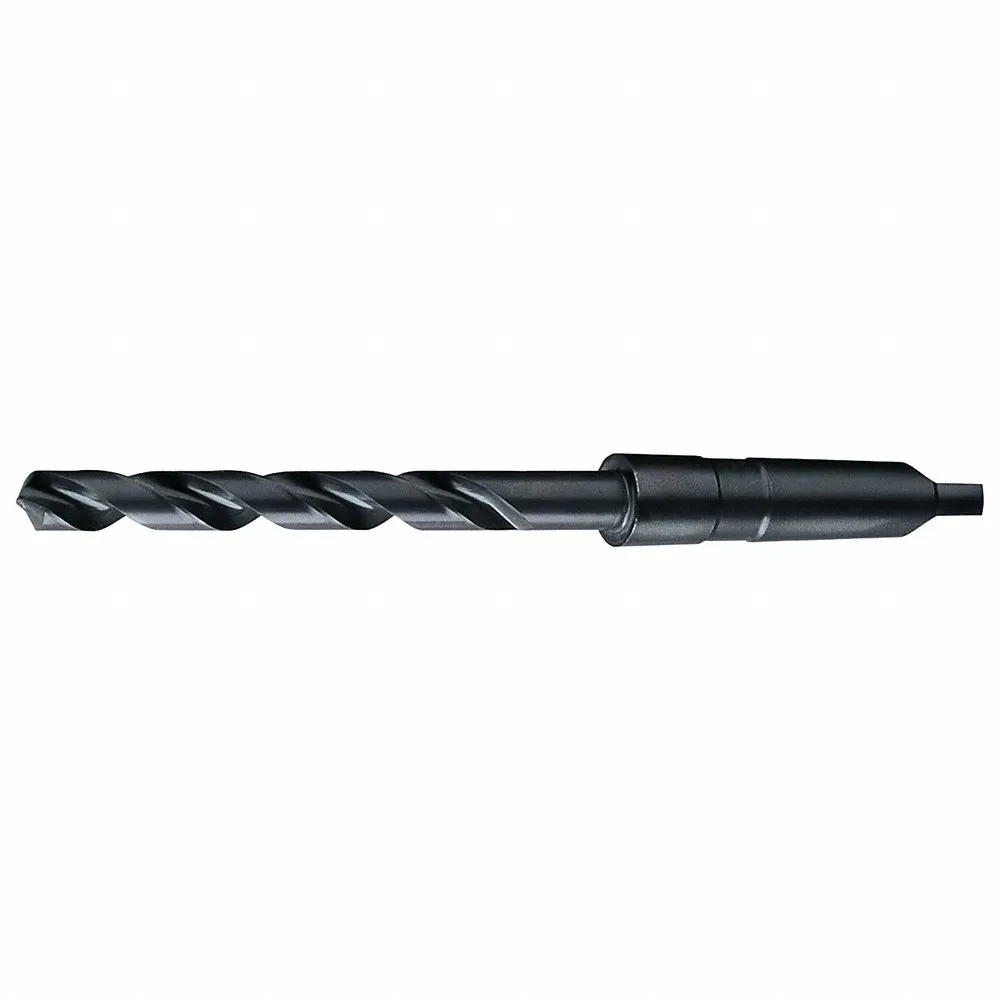

CLE-LINE C24741 HSS Taper Shank Drill, 23/32 Inch Drill Bit Size, 5 5/8 Inch Flute Length, #2 Taper Shank

Item: CX7LBP Model: C24741Cross Ref: 807RK3
Limited Availability
€50.80 /unit
Request a Quote

Payment

Delivery

Product Specifications:

Coolant FedNon Coolant Through
Cutting DirectionRight Hand
Decimal Equivalent0.7188
Drill Bit Point Angle118°
Drill Bit Point TypeRadial Point
Drill Bit Size23/32"
Drill Diameter Tolerance0"/-0.0012"
Finish - MachiningSteam Oxide
Flute Length5 5/8"
Flute TypeSpiral
Helix Angle21° to 34°
Material - MachiningHigh Speed Steel
Material Grade - MachiningGeneral Purpose
Maximum Drilling Depth5 5/8"
Measurement SystemDecimal Inch
Number Of Flutes2
Overall Length9 1/2"
Primary Material ApplicationAlloy Steel, Carbon Steel, Gray Cast Iron, Low Carbon Steel, Nodular Cast Iron
Primary Material Application Iso CodeK, P
Shank Type - MachiningTaper
Spiral DirectionRight Hand
StandardsASME B94.11M
Taper Shank DescriptionMorse Taper
Taper Shank Size#2

Shipping Info:

Ship weight (kg) 0.3352
Ship length (cm)24.13
Country of OriginUS
