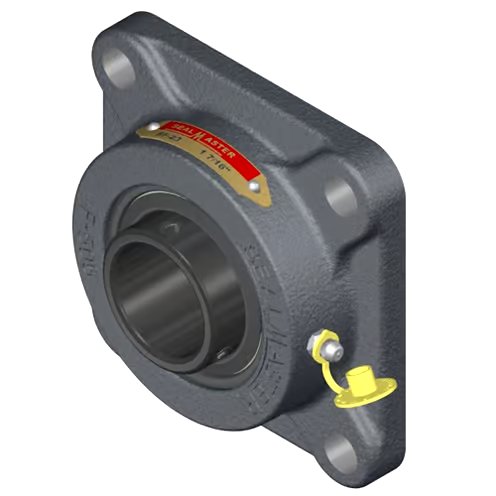

SEALMASTER SF-35 DRT

Item: BD6NGG Model: SF-35 DRTCross Ref: 715247
In Stock

Get it by Friday, Jun 13

€432.71 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemFlange Ball Bearing
Ability To RelubricateYes
Bearing Insert FinishBlack Oxide
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bolt Size5/8"
Bolt Spacing5 1/8"
Bore Dia.2 3/16"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Dynamic Load Capacity9752 lbs.
End CapNo
Fixed Vs. ExpansionFixed
Foot Height0.81"
Grease Fitting Thread Size1/8"
Grease Fitting Thread TypeNPT
Housing Backside Inner Diameter4 1/4"
Housing CoatingPowder Coated
Housing ColorBlack
Housing ConstructionOne Piece
Housing MaterialCast Iron
Housing StyleFlange Block
Housing TypeFlange, Four Bolt
Htc8483.20.4040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter2.723"
Insert2-23 DRT
Length Through Bore2.184"
Lubrication TypeLithium Complex NLGI 2 Grease 100% Fill
Max. Operating Temperature220°F
Max. Speed300 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
OptionsHigh Contamination
Outer Ring Land ProfileStandard
Overall Height2.313"
Overall Length6.38"
Overall Width6.38"
Pilot ConfigurationNo Pilot
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeMulti-Lip Contact Seal
Shaft Locking TypeSet Screw
Size Code2-23
Static Load Rating6601 lbs.

Shipping Info:

Ship weight (kg) 4.725
Ship height (cm)16.51
Ship length (cm)17.15
Ship width (cm)6.2
