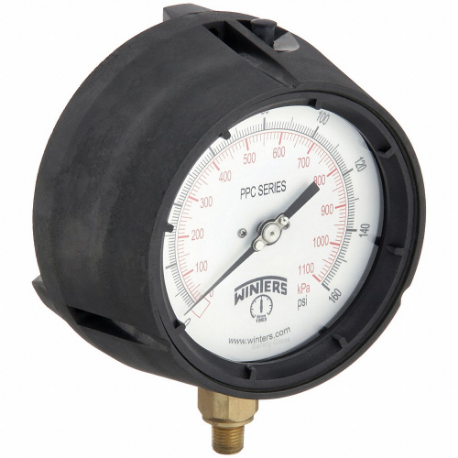

| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Temp. Range | -40°F to +250°F |
| Application | Chemical Industries, Oil And Gas Industry, Power Industries, Process Industries |
| Bezel Gasket Material | Silicone |
| Bezel Material | Phenolic |
| Blowout Safety Back | Yes |
| Bolt Circle Dia. | 5.39" |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Solid Wall |
| Case Depth | 3 2/5" |
| Case Dia. | 5.835" |
| Case Material | Phenolic |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Chemicals, Highly Corrosive Media |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Features | Pressure Relief Back, Solid Front |
| Field Fillable | Yes |
| For Use With | Brass, Industrial Applications, Media Compatible With Copper Alloy |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Special Options | Heavy Duty |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP65 |
| Lens Material | Safety Glass |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mfr. Series | PPC |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Over-pressure Limit | 25% |
| Panel Mount Characteristics | 3 0.24" Dia Holes On 5.39" Dia Bolt Circle |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range | 0 psi to 160 psi |
| Pressure Range Type | Pressure |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +250°F |
| Range | 0 psi to 160 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 kPa to 1100 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Vibration Resistance | Field Fillable |
| Wetted Materials | Phosphor Bronze |
| Bolt Circle Diameter | 5.39" |
| Case Diameter | 5.835" |
| Dial Face Color | White |
| Gauge Case Material | Phenolic |
| Includes Calibration Certificate | No |
| Ip/nema Rating | NEMA IP65 |
| Lens Material - Gauge | Safety Glass |
| Manufacturer Warranty Length | 5 yrs. |
| Standards | ASME, CRN |
| Wetted Parts Material | Phosphor Bronze |
