WHITE-RODGERS 1F78-144 Digital Thermostat 1h 1c Nonprogrammable | AD2CRC 3MY10

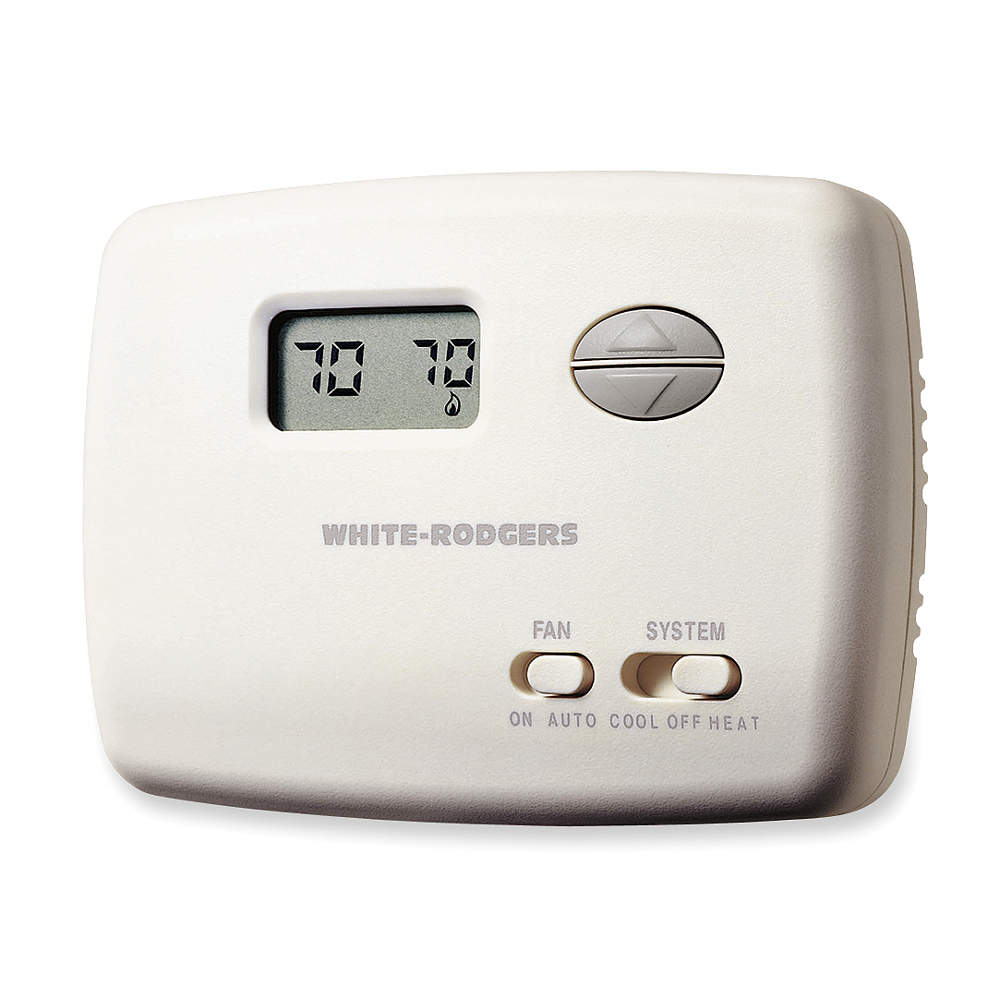

WHITE-RODGERS 1F78-144 Digital Thermostat 1h 1c Nonprogrammable

Item: AD2CRC Model: 1F78-144Cross Ref: 3MY10
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€50.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemLow Voltage Thermostat
Batteries IncludedYes
Battery BackupNo
ColorWhite
Control Range+45°F to +90°F
Depth1 1/8"
DisplayLCD
Height3 3/4"
Key Pad LockoutNo
Mounting TypeHorizontal
Power MethodBattery
Remote Sensing CapabilityNo
Stages Heat1
Temp. Control Range+45°F to +90°F
Voltage24V AC
Width5 1/8"
Amperage2.5A
ApplicationHeat Or Cool
Backlit TypePress Button
Battery Type(2) AAA Batteries
Changeover TypeManual
Compatible System TypeElectric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump Without Aux, Millivolt
Control TypeSlide Switch
Dehumidification ControlNo
Differential TypeAdjustable
Digit SizeStandard
Display TypeDigital
Dual Transformer CompatibleYes
Electrical Connection TypeHardwired
Fan SettingsAuto-On
Filter Change ReminderNo
Frequency50/60 Hz
Housing ColorWhite
Housing MaterialPlastic
Humidification ControlNo
Includes Positive OffYes
Maximum Control Temperature99°F
Maximum Operating Humidity90%
Maximum Operating Temperature150°F
Millivolt CompatibleYes
Minimum Control Temperature45°F
Minimum Operating Humidity0%
Minimum Operating Temperature-40°F
Mounting DirectionHorizontal
Mounting LocationWall
Number Of Cooling Stages - Conventional System1
Number Of Cooling Stages - Heat Pump System1
Number Of Heating Stages - Conventional System1
Number Of Heating Stages - Heat Pump System1
Number Of Zones1
Overall Depth1 1/8"
Overall Height5 5/16"
Overall Width3 3/16"
Programming CapabilityNot Programmable
ShapeRectangle
Stages1 H / 1 C Conventional
Stages Heat Pump1 H/1 C Heat Pump
Stages Heating/cooling1 H/1 C Conventional, 1 H/1 C Heat Pump
System SettingsCool Heat Off
Temperature Differential0.8°F to 1.5°F
Temperature LimitingNo
Temperature ScaleFahrenheit/Celsius
Temporary Program OverrideNo
Terminal DesignationsB, G, O, RC, RH, W, Y
Thermostat TypeLow Voltage

Shipping Info:

Ship weight (kg) 0.2025
Ship height (cm)15.75
Ship length (cm)11.18
Ship width (cm)5.08
HS code9032100030
Country of OriginUS

Product Details:

    • 750mV Compatible (Yes)
    • Dual Transformer Compatible (Yes)
    • Humidification Control (No)
    • Low Battery Indicator (Yes)
    • Programmable Fan (No)
    • Stages Cool (1)

Product Variants

ProductModelDisplay TypeTerminal DesignationsDepthHeightControl RangeTemp. Control RangePower MethodMountingPrice
WHITE-RODGERS 1F79-111 Thermostat Low Voltage Non Prog 2h/1c | AA8ATC 16X609 1F79-111--1 1/8"3 3/4"+45°F to +90°F+45°F to +90°FHardwired-€62.00
WHITE-RODGERS 1E30N-910 Low V Thermostat H Only Hg Free Vertical | AC2HGR 2KFX9 1E30N-910-RH, W1 1/2"4 1/2"+50°F to +90°F+50°F to +90°FHardwiredVertical€49.78
WHITE-RODGERS 1E56N-444 Low V Thermostat 1h 1c Hg Free White | AC2HGT 2KFY1 1E56N-444Analog-1 5/8"4 1/2"+50°F to +90°F+50°F to +90°FHardwiredVertical€45.22
WHITE-RODGERS 1F56N-444 Low V Thermostat 1h 1c Horizontal White | AC2HGU 2KFY2 1F56N-444--1 5/8"3 1/4"+50°F to +90°F+50°F to +90°FHardwiredHorizontal€50.72
WHITE-RODGERS 1E50N-301 Low V Thermostat H Only Vertical White | AC2HGV 2KFY3 1E50N-301-RH, W1 5/8"4 1/2"+50°F to +90°F+50°F to +90°FHardwiredVertical€43.92
WHITE-RODGERS 1F80-361 Digital Thermostat 1h 1c 5-1-1 Program | AC2XUG 2NY19 1F80-361Backlit-1 1/4"3 3/4"+45°F to +90°F+45°F to +90°F--€114.63
WHITE-RODGERS 1C20-101 Low V Thermostat Heat Only White | AD2CNN 3MU96 1C20-101AnalogR, W1 1/2"3 3/4"+50°F to +90°F-HardwiredVertical€18.85
