WEG 01536ET3H254T-S | BB9FDN

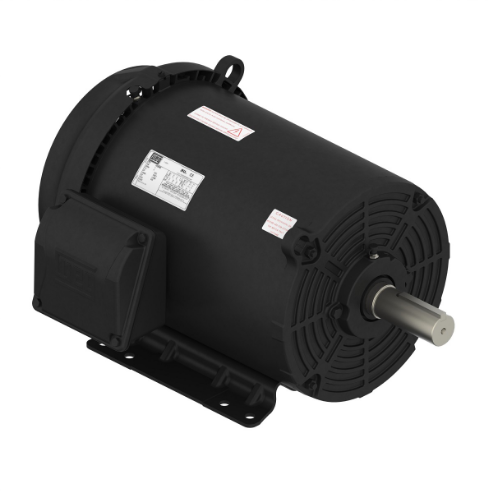

WEG 01536ET3H254T-S 13180741 Electric Motor, 15Hp, 60Hz, 3600 Rpm

Item: BB9FDN Model: 01536ET3H254T-SCross Ref: 13180741
Limited Availability
€1,615.06 /unit
Request a Quote

Payment

Delivery

Product Specifications:

ItemGeneral Purpose Motor
Altitude1000 MASL
Ambient Temp.-20°C to +40°C
Balancing Method1/2" Key
Bearing CapNo
Bolt MaterialCarbon Steel
Break-down Torque300%
Cold Locked Rotor Time25 sec.
Connection Cables Quantity6
DesignB
DrainRubber, Automatic
Drip CoverWithout
Duty CycleContinuous
Efficiency At 1 %87%
Efficiency At 50 %73%
Efficiency At 75 %83%
Fan Cover MaterialSteel
Fan MaterialPlastic
Flange TypeWithout
Frame254/6T
Frame MaterialRolled Steel
Frequency60 Hz
Grounding LugsSuperior
Hot Locked Rotor Time14 sec.
Impregnation MethodDip And Bake Polyester
L. R. Amps94.7A
Locked Rotor Torque200%
Lrc6.8X(Code G)
Main Terminal Box Hole Size1.732"
Moment Of Inertia0.8718 lbs.-sq. ft.
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Speed3525 RPM
MountingFoot Mounted
No Load Amps5.2A
No. Of Poles2
Noise Level75 dBA
Output15 hp
Output Rating15 hp
Overload ProtectorWithout Overload Protector
PaintingMunsell N 1-Matte 207N (ISO 12944-C2)
Power Factor At 1 %91
Power Factor At 50 %89.5
Power Factor At 75 %91
Rated Current13.9A
Rated Torque22.3 lbs.-ft.
Rated Voltage575V AC
Regreasing SystemAt Drive End And Non Drive End
Resilient BaseWithout
RotationClockwise/Counter Clockwise
Service Factor1.15
Shaft MaterialCarbon Steel
Shaft Material GradeGrade 1040/45
Slip2.08%
Starting MethodDirect On Line
Synchronous Speed3600 RPM
Temp. Rise80 K
Terminal BlockWithout
Terminal BoxLeft Position
Tropicalized PaintingWithout
Voltage575V AC

Shipping Info:

Ship weight (kg) 90.3375
Ship length (cm)57.3
