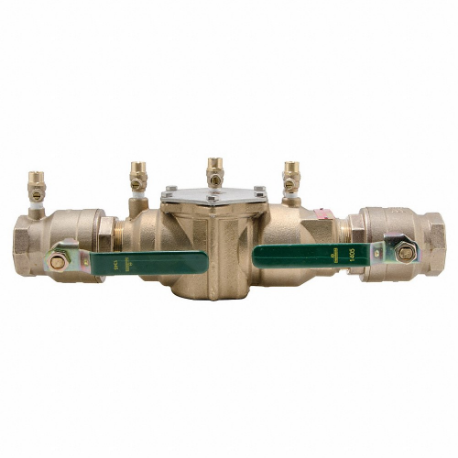

WATTS 2 LF007M1-QT Backflow Preventer, LF007, Copper Silicon Alloy, 2 Inch Size, Press, 175 PSI | CU9TVG

WATTS LF007M1-QT 2 Backflow Preventer, LF007, Copper Silicon Alloy, 2 Inch Size, Press, 175 PSI

Item: CU9TVG Model: LF007M1-QT 2Cross Ref: 793HH5
Limited Availability
Request a Quote

Payment

Delivery

Product Specifications:

ItemBackflow Preventer
Backflow Preventer TypeDouble Check Assembly (DC)
Body MaterialBronze
Check Valve Length13 3/8"
ConfigurationStandard Configuration
Connection Gender - Side 1Female
Connection Gender - Side 2Female
Connection Size - Side 12"
Connection Size - Side 22"
Connection TypeFNPT x FNPT
Connection Type - Side 1NPT
Connection Type - Side 2NPT
Flow Rate200 GPM
For MediaWater
Handle TypeLever
Hazard Protection LevelLow Health Hazard
Includes Flow MeterNo Flow Meter
Includes Freeze ProtectionNo Freeze Sensor
Manufacturer Warranty1 yr.
Max. Media Temperature180°F
Max. Pressure (cwp)175 psi
Media Temp. Range33°F to 180°F
Min. Media Temperature33°F
Mounting OrientationHorizontal, Vertical
Number Of Test Ports4
Overall Height6 1/4"
Overall Length19.5"
Overall Width6.13"
Pipe Size2"
Protection TypeBack Pressure, Back Siphonage
Seat MaterialPlastic
Shut-off Valve TypeBall Valve
StandardsASSE 1015, AWWA C510, CSA B64.5, FM, IAPMO PS31, NSF, UPC, USC-FCCCHR
Valve SeriesLF007
Valve Series007

Shipping Info:

Ship weight (kg) 9.9
Ship height (cm)13.02
Ship length (cm)49.53
Ship width (cm)15.56
Country of OriginUS
