STARRETT S668DZ Alignment Clamp Set With AC4GYP Indicator | AD6XFW 4CEW1 / 67153

STARRETT S668DZ 67153 Shaft Alignment Clamp, Extension Plate, Anodized Aluminium

Item: AD6XFW Model: S668DZCross Ref: 4CEW1 / 67153
In Stock

Get it by Tuesday, Jun 17

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€2,116.18 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemShaft Alignment Clamp Set
Band MaterialSteel
Frame MaterialAluminum
Jaw TypeV Shaped
Alignment Distance (maximum)7 1/2"
Clamp MaterialAluminum
Compatible Shaft Diameter (maximum)7 1/2"
Dial Reading0-50-0
IncludesCase, Chain Clamp, Extension Plate, Posts
Indicator Post Diameter3/8"
Indicator Post Length9"
Operating Temperature (maximum)114°F
Operating Temperature (minimum)30°F

Shipping Info:

Ship weight (kg) 2.745
Ship height (cm)8.89
Ship length (cm)40.64
Ship width (cm)31.75
HS code8205700090
Country of OriginUS

Product Details:

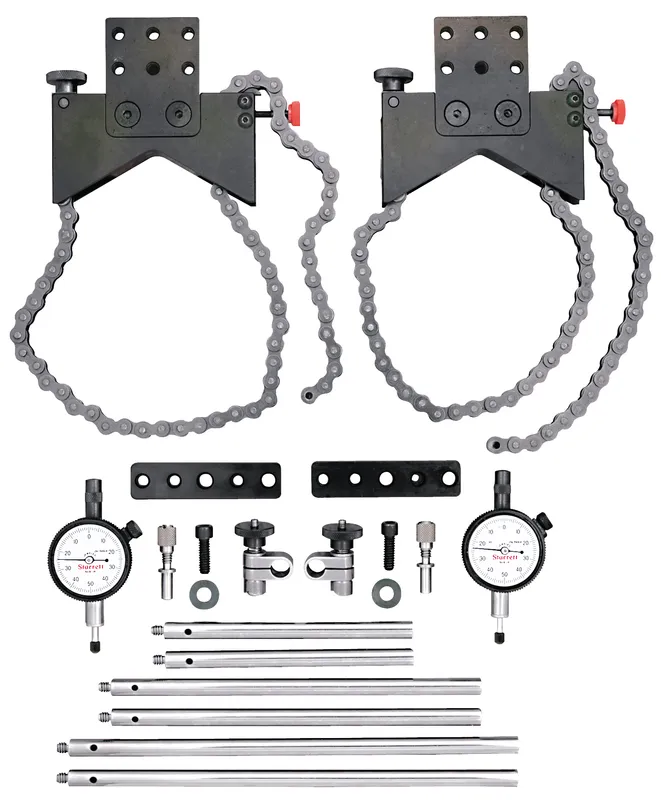

    • Starrett S668DZ is a shaft alignment clamp set that includes two chain clamps, two Starrett 81-141J back-plunger dial indicator gauges, two PT18724 stainless-steel snugs to hold the gauges in position, two extension plates for additional radial clearance and 6 rigid 3/8 inch diameter, stainless-steel indicator posts in three lengths (5, 7.44 and 9 inches).
    • The lightweight chain clamps are made of black anodised aluminium featuring heavy-duty roller chains that can accommodate shafts up to 7.5 inches in diameter. The second clamp is mounted across from the first clamp and acts as a vertical target for face alignment.
    • The indicator gauges are used to measure alignment distortion and have a configurable armature to secure the gauges in position on two axes. These dial indicator gauges have shockless and low-friction jeweled bearings that can withstand excessive vibrations.
    • This set comes in a case for proper organisation & protection of the components and is used to provide precise radial and angular alignment of motors, pumps and compressors. It is also capable of addressing radial and angular misalignment problems.
