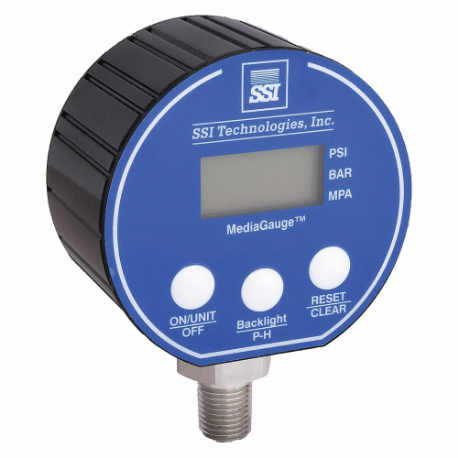

| Item | Pressure Gauge |
| Accuracy | -0.25% to +0.25% |
| Accuracy Grade | Grade 3A |
| Accuracy Grade Gauge Type | Test |
| Adjustable Set Points | No |
| Ambient Operating Temperature Range | -10°C to +60°C |
| Application | Food Processing Industry, Hydraulics, Pneumatics , Pneumatics, Food Processing Industry, Hydraulics |
| Auto Shutoff | 5 min. , Yes |
| Auto-shutoff Time | 5 min. |
| Backlit Screen | Yes |
| Basic Gauge Case Material | Plastic |
| Battery Included | Yes |
| Battery Voltage | 9V |
| Blowout Safety Back | No |
| Burst Pressure | 15000 psi |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 44 mm |
| Case Dia. | 3" |
| Case Material | ABS |
| Case Shape | Round |
| Compatible Process Media | Brake Fluid, Diesel, Hydraulic Fluid, Hydrogen, Motor Oil, Nitrogen And Air, Salt Water, Sea Water, Waste Water |
| Connection Location | Bottom |
| Digital Gauge Display Units | Bar, Mpa, Psi |
| Digital Pressure And Vacuum Gauge Type | Digital Pressure Gauge |
| Display Range | 0 psi to 300 psi |
| Display Type | LCD |
| Display Units | Bar, mPa, psi |
| Features | -1 |
| Gauge Accuracy Grade | Grade 3A - Test |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3" |
| Gauge Primary Range Units | Psi |
| Hazardous Location Rating | Not Rated |
| Includes | Battery |
| Includes Rubber Boot | No |
| Ip Rating, Nema Rating | NEMA 4X |
| Language | English |
| Languages | English |
| Low-battery Indicator | No |
| Mfr. Series | MG-9V Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 3" |
| Non-sparking | No |
| Number Of Digits | 4 |
| Number Of Display Digits | 4 |
| Panel-mountable | No |
| Peak Hold | Yes |
| Power Source | Battery |
| Pressure Gauge Type | Test Pressure Gauge |
| Pressure Range Type | Pressure |
| Pressure Rating | 0 psi to 300 psi |
| Primary Display Range | 0 to 300 |
| Primary Units | psi |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Process Temperature Range | +14°F to +140°F |
| Range | 0 psi to 300 psi |
| Response Time | Less than 1 msec. |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Diaphragm |
| Socket Grade | Grade 304L |
| Socket Material | Stainless Steel |
| Vibration Resistance | Yes |
| Weatherproof | No |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316L, Grade 304L |
| Auto-shutoff | Yes |
| Battery Type | 9V Battery |
| Case Diameter | 3" |
| Display Screen Type | LCD |
| Gauge Application | For Liquids & Gases |
| Gauge Case Material | ABS |
| Gauge Wetted Parts | Stainless Steel |
| Includes Batteries | Yes |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ip/nema Rating | NEMA 4X |
| Low Battery Indicator | No |
| Manufacturer Warranty Length | 1 yr. |
| Pressure Range | 0 psi to 300 psi |
| Primary Display Units | psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Location | Bottom |
| Process Connection Type | NPT |
| Series | MG-9V Series |
| Standards | CE CERTIFIED, ROHS |
| Wetted Parts Material | 304L Stainless Steel, 316L Stainless Steel |
