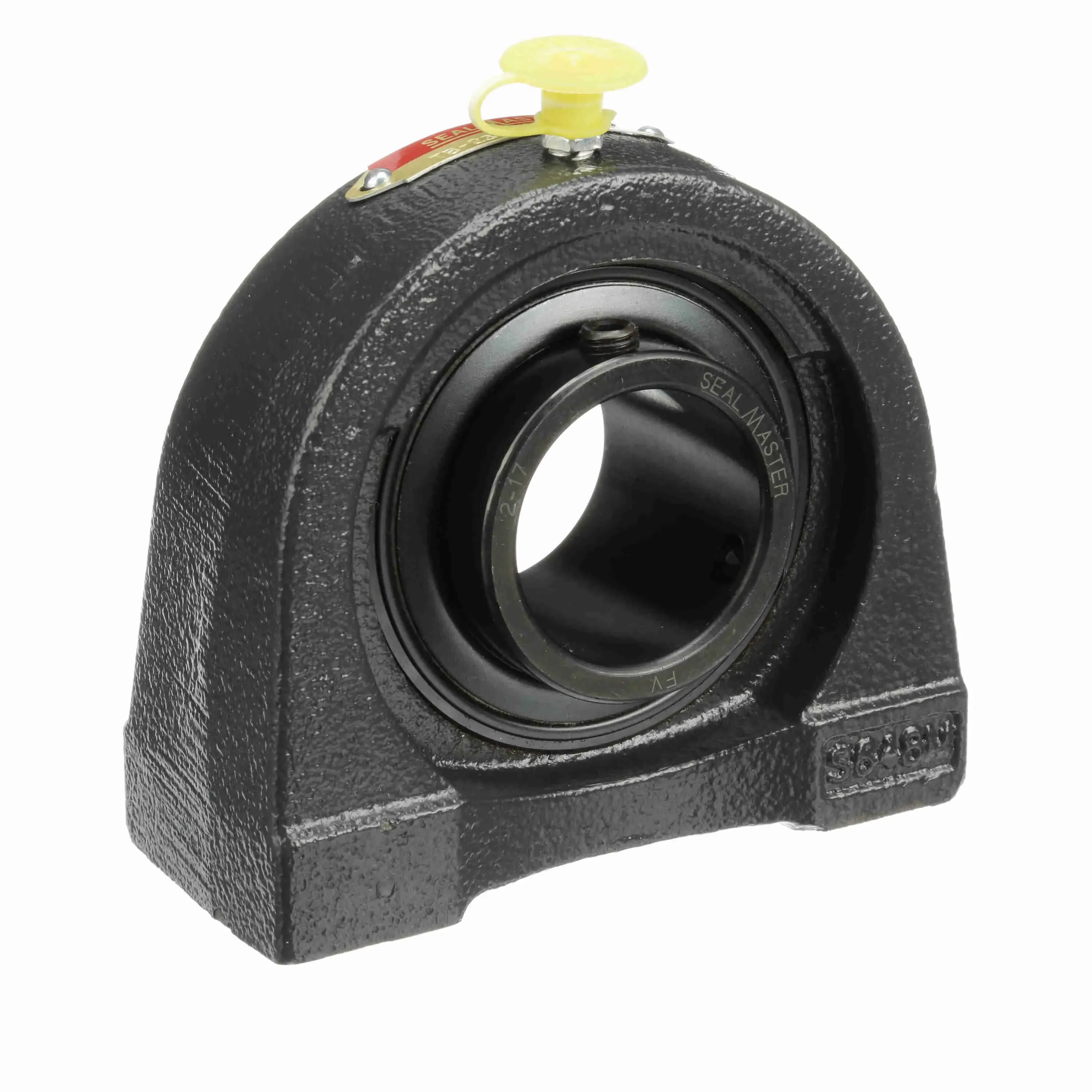

SEALMASTER TB-23 700877 Mounted Cast Iron Tapped Base Pillow Block Ball Bearing

Item: BE4RDW Model: TB-23Cross Ref: 700877
In Stock

Get it by Tuesday, Jun 17

€253.28 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Base Length4 1/4"
Base To Center Height1 7/8"
Base Width1 3/4"
Bearing Insert FinishBlack Oxide
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bolt Spacing3 1/4"
Bore Dia.1 7/16"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Centerline To Outermost Bearing Face1"
Dynamic Load Capacity5782 lbs.
End CapNo
Fixed Vs. ExpansionFixed
Grease Fitting Thread Size1/4"-28
Housing BaseSolid
Housing CoatingPowder Coated
Housing ColorBlack
Housing ConstructionOne Piece
Housing MaterialCast Iron
Housing StylePillow Block
Housing TypePillow Block, Tapped Base
Housing Width1 22/25"
Htc8483.20.8040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter1.859"
Insert2-17
Length Through Bore1 11/16"
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed4650 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
Outer Ring Land ProfileStandard
Overall Height3 3/4"
Overall Length4.41"
Overall Width1 22/25"
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeFelt Labyrinth Seal
Shaft Locking TypeSet Screw
Size Code2-17
Static Load Rating3493 lbs.
Thread Depth3/4"
Thread Size1/2"-13

Shipping Info:

Ship weight (kg) 1.746
Ship height (cm)12.7
Ship length (cm)5.08
Ship width (cm)12.7
