SEALMASTER SFT-20T RM | BE8KVU

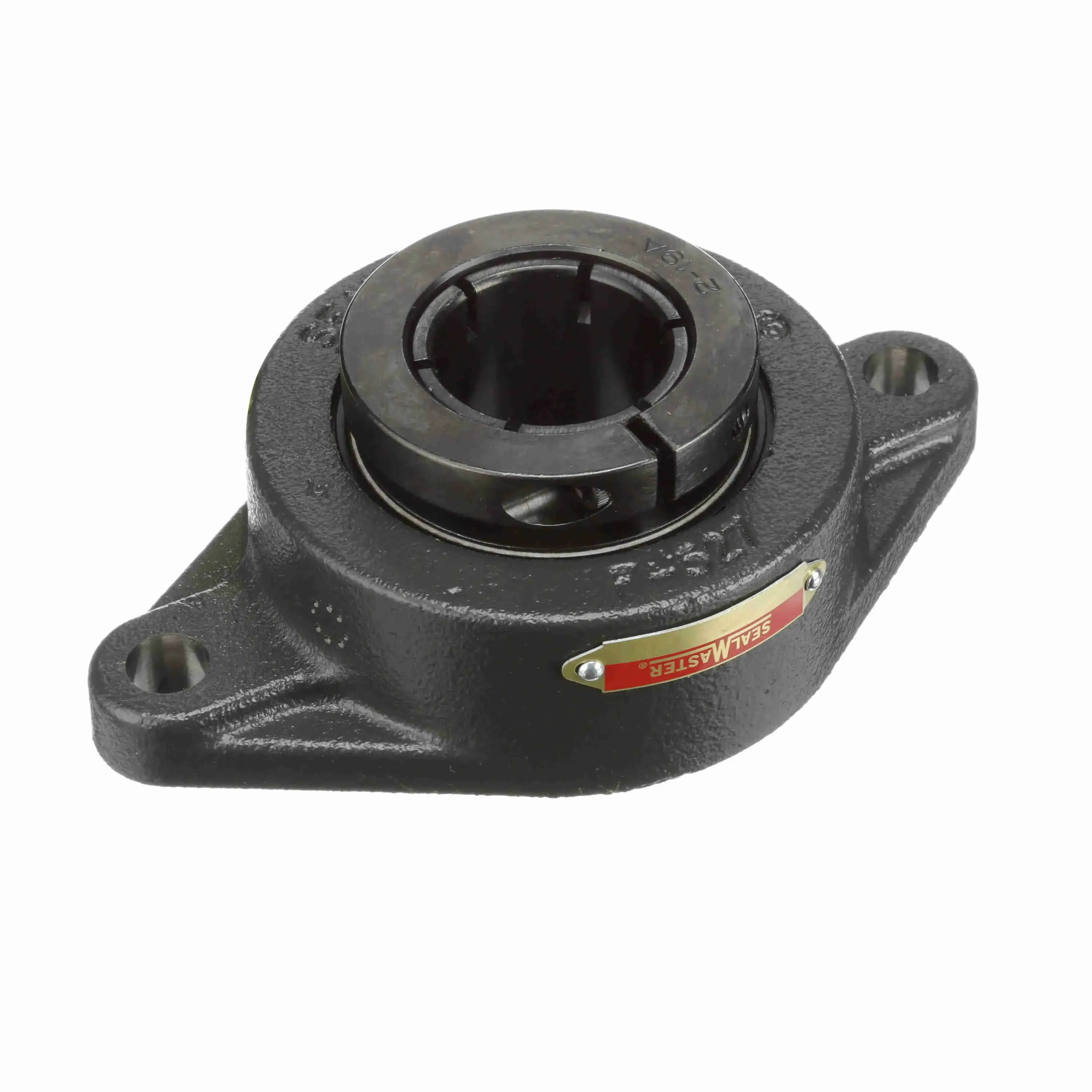

SEALMASTER SFT-20T RM 711039 Flange Block Bearing, 2 Bolt Flange Block, 1-1/4 Inch Bore, 5.1 Inch Bolt Dia

Item: BE8KVU Model: SFT-20T RMCross Ref: 711039
In Stock

Get it by Tuesday, Jun 17

€246.85 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemFlange Block Bearing
Ability To RelubricateNo
Bearing Insert FinishBlack Oxide
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bolt Size1/2"
Bolt Spacing5 1/8"
Bore Dia.1 1/4"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Dynamic Load Capacity5782 lbs.
End CapNo
Fixed Vs. ExpansionFixed
Foot Height14/25"
Grease Fitting Thread Size1/4"-28
Housing CoatingPowder Coated
Housing ColorBlack
Housing ConstructionOne Piece
Housing MaterialCast Iron
Housing StyleFlange Block
Housing TypeFlange, Two Bolt
Htc8483.20.4040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter1.859"
Insert2-14T RM
Length Through Bore1.81"
Locking Collar Outside Diameter2 14/25"
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed6500 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
OptionsReduced Maintenance Lubed for Life
Outer Ring Land ProfileTapered Lands
Overall Height1.81"
Overall Length6.13"
Overall Width3 3/4"
Pilot ConfigurationNo Pilot
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeFelt Labyrinth Seal
Shaft Locking TypeConcentric
Size Code2-17
Static Load Rating3493 lbs.
Vibration Frequency Fundamental Train0.0066 cPS
Vibration Frequency Inner Ring Defect0.0905 cPS
Vibration Frequency Outer Ring Defect0.0595 cPS
Vibration Frequency Roller Spin0.0386 cPS

Shipping Info:

Ship weight (kg) 1.575
Ship height (cm)5.08
Ship length (cm)12.7
Ship width (cm)12.7
