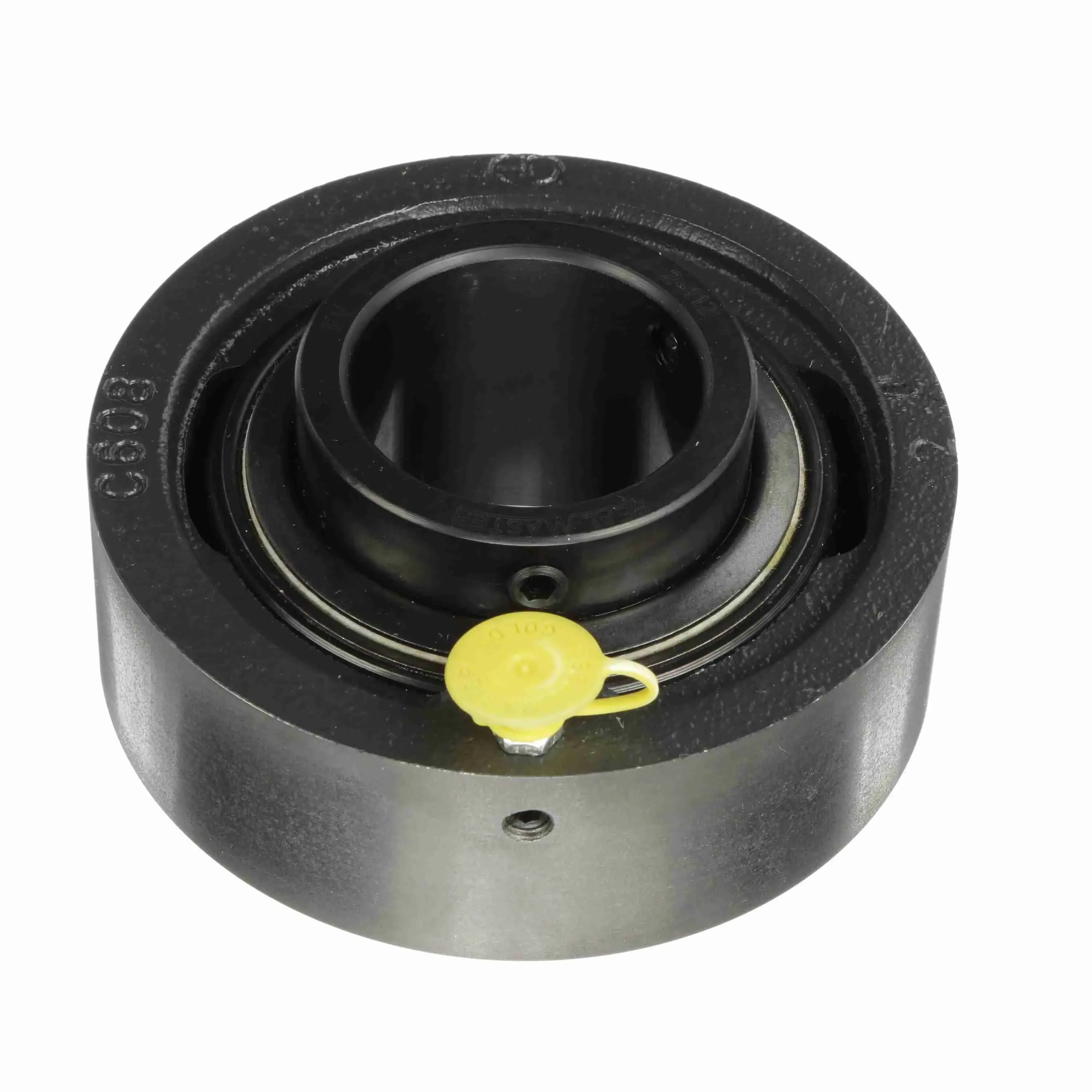

SEALMASTER SC-28 Mounted Cast Iron Cylindrical Cartridge Ball Bearing

Item: BD9JYZ Model: SC-28Cross Ref: 700332
In Stock

Get it by Wednesday, Jun 11

€333.57 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Bearing Insert FinishBlack Oxide
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bore Dia.1 3/4"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Centerline To Outermost Bearing Face1.19"
Dynamic Load Capacity7901 lbs.
End CapNo
Fixed Vs. ExpansionFixed
Grease Fitting Thread Size1/4"-28
Housing ColorGray
Housing ConstructionOne Piece
Housing MaterialCast Iron
Housing StyleCartridge Block
Housing TypeCartridge, Cylindrical
Housing Width1 11/25"
Htc8482.10.5052
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter2.297"
Insert2-112
Length Through Bore1.938"
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed3800 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
Outer Ring Land ProfileStandard
Outside Dia.4 3/8"
Overall Height4.38"
Overall Length4.38"
Overall Width1.94"
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeFelt Labyrinth Seal
SeriesSC
Shaft Locking TypeSet Screw
Size Code2-111
Static Load Rating5139 lbs.

Shipping Info:

Ship weight (kg) 1.8675
Ship height (cm)5.08
Ship length (cm)12.7
Ship width (cm)12.7
