SEALMASTER RFPA 203 | BD9RFL

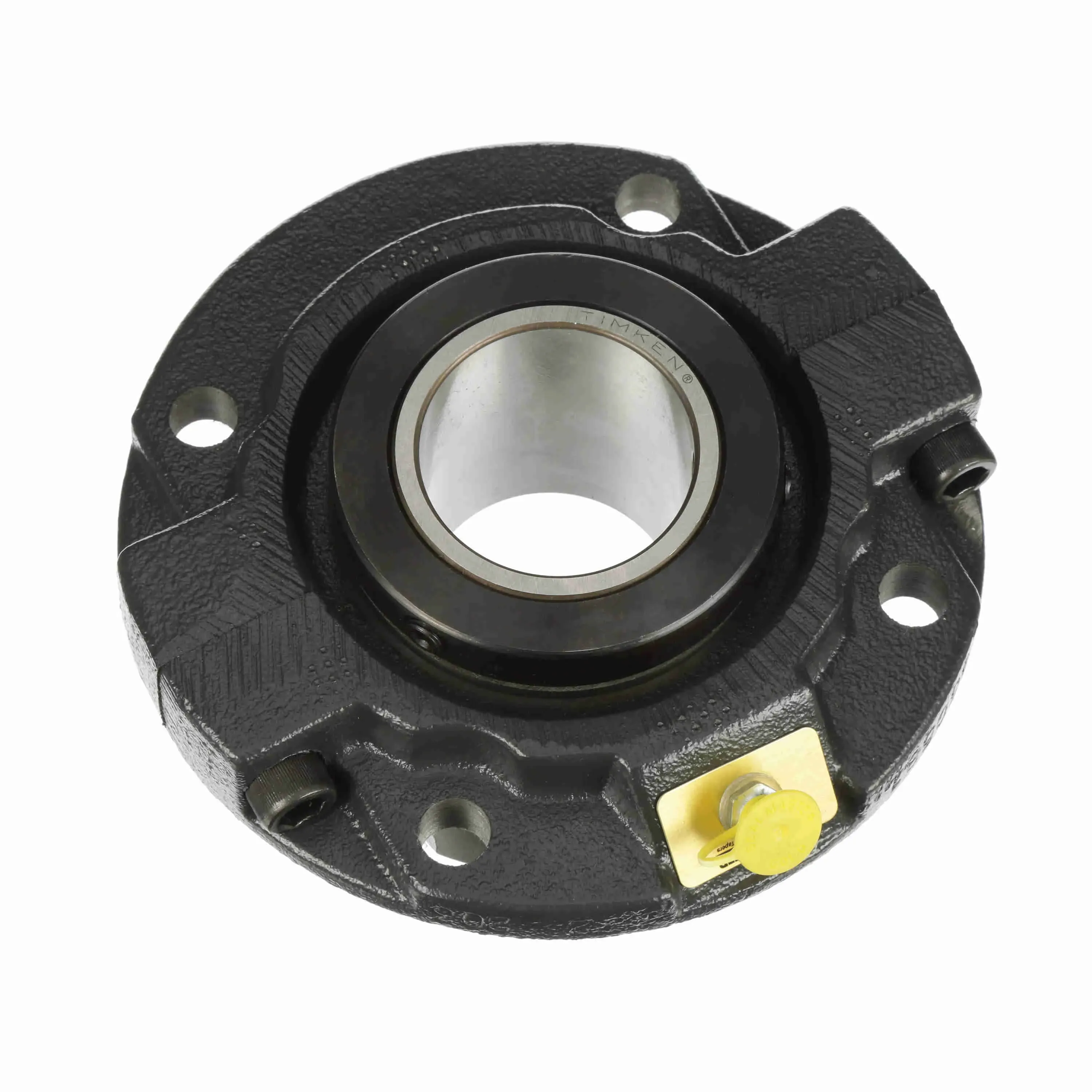

SEALMASTER RFPA 203 551920 Tapered Roller Bearing, 1-3/16 Inch Bore, 4-Bolt Piloted Flange Mount

Item: BD9RFL Model: RFPA 203Cross Ref: 551920
In Stock

Get it by Monday, Jun 16

€873.18 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Bearing Insert FinishUncoated
Bolt Center Dia.6"
Bolt Size1/2"
Bore Dia.2 3/16"
Bore ShapeStraight
Centerline To Front Face1.813"
Collar Outer Diameter3 5/8"
Duty/seriesStandard
End CapNo
ExpansionNon Expansion Bearing Fixed
Foot Height0.563"
Grease Fitting Thread Size1/8"
Grease Fitting Thread TypeNPT
Housing ColorGray
Housing ConstructionSplit Two Piece
Housing MaterialCast Iron
Housing Outside Diameter7 1/8"
Housing StyleFlange Block
Housing TypeFlange, Piloted
Htc8483.20.4080
Inner Race Heat Treat MethodCase Carburized Inner Ring
Inner Race Length3 1/8"
Insert MaterialSteel
Insert Material Grade52100
Insert NumberRCIA-203
Internal ClearanceStandard
Locking TypeCollar Mount
Lubrication TypeLithium, EP, NLGI#2
Max. Operating Temperature220°F
Max. Speed2500 RPM
Measure UnitsInch
Misalignment Capability-3° to +3°
Misalignment TypeStatic Only
Outer Ring Land ProfileStandard
Overall Length7 1/8"
Overall Width1 11/16"
Pilot ConfigurationWith Pilot
Pilot Diameter5"
PlatformRPB Series
Replaceable InsertYes
Retainer MaterialSteel
Rolling ElementTapered Roller
Seal TypeFelt Labyrinth Seal
SeriesRFPA

Shipping Info:

Ship weight (kg) 6.525
Ship height (cm)18.42
Ship length (cm)18.42
Ship width (cm)10.8
