SEALMASTER ER-38T | BE9VEV

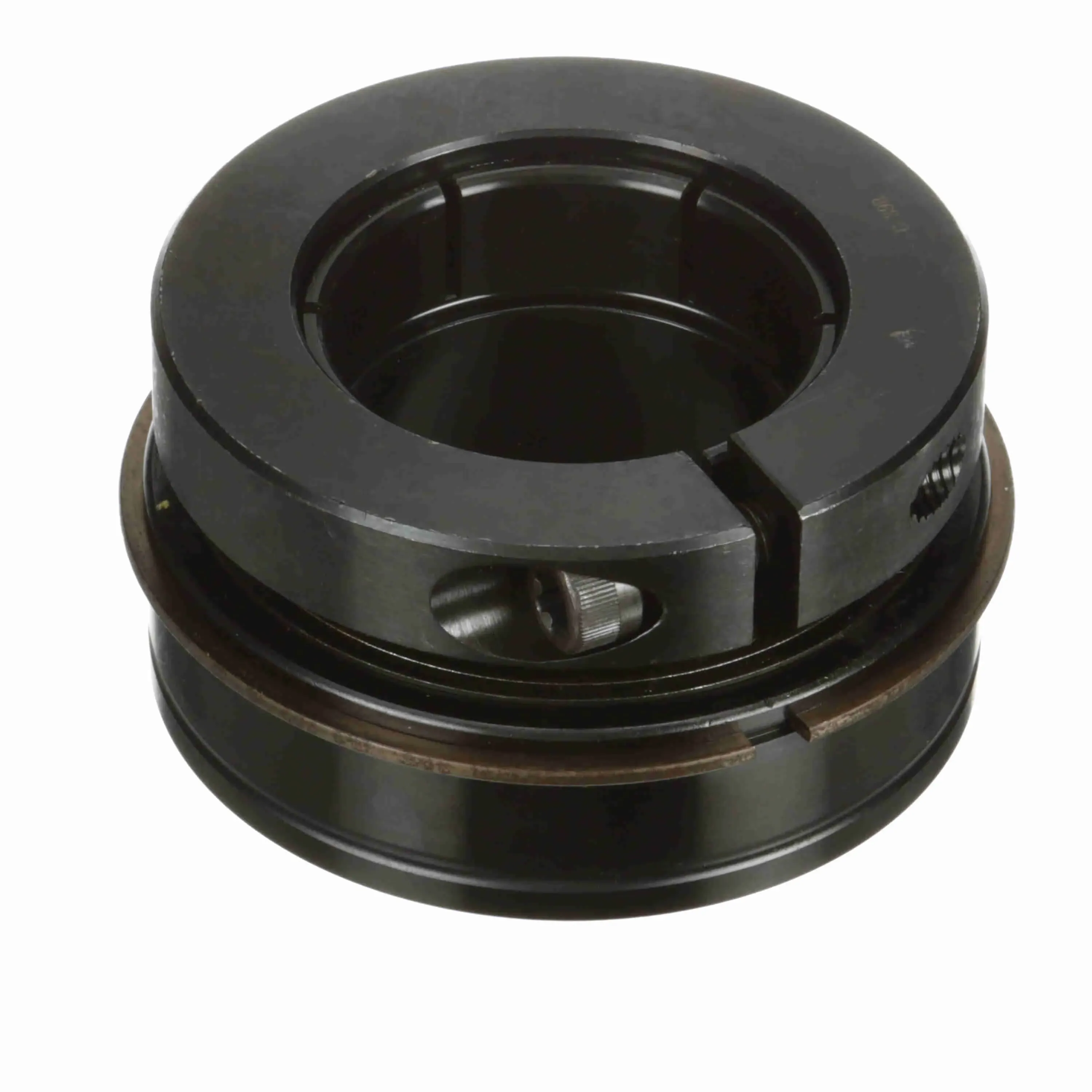

SEALMASTER ER-38T Ball Insert Bearing, Cylindrical Bore, 2-3/8 Inch Inside Dia.

Item: BE9VEV Model: ER-38TCross Ref: 711118
In Stock

Get it by Thursday, Jun 12

€314.38 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Bearing Insert FinishBlack Oxide
Bore Dia.2 3/8"
Bore ShapeStraight
Centerline To Front Face1 5/8"
Collar Outer Diameter4 1/8"
Duty/seriesStandard
Dynamic Radial Load Capacity11789 lbs.
End CapNo
ExpansionNo
Housing TypeInsert ER Style
Htc8482.10.5056
Inner Race Heat Treat MethodZone Hardened
Inner Race Length2 5/8"
Inner Race ProfileWide Inner Ring
Inner Ring Outside Diameter4 1/8"
Insert MaterialSteel
Insert Material FinishBlack Oxide
Insert Material Grade52100
Internal ClearanceStandard
Locking TypeConcentric
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed4100 RPM
Measure UnitsInch
Misalignment TypeStatic Only
Outer Race Od4.331"
Outer Race ProfileCylindrical
Outer Race Width1 1/4"
Outer Ring Land ProfileTapered Lands
Overall Width2 5/8"
PlatformGold Line Ball Bearing
Precision RatingABEC 1
Radial Static Load Capacity8150 lbs.
Radius2/25"
Retainer TypeLand Riding Retainer
Rolling ElementBall Bearing
Seal TypeFelt Labyrinth Seal

Shipping Info:

Ship weight (kg) 2.322
Ship height (cm)12.07
Ship length (cm)6.68
Ship width (cm)12.22
