SCHNEIDER ELECTRIC LUCA12BL Stdcntrlunitcl103Ph 312A 24Vdc, 3 to 12A, 10, 3 Poles, Thermal | CU2CRZ

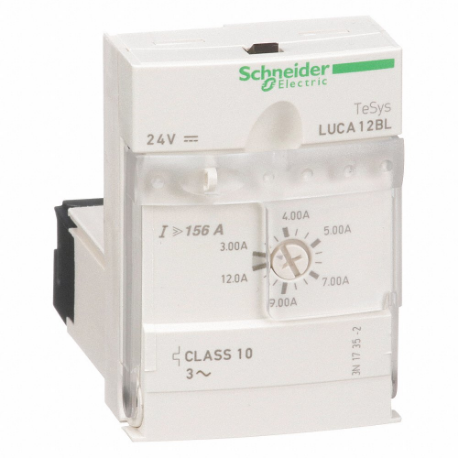

SCHNEIDER ELECTRIC LUCA12BL Overload Module, 24Vdc, 3 to 12A, 10, 3 Poles, Thermal

Item: CU2CRZ Model: LUCA12BLCross Ref: 48P489
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€188.89 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPole
Body Depth2 9/25"
Body Height2 3/5"
Body Width1.77"
Compatible With SeriesTesys Ultra
Current Range3-12A
Frame / Series / Class / CodeClass 10
Kit Required For Retrofit Mtg.No
Maximum Rated Motor Current Adjustment12A
Minumum Rated Motor Amps Adjustment3A
Number Of Poles3
Overall Height2 3/5"
Phase3
Reset TypeManual
Sensing MethodThermal
Separate MountingNo
Terminal Connection TypeWire Leads
Trip Class (overload)10
Use WithMfr. Series LUA1C Contactors
Advanced Control CapabilitiesNo
Coil Voltage24V DC
Control Unit Current Compatibility12/32A
Maximum Operating Temperature158°F
Maximum Overload Current Rating12A
Maximum Voltage Rating690V AC
Minimum Operating Temperature-13°F
Minimum Overload Current Rating3A
Nominal Coil Voltage24V DC
StandardsASEFA, ATEX COMPLIANT, CCC, CE, CSA C22.2 NO 60947-4-1, EAC, EN 60947-6-2, IEC 60947-6-2, REACH, ROHS, UL LISTED 60947-4-1
Trip Class10

Shipping Info:

Ship weight (kg) 0.117
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginFR
