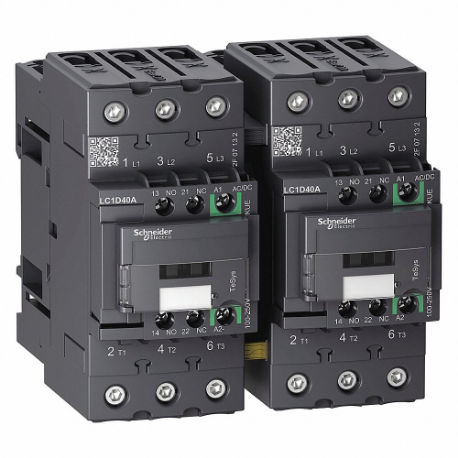

SCHNEIDER ELECTRIC LC2D40AKUE Iec Magnetic Contactor, 100 To 250 VAC/Dc Coil Volts, 1No/1Nc | CU2BML

SCHNEIDER ELECTRIC LC2D40AKUE Iec Magnetic Contactor, 100 To 250 VAC/Dc Coil Volts, 1No/1Nc

Item: CU2BML Model: LC2D40AKUECross Ref: 482Z71
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€535.09 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemIEC Magnetic Contactor
Aux. Contact Configuration1NO/1NC
Coil Volts100-250V AC/DC
Depth4 18/25"
Embedded Surge SuppressorNo
Enclosure Nema RatingNo Enclosure
Frequency50/60 Hz
Full Load Amps-inductive40A
Full Load Amps-resistive60A
Height4 4/5"
Horsepower @ Three Phase (600 Vac)30 hp
Horsepower @ Three Phase - 480v Ac30 hp
Hp @ 1 Phase - 120v3 hp
Hp @ 1 Phase - 240v5 hp
Hp @ 3 Phase - 208v10 hp
Hp @ 3 Phase - 240v10 hp
Hp @ 3 Phase - 480v30 hp
Hp @ 3 Phase - 575v30 hp
Includes Auxiliary ContactsYes
Nema Enclosure MaterialNot Applicable
Number Of Auxillary Contacts2
Number Of Normally Open Main Contacts3
Number Of Poles3
Resistance PropertiesFire Resistant, Insulation Resistant
ReversibleYes
Reversing CapabilityReversing
Terminal Connection TypeScrew Clamp Terminals
Width4.69"
Auxiliary Contacts Included1NO/1NC
Coil Voltage100-250V AC/DC
Contactor StyleIEC
Electrical Operating Durability2000000, 700000
Full Load Current - Inductive40A
Full Load Current - Resistive60A
Horsepower @ Single Phase - 120v Ac3 hp
Horsepower @ Single Phase - 240v Ac5 hp
Horsepower @ Three Phase - 208v Ac10 hp
Horsepower @ Three Phase - 240v Ac10 hp
Horsepower @ Three Phase - 600v Ac30 hp
Integrated Surge SuppressionNo
Ip RatingIP20
Main Power Pole Contact Form3NO
Maximum Operating Temperature140°F
Maximum Voltage Rating690V AC
Mechanical Operating Durability6000000
Minimum Operating Temperature-40°F
Nema Enclosure RatingNo Enclosure
Nominal Coil Voltage @ 60hz120/240V AC
Overall Depth4.72"
Overall Height4 4/5"
Overall Width4.69"
SeriesTeSys Deca
StandardsCCC, CSA, CSA C22.2 NO 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL 60947-4-1, UL LISTED
Wire Termination TypeScrew Clamp

Shipping Info:

Ship weight (kg) 2.0835
Ship height (cm)12.19
Ship length (cm)11.99
Ship width (cm)11.91
Country of OriginFR
