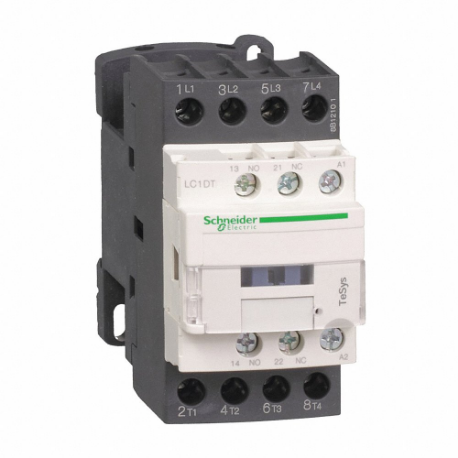

SCHNEIDER ELECTRIC LC1DT32G7 Iec Magnetic Contactor, 120 VAC Coil Volts, 32 A | CU2BNE

SCHNEIDER ELECTRIC LC1DT32G7 Iec Magnetic Contactor, 120 VAC Coil Volts, 32 A

Item: CU2BNE Model: LC1DT32G7Cross Ref: 48N819
In Stock : 66 Units

Get it by Friday, Jun 13

€184.97 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemIEC Magnetic Contactor
ApplicationResistive Load
Aux. Contact Configuration1NO/1NC
Coil Volts120V AC
Depth3.9"
Embedded Surge SuppressorNo
Enclosure Nema RatingNo Enclosure
FeaturesWithout Built-In Suppressor Module
Frequency50/60 Hz
Full Load Amps-inductive32A
Full Load Amps-resistive32A
Height3.58"
Impulse Withstand Voltage6 kV
Includes Auxiliary ContactsYes
Includes Protective CoverYes
Inrush Va70 VA
Mounts OnPlate, Rail
Non-overlap Time1.5 ms
Number Of Auxillary Contacts2
Number Of Normally Open Main Contacts4
Number Of Poles4
Resistance PropertiesFire Resistant, Insulation Resistant
ReversibleNo
Terminal Connection TypeScrew Clamp Terminals
Width1.77"
Auxiliary Contacts Included1NO/1NC
Coil Voltage120V AC
Contactor StyleIEC
Electrical Operating Durability1000000
Full Load Current - Inductive32A
Integrated Surge SuppressionNo
Ip RatingIP20
Main Power Pole Contact Form4NO
Maximum Operating Temperature140°F
Maximum Voltage Rating690V AC
Mechanical Operating Durability15000000
Minimum Operating Temperature-40°F
Nema Enclosure RatingNo Enclosure
Nominal Coil Voltage @ 60hz120V AC
Overall Depth3.9"
Overall Height3.58"
Overall Width1.77"
Reversing CapabilityNon-Reversing
SeriesTeSys Deca
StandardsBV, CCC, CSA, CSA C22.2 NO 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL LISTED
Wire Termination TypeScrew Clamp

Shipping Info:

Ship weight (kg) 0.4545
Ship height (cm)9.09
Ship length (cm)9.91
Ship width (cm)4.5
Country of OriginFR
