SCHNEIDER ELECTRIC LC1D123BD Iec Magnetic Contactor, 24 V Dc Coil Volts, 12 A | CU2BPU

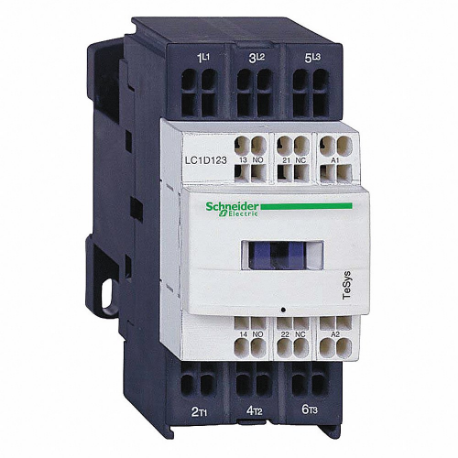

SCHNEIDER ELECTRIC LC1D123BD Iec Magnetic Contactor

Item: CU2BPU Model: LC1D123BDCross Ref: 48N827
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€232.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemIEC Magnetic Contactor
ApplicationMotor Control, Resistive Load
Aux. Contact Configuration1NO/1NC
Coil Volts24V DC
Depth3.74"
Embedded Surge SuppressorYes
Enclosure Nema RatingNo Enclosure
FeaturesWith Integral Suppression Device
Frequency50/60 Hz
Full Load Amps-inductive12A
Full Load Amps-resistive16A
Height3.9"
Horsepower @ Three Phase (600 Vac)10 hp
Horsepower @ Three Phase - 480v Ac7 1/2 hp
Hp @ 1 Phase - 120v1/2 hp
Hp @ 1 Phase - 240v2 hp
Hp @ 3 Phase - 208v3 hp
Hp @ 3 Phase - 240v3 hp
Hp @ 3 Phase - 480v7 1/2 hp
Hp @ 3 Phase - 575v10 hp
Impulse Withstand Voltage6 kV
Includes Auxiliary ContactsYes
Includes Protective CoverYes
Mounts OnPlate, Rail
Non-overlap Time1.5 ms
Number Of Auxillary Contacts2
Number Of Normally Open Main Contacts3
Number Of Poles3
Resistance PropertiesFire Resistant, Insulation Resistant
ReversibleNo
Terminal Connection TypeSpring Loaded Terminals
Width1.77"
Auxiliary Contacts Included1NO/1NC
Coil Voltage24V DC
Contactor StyleIEC
Electrical Operating Durability2000000, 800000
Full Load Current - Inductive12A
Full Load Current - Resistive16A
Horsepower @ Single Phase - 120v Ac1/2 hp
Horsepower @ Single Phase - 240v Ac2 hp
Horsepower @ Three Phase - 208v Ac3 hp
Horsepower @ Three Phase - 240v Ac3 hp
Horsepower @ Three Phase - 600v Ac10 hp
Integrated Surge SuppressionYes
Ip RatingIP20
Main Power Pole Contact Form3NO
Maximum Operating Temperature140°F
Maximum Voltage Rating690V AC
Mechanical Operating Durability30000000
Minimum Operating Temperature-40°F
Nema Enclosure RatingNo Enclosure
Nominal Coil Voltage @ 60hz24V DC
Overall Depth3.74"
Overall Height3.9"
Overall Width1.77"
PhaseThree
Reversing CapabilityNon-Reversing
SeriesTeSys Deca
StandardsBV, CCC, CSA, CSA C22.2 NO 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL LISTED
Wire Termination TypeSpring Loaded

Shipping Info:

Ship weight (kg) 0.54
Ship height (cm)9.91
Ship length (cm)9.5
Ship width (cm)4.5
Country of OriginID
