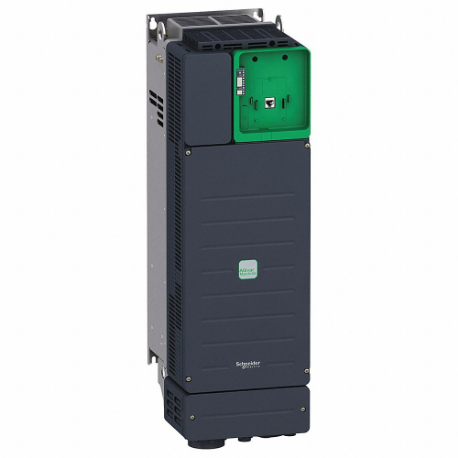

SCHNEIDER ELECTRIC ATV340D37N4E Variable Frequency Drive, 480VAC, 60 hp Max Output Power, NEMA 1, No Bypass

Item: CU2ETN Model: ATV340D37N4ECross Ref: 55WR81
In Stock

Get it by Tuesday, Jun 17

€10,058.62 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemVariable Frequency Drive
Adjustable Acceleration Time0.01 sec. to 9999 sec.
Adjustable Deceleration Time0.01 sec. to 9999 sec.
ApplicationIndustrial Process And Utilities
Brake Chopper IncludedYes
Bypass IncludedNo
ColorBlack
Control MethodConstant Torque Standard, Optimized Torque Mode, Variable Torque Standard
Depth10.31"
Digital ReadoutNo
Display TypeNone
DisplaysNone
Dynamic BrakingNo
EnclosureOpen
Enclosure RatingNEMA 1
Enclosure TypeOpen
Ethernet Port IncludedYes
Height25.98"
Input Frequency50/60 Hz
Input Phase3
Input TypeAnalog, Discrete
Input Voltage380-480V AC
Max. Output Amps88A
Max. Output Power60 hp
No. Of Inputs6
Output Frequency0.1-599 Hz
Output Phase3
Output Power60 hp
Output TypeAnalog, Discrete
Output Voltage323-528V AC
Overall Depth10 3/8"
Overall Height26"
Overall Width8 3/8"
SeriesAltivar Machine ATV340 Series
Start/stop ControlProgrammable
StyleEthernet
Torque ApplicationConstant Torque, Variable Torque
Width8.39"
With Bypass / No BypassNo Bypass
With Line Contactor / No Line ContactorWith Line Contactor
Input Phase Ac3
Input Voltage Range380-480V AC
Key Pad LockoutNone
Maximum Output Current88A
Maximum Output Power60 hp
Number Of Inputs2 Analog, 1 Discrete, 3 Relay
Number Of Outputs(3) Analog, (8) Discrete
Output Frequency Range0.1-599 Hz
Output Phase Ac3
Output Voltage Range323-528V AC
ProtectionBreak on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short circuit between motor phase and earth, Short circuit between motor phases, Thermal protection
StandardsEN/IEC 61800-3, ENVIRONMENT 1 CATEGORY C2 EN/IEC 61800-3, ENVIRONMENT 2 CATEGORY C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1

Shipping Info:

Ship weight (kg) 28.4715
Ship height (cm)66.04
Ship length (cm)26.35
Ship width (cm)21.27
Country of OriginCN
