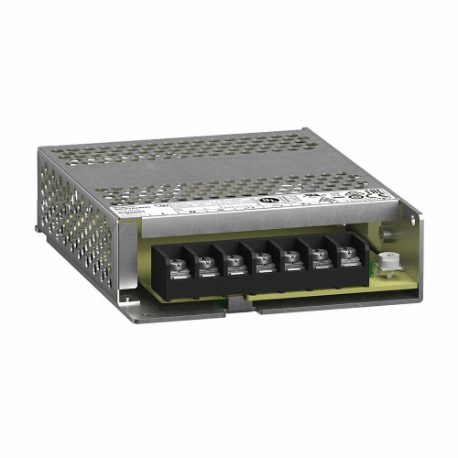

SCHNEIDER ELECTRIC ABLP1A24045 Force, 100 to 240 VAC, Single, 24 VDC, 100W, 4.5, Panel | CU2CLR

SCHNEIDER ELECTRIC ABLP1A24045 Force, 100 to 240 VAC, Single, 24 VDC, 100W, 4.5, Panel

Item: CU2CLR Model: ABLP1A24045Cross Ref: 787DL0
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€129.63 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDC Power Supply
Case MaterialAluminum
Depth129 mm
FeaturesEfficiency 88% At 230 V Ac, Green Premium Product, Integrated Fuse, Mercury Free, Parallel And Serial Output Coupling, Relative Humidity 95% Without Condensation
Frequency50-60 Hz
Height30 mm
Hold Up TimeGreater Than 20 ms At 115V AC, Greater Than 40 ms At 230V AC
MountingPanel
Nema RatingNot Applicable
Operating Temp. Range-30°C to +70°C
Output Amps4.5A
Output Voltage24V DC
Power Rating100 W
StyleSwitching
Width97 mm
Current - Output4.17A
Housing MaterialAluminum
Input Frequency - Maximuim60 Hz
Input Frequency - Minimum50 Hz
Input Frequency - Nominal50/60 Hz
Input Voltage100-240V AC
Ip RatingIP10
Manufacturer Warranty18 Months
Maximum Efficiency @ 230v Ac89%
Mean Time Between Failures (mtbf)700000 hrs.
Operating Temperature - Maximum158°F
Operating Temperature - Minimum-22°F
Output Noise - Maximum150 mV
Output Power - Rated100 W
Output Voltage - Minimum21.6V DC
Output Voltage - Nominal24V DC
Overall Depth5.08"
Overall Height1.18"
Overall Width3.82"
PhaseSingle
Power Supply StyleSwitching
SeriesABL Series
StandardsCB SCHEME, CE, CSA C22.2 NO. 61010-1, CSA C22.2 NO. 61010-2-201, CSA C22.2 NO. 62368-1, CULUS, EAC, EN 61000-3-3, EN 61010-2-201, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1
Status IndicatorGreen LED
Wire Connection TypeScrew Terminals
Wire Size - Maximum14 AWG
Wire Size - Minimum18 AWG

Shipping Info:

Ship weight (kg) 0.4167
Ship height (cm)3
Ship length (cm)12.9
Ship width (cm)9.7
Country of OriginCN

Product Variants

ProductModelMountingCase MaterialStyleOperating Temp. RangeNema RatingPrice
SCHNEIDER ELECTRIC ABLS1A24031 Power Supply, 120 To 375 V DC/85 To 264 V AC, Single, 24V DC, 75 W, 3.13 | CU2CTY ABLS1A24031Din RailPlastic CaseSwitching--€189.69
